M18 360 degree LED view and Short body NPN NO flush inductive proximity switch sensor
- 100000 Piece / Pieces per Month
- Shenzhen
- Credit Card
You May Like
-
Dia 5mm small round shield inductive proximity switch with CE
-
M8 8*30mm short body shield proximity switch
-
M8 short body 12-24vdc PNP proximity sensor for sales
-
M18 360 degree LED View DC10-30V PNP Non-shield proximity sensor
-
M8*30mm shield PNP Proximity Sensor with CE
-
F&C M12 Full metal proximity sensor
Product Details
Place of Origin | Hunan, China | Brand Name | F&C | |
Model Number | F3C-18ES05-NR2M | Usage | Position Sensor | |
Theory | Inductance Sensor | Output | Other, Switching Transducer, NPN NO |
Product Description
New Standards, New Look ,New Features
12-24V DC inductive proximity switch sensors
Advise your actual demand, we will provide solutions for you!
F&C Proximity Switch Sensor Feature:
1.Non-touch detection mode, no abrasion , high reliabity
2.360 degree LED Indicator
3.Built-in amplifier,
4.Housing material optional Stainless steel, Nickel-copper alloy,
5.Complete rang of specification from M8 to M30
6.Cable and Connector connection optional
7.Circuit protection:Short-Circuit protection, Polar protection.
8. Fast response speed 0.1ms
9.Resistant bent tail end can well protect outlet location.

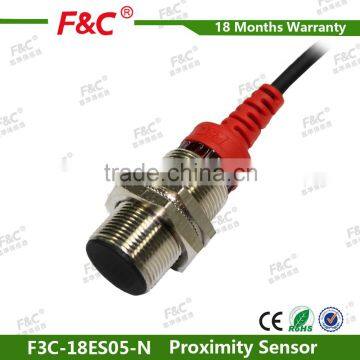

Product Picture for inductive proximity switch sensor of F3C-18ES05-N R2M
More Product
Type | Standard Head | Short Head | ||
Mounting | Flush | Non-Flush | Flush | Non-Flush |
Sense Distance | 1mm | 2mm | 1mm | 2mm |
Output NPN NO | F3C-08KS01-NR2M | F3C-08KN02-NR2M | F3C-08ES01-NR2M | F3C-08EN02-NR2M |
Output NPN NC | F3C-08KS01-N2R2M | F3C-08KN02-N2R2M | F3C-08ES01-N2R2M | F3C-08EN02-N2R2M |
Output PNP NO | F3C-08KS01-PR2M | F3C-08KN02-PR2M | F3C-08ES01-PR2M | F3C-08EN02-PR2M |
Output PNP NC | F3C-08KS01-P2R2M | F3C-08KN02-P2R2M | F3C-08ES01-P2R2M | F3C-08EN02-P2R2M |
Sensing Object | 8×8×1(iron,metal) | |||
Response Frequency | 1000HZ | |||
Hysteresis | within 10% of sensing distance | |||
Operating Voltage | 12~24V DC | |||
Consumption Current | <8mA (No-load) | |||
Load Current | DC:24V 100mA Max | |||
Leakage Current | <0.01mA | |||
Operating Temperature | -25~70℃ | |||
Material | PBT and SUS304 | |||
Connection | dia3.0*2M/3-wires | |||
Certificate | CE | |||
Protection Degree | IP67 | |||
Polarity Protection | Yes | |||
Short Circuit Protection | Yes |
1.Prompt reply to our customer, we have to reply all the email within 24hrs
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
We will ship our product aboard with standard export package.
For small Qty, We will Ship our product to you by express. For mass production , We will ship our product to you by Air or sea.
F&C Sensing Technology is founded in Taiwan in 1993. Establish its Dongguan factory in 2006 and Changsha factory in 2013.
F&C Sensing Technology is a leading sensor supplier in China .Our product has been sold to all over the world.Its products cover 14 series and 3000 specification. Our main product include Fiber Optic Sensor, Fiber Optic Amplifier, Fiber Focus Lens, Proximity Switch, Photoelectric switch,Label Sensor, Light Curtain, Laser Alignment, Pressure Sensor, Magnetic Switch, Connector, Laser Sensor, Color Sensor,Rail Power Supply, Solid State Relay.
F&C Technology has been making continuous breakthrough in new technology and new application,. Our Target is “What you need can be found in F&C Sensing Technology”
Note
--------------------------------------------------------------------
1. Customize for cable length, housing material and shape.
2. The above information is only reference.
Welcome to contact with me by cellphone:+86-13809275350 and Skype:lynn_liu123
