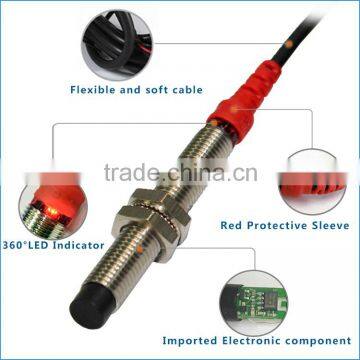

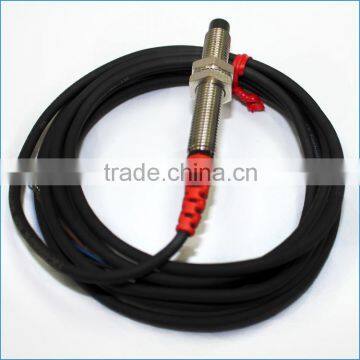

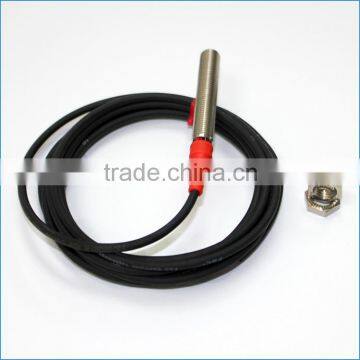

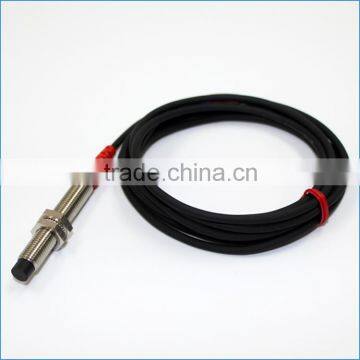

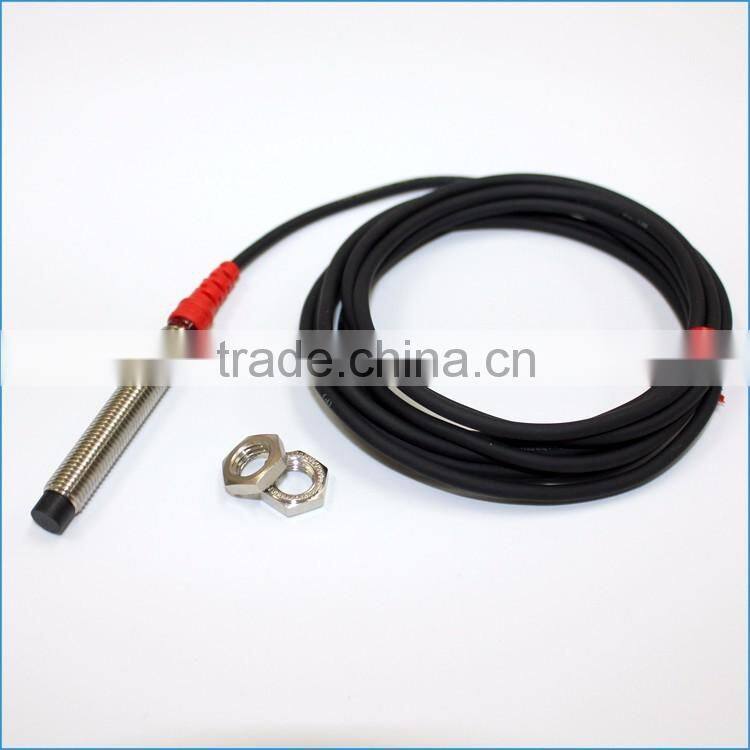

F&C M8 SN 2mm Non-shield 5v dc inductive proximity Sensor with CE
Feature
1.Small Size, Strong Structure, IP67
2.10-30V Power Supply
3.Clear and easy to see LED Indicator
4.Durable Stainless Shell, Strong anti-interference ability.
F&C is a professional sensor manufacturer , Just let us know your demand, we can provide complete solution for your project.
we accept customization of 5V operating Voltage,different frequency, two wires products.
Specification
F&C M8 SN 2mm Non-shield 5v dc inductive proximity Sensor with CE
| Model# | F3C-08KN02-N R2M |
| Output Method | NPN No |
| Mounting Method | Non-Flush |
| Detection Distance | 2mm |
| Hysteresis | Less than 10% of sensing distance |
| Standard Sensing Object | 8*8(Iron) |
| Operating Voltage | 5VDC |
| Current Consumption | Less than 8mA (No Load) |
| Load current | 100mA Max at 24 VDC |
| Residual Voltage | Less than 1.5VDC (No Load) |
| Leakage Current | Less than 0.01mA |
| Protection Degree | IP67 |
| Operating Temperature | -25℃-70℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | PBT and SUS 304 |
| Wire Method | Dia 3mm*2M/-3wires |
**150mm wire with M8 connector or product directly with M8 connector **
Accept OEM for different frequency and 4 wires, 2 wires proximity sensor.

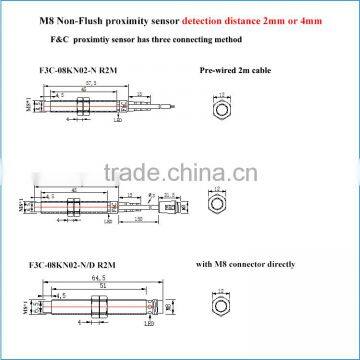

Dimension
F&C M8 SN 2mm Non-shield 5v dc inductive proximity Sensor with CE
Wire drawing
F&C M8 SN 2mm Non-shield 5v dc inductive proximity Sensor with CE
