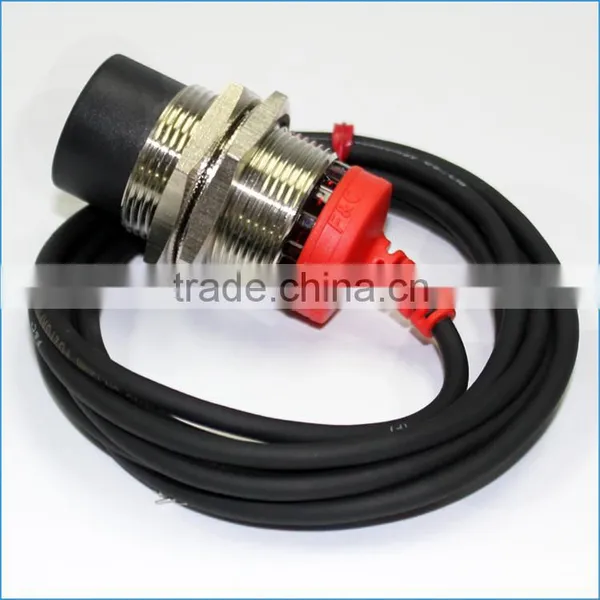

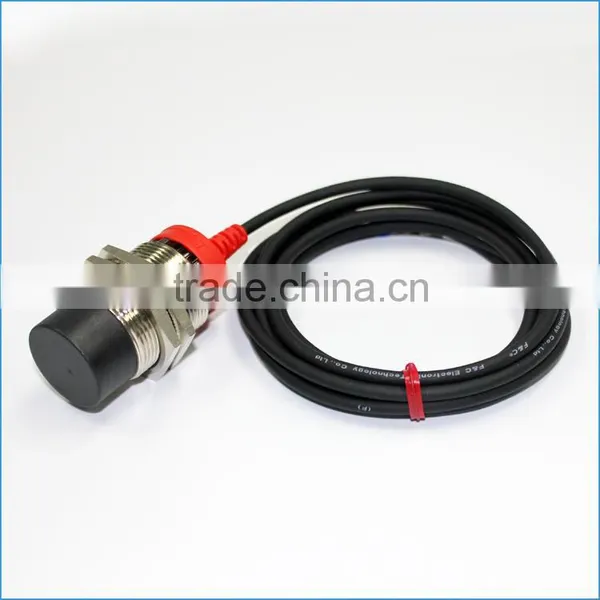

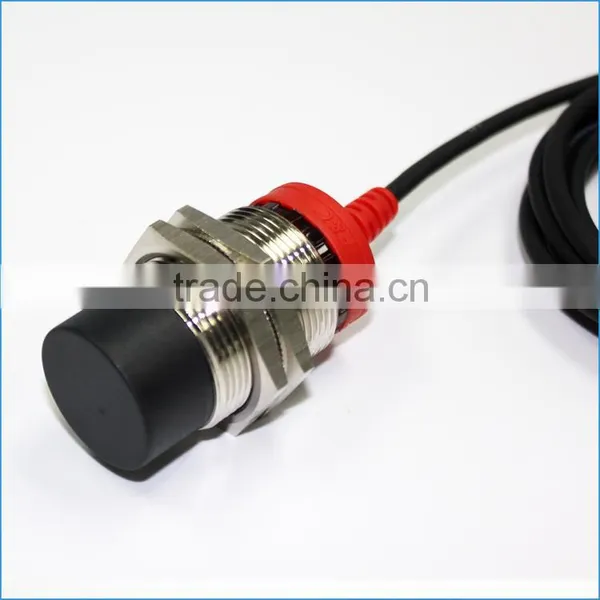

M30 30*45mm short body DC10-30V NPN NO Non-shield proximity sensor
F&C cylinder proximity sensor shown as followings:
|
|
|
|
Dia 4mm Series Proximity sensor 0.8mm sensing distance |
M5 Series Proximity sensor 1mm sensing distance |
M8 series Proximity sensor 1-4mm sensing distance |
|
|
|
|
M12 series proximity sensor 2-8mm sensing distance |
M18 series proximity sensor 5-16mm sensing distance |
M30 series proximity sensor 10-20mm sensing distance |

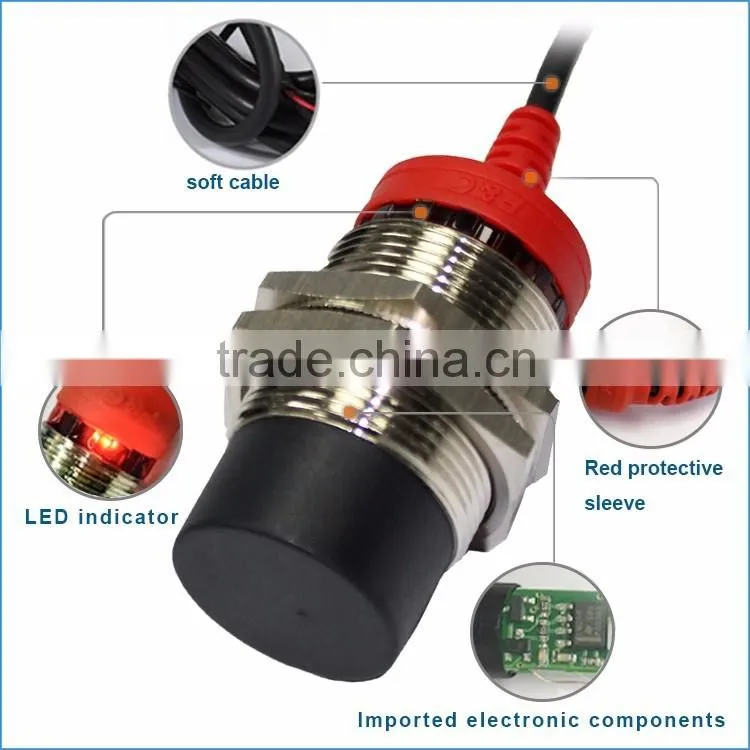

Feature
1.IP67.
2.10-30V Power Supply,Build-in Amplifer
3.Clear and easy to see RED LED Indicator
4.Durable Stainless Shell, Strong anti-interference ability.
5.Can customize 5V operating Voltage,different frequency, two wires products.
Specification
| Model | F3C-30EN15-N R2M |
| Output Method | NPN NO |
| Mounting Method | Non-Flush |
| Detection Distance | 15mm |
| Hysteresis | Less than 10% of sensing distance |
| Standard Sensing Object | 45*45(Iron) |
| Operating Voltage | 12-24 VDC |
| Current Consumption | Less than 8mA (No Load) |
| Load current | 100mA Max at 24 VDC |
| Residual Voltage | Less than 1.5VDC (No Load) |
| Leakage Current | Less than 0.01mA |
| Protection Degree | IP67 |
| Operating Temperature | -25℃-70℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | PBT and Nickelled copper |
| Wire Method | Dia 4mm*2M/-3 wires |

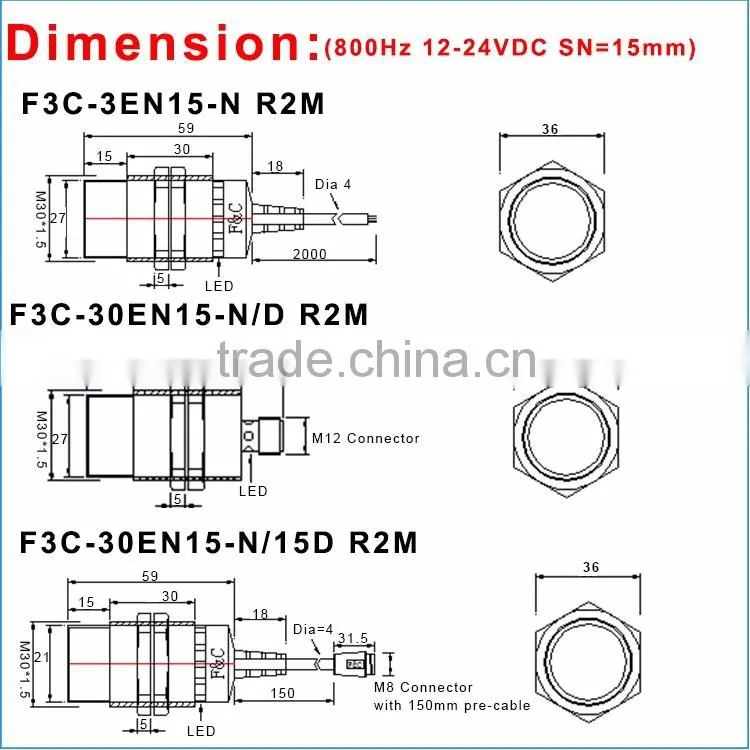

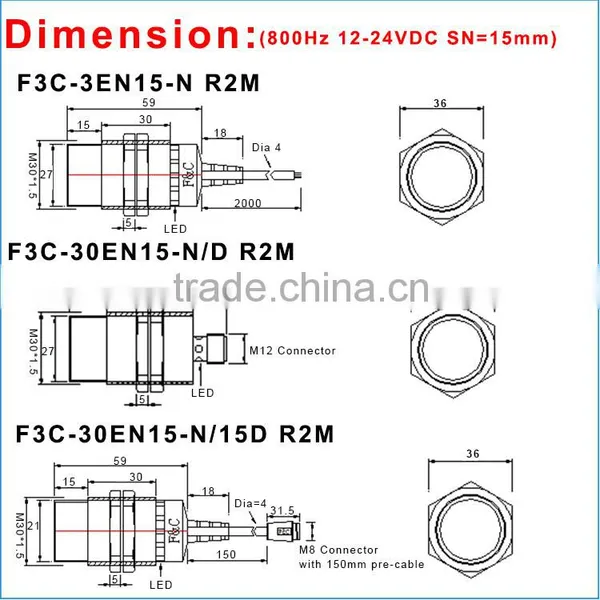

Dimension Drawing

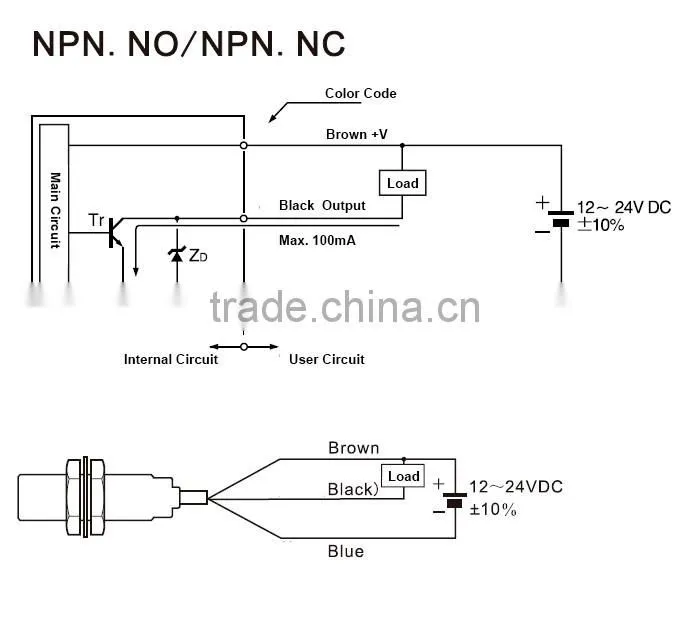

Wire drawing
