Home > Electrical & Electronics > Sensor > Pressure Sensor > FGP37S Series Digital Display Pressure Switches, Air Pressure Sensors or Liquid Pressure Sensing, Full Metal Housing.

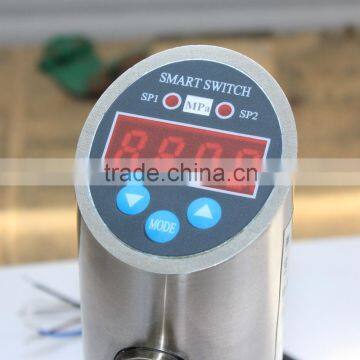

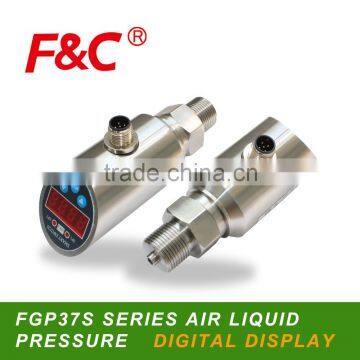

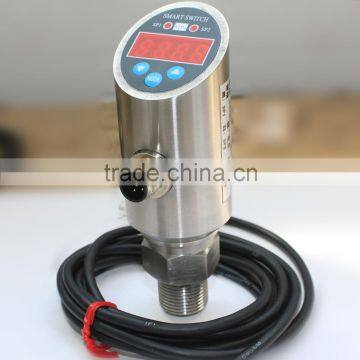

FGP37S Series Digital Display Pressure Switches, Air Pressure Sensors or Liquid Pressure Sensing, Full Metal Housing.
US$ 30 - 40
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
FGP37S series
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
F&C FKP60 Series Three-color Dual Digital LCD Display Pressure SensorUS$ 20 - 30MOQ: 1 Piece -
F&C Three-color Dual Digital Display Positive Air Pressure Sensor for SalesUS$ 20 - 40MOQ: 1 Piece
-
FKP60 Series Digital Display Pressure Switches, Air Pressure Sensors for Three Output CircuitUS$ 30 - 40MOQ: 5 Pieces
-
Digital Positive Air Pressure Sensor, Analog Voltage OutputUS$ 22.73 - 34.09MOQ: 1 Piece
-
F&C FKP60 Series Three-color Digital LCD Display Gas Pressure SensorUS$ 20 - 30MOQ: 1 Piece
Place of Origin
Hunan, China
Brand Name
F&C
Model Number
FGP37S series
Usage
Pressure Sensor
Theory
Other, Air pressure
Output
Switching Transducer
Product Description
• The pressure of gas, liquid pressure measurement;
• PNP switch, voltage and current output is optional;
• peak pressure, according to the range zoom function, PNP switch point set, support switching delay;
• OLED illuminated LCD display;
• 180 degrees, the instrument body rotate 330 degrees, support unit switch display;
• PNP switch, voltage and current output is optional;
• peak pressure, according to the range zoom function, PNP switch point set, support switching delay;
• OLED illuminated LCD display;
• 180 degrees, the instrument body rotate 330 degrees, support unit switch display;
| model | FGP37S-?-F20 | FGP37M-?-F20 | FGP37L-?-F20 | |||
| Pressure range | 0 ~ +1MPa | 0 ~ +10MPa | 0 ~ +40MPa | |||
| Set pressure range | 0 ~ +1MKPa | 0 ~ +10MPa | 0 ~ +40MPa | |||
| Resistance to pressure | 100MPa | 100MPa | 100MPa | |||
| Suitable applications | The air/liquid, non corrosive, not combustible | |||||
| Power supply voltage | 12 to 24 VDC (below the crest value plus or minus 10%) | |||||
| Current consumption | 24V 25mA MAX, 12v 45mA MAX | |||||
| Comparing output | Analog 0 ~ 5 v DC voltage / 0 ~ 10 v DC can choose, current analog 0 ~ 20 ma / 4 ~ 20 ma can choose; | |||||
| Repeat accuracy | ±0.5%F. S | |||||
| Reaction time | <10ms | |||||
| Long term stability | Plus or minus 0.3% FS/year | |||||
| Measuring range (Mpa) | 0.1, 0.35, 0.7, 0.1, 0.35, 7, 10, 25, 40, 60 | |||||
| Zoom range | 25 % FS - 100% FS | |||||
| vibration | within 10g/10Hz...500Hz | |||||
| collision | within 50g/11ms | |||||
| Switch delay | 0.00s~99.99s | |||||
| Resistance environment | Protection grade | IP65 | ||||
| Surrounding temperature | Save: - 30 to 70 ℃ (no water and no freezing conditions) | |||||
| Surrounding humidity | Movement and save: 0 ~ 85% RH (no water dew) | |||||
| Temperature characteristic | ±1% F.S (25℃) | |||||
| Material | Case: stainless steel Display panel: PMMA 17 - four thirds sensor chip: 16 l Electrical connector: M12 round plug |
|||||
| Standard | Terminal 2.0 m, specifications, packing box | |||||

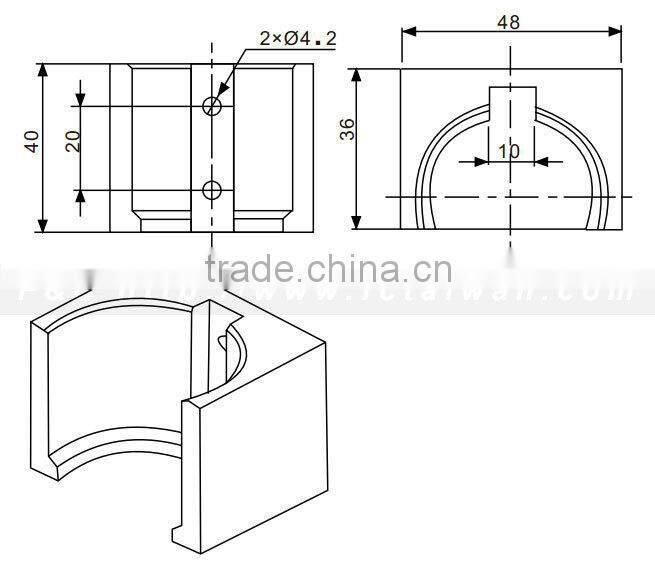

| optional | Mounting bracket (1) | |||||
Diagram
