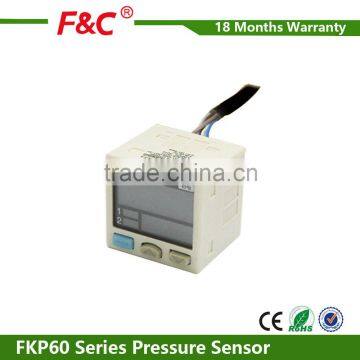

F&C FKP60 series three-color dual digital LCD display pressure sensor
Feature
1.Three-color dual digital LCD display
2.The unit displayed directly on the screen.
3.Two-way switch and one analog output.
4.Using the connector type and outler.
5.Provide positive,negative,and even pressure product.
Specification
| F&C FKP60 series three-color dual digital LCD display pressure sensor | |
| Types | FKP60P-011N-F3 |
| Type of pressure | Standard position pressure |
| Rated pressure range | 0Mpa~1.0Mpa |
| Set pressure range | 0Mpa~1.0Mpa |
| Resistance to pressure | 1.5Mpa |
| Applicable gas | Non-corrosive gases |
| Power supply voltage | 12~24VDC±10% |
| Current consumption | 24V 25mA Max 12V 45mA Max |
| Compare output |
NPN.NO.NC output:80mA/24VDC Max PNP.NO.NC output:80mA/24VDC |
| Repeatability | ±0.5%FS |
| Reaction time | 2.5ms,5ms,10ms,25ms,50ms,100ms,250ms,500ms,1000ms,5000ms |
| Analog voltage output |
Positive/negative)output voltage:1.0~5.0VDC(or smaller),zero:1.0V±5%F.S margin:4V±5%F.S linearity of ±1%F.S output impedance:1KΩ Composite pressure)output voltage:1.0~5.0VDC(or smaller),zero:3.0V±5%F.S margin:4V±5%F.S linearity of ±1%F.S output impedance:1KΩ |
| External input | NO |
| Temperature range | Working temperature:0~55°C Storage temperature:-10°C-+60°Cwithout icing or condensation |
| Humidity range | 35%-85% Relative humidity |
| Temperature characteristics | ±1%F.S (25°C) |
| Degree of protection | IP40 |
| Meterial | Shell:Nylon +fiverglass LCD:LCDpropylene pressure port:SUS303 ring:H-NBR switch:Sollicone Rubber |
| Dimensions size | 30*30*25mm (Plastic part)/30*30*43(including connectors) |
| Weight | About 80g (barometer body+user connection port connector) |

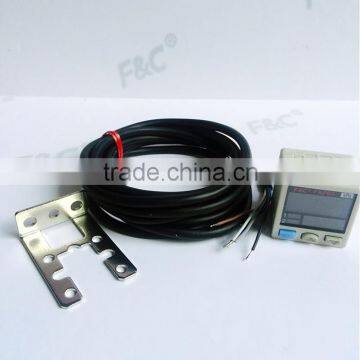

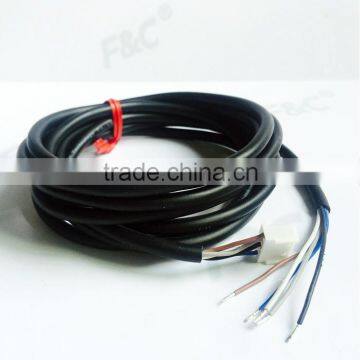

| Standard | Terminal wire 2.0m,1 manual,1 box |
| Option | 1 Mouning bracket |

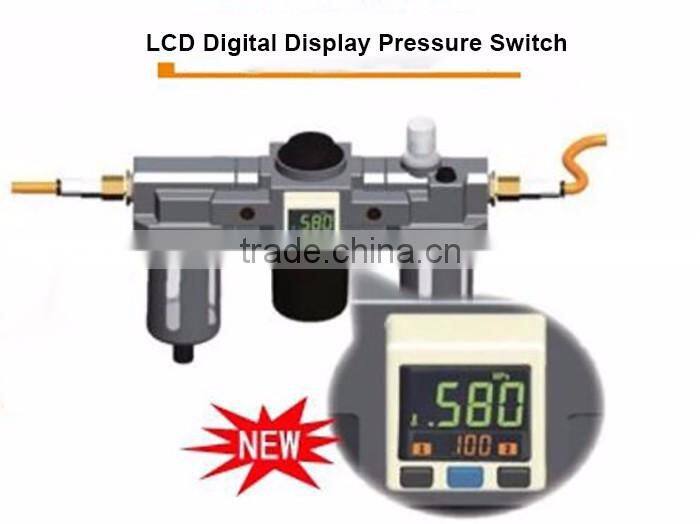

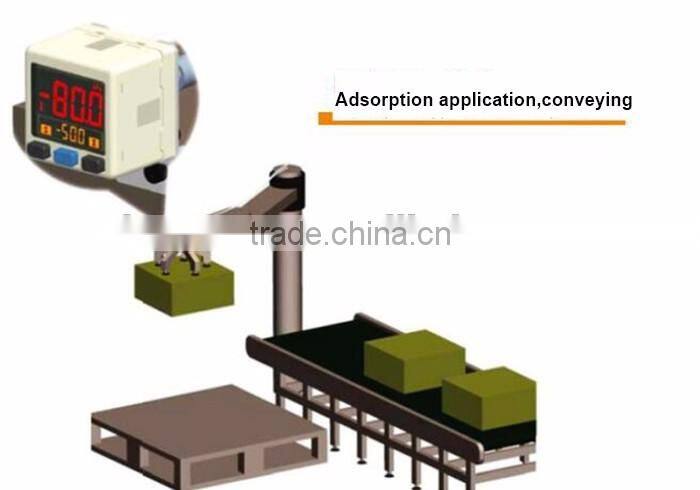

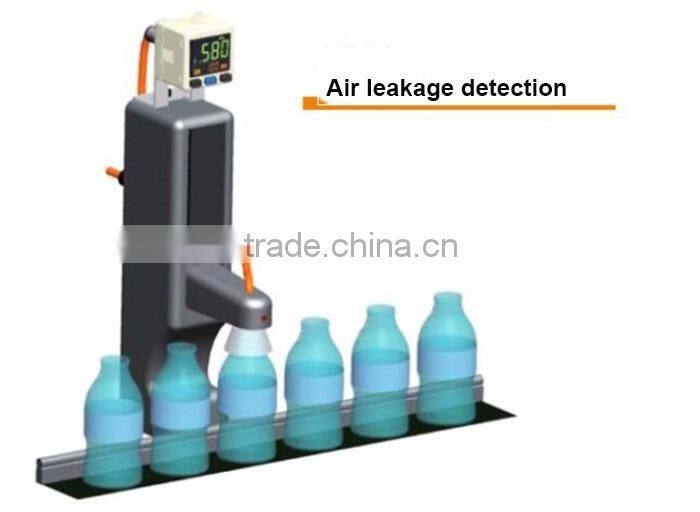

Application

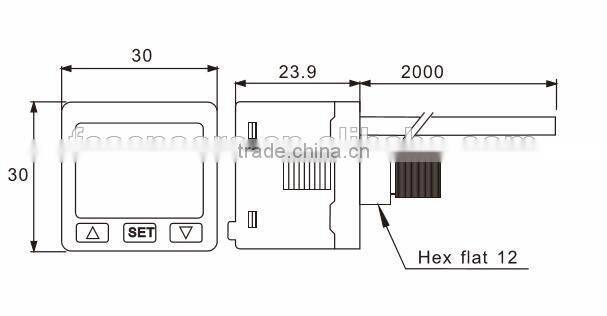

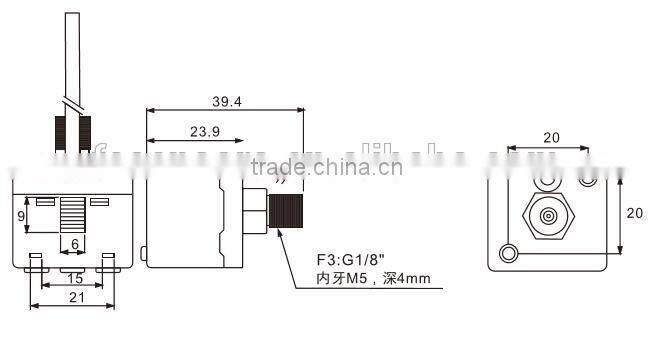

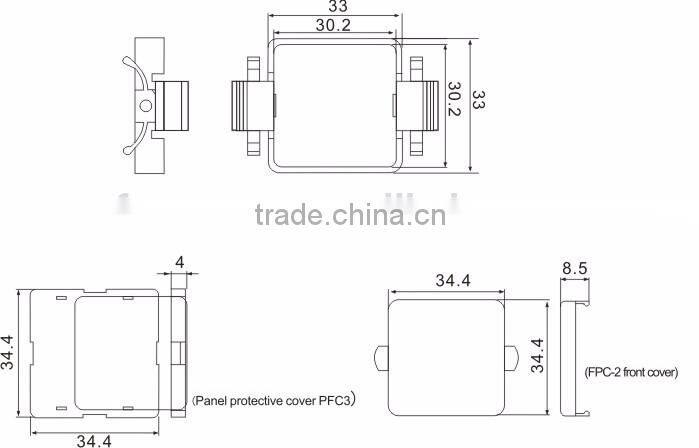

Dimension

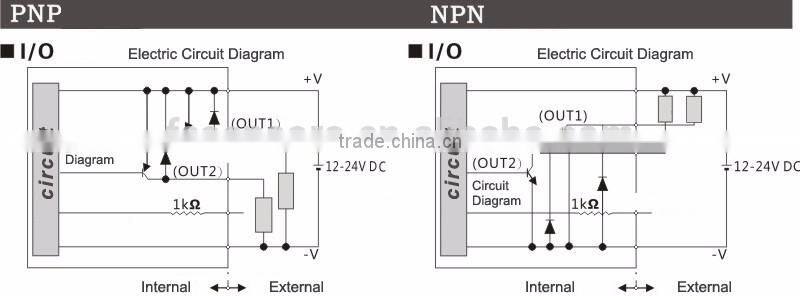

Wiring Drawing
