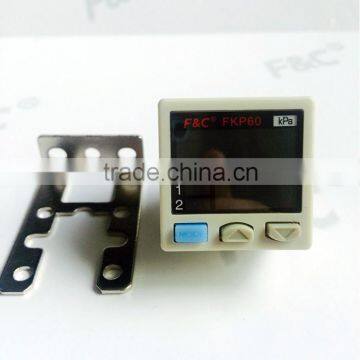

Pressure Sensor to Current Transducer,positive,Leak Testing Quality Choice
US$ 22.73 - 34.09
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
FKP60P-011N-F3
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Vacuum Pressure Sensor,analog Voltage Output,absorption Application,conveyor BeltUS$ 22.73 - 34.09MOQ: 1 Piece -
Gauge Pressure Sensor With Connector,barometric Pressure Switch,suitable for Pressure SensingUS$ 22.73 - 34.09MOQ: 1 Piece
-
FGP Gas Pressure Sensor,Analog Voltage Output,suitable for CylinderUS$ 113.64 - 170MOQ: 1 Piece
-
Oil Pressure Switch ,hydraulic Cylinders,digital DisplayUS$ 113.64 - 170MOQ: 1 Piece
-
Adjustable Hydraulic Pressure Sensor,oil Hydraulic Pump,low Voltage Pressure Switch Quality ChoiceUS$ 113.64 - 170MOQ: 1 Piece
Place of Origin
Hunan, China
Brand Name
F&C
Model Number
FKP60P-011N-F3
Usage
Pressure Sensor
Theory
Current Sensor
Output
Analog Sensor
Feature of FKP60 Series pressure sensor
1.Three-color dual digital LCD display
2.The unit displayed directly on the screen.
3.Two-way switch and one analog output.
4.Using the connector type and outler.
5.Provide positive,negative,and even pressure product.
I can be reached by cellphone:86-15173188970 and Skype:Lulu_Lu1995

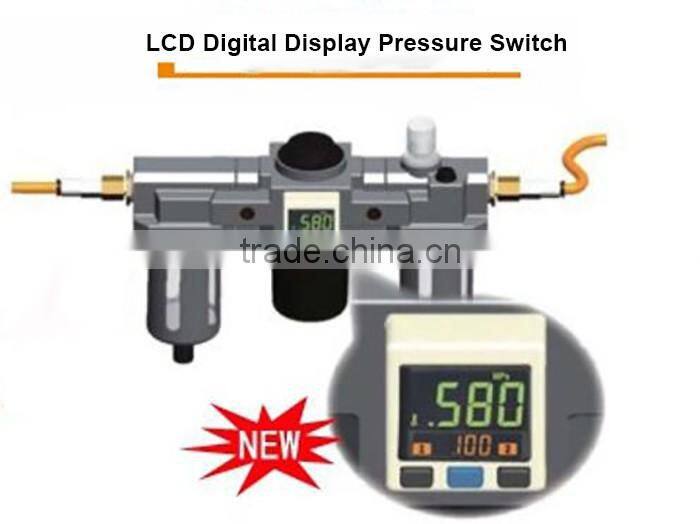

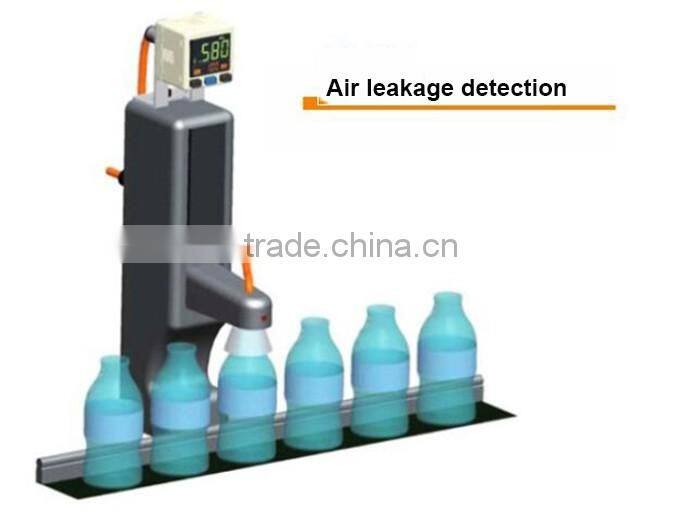

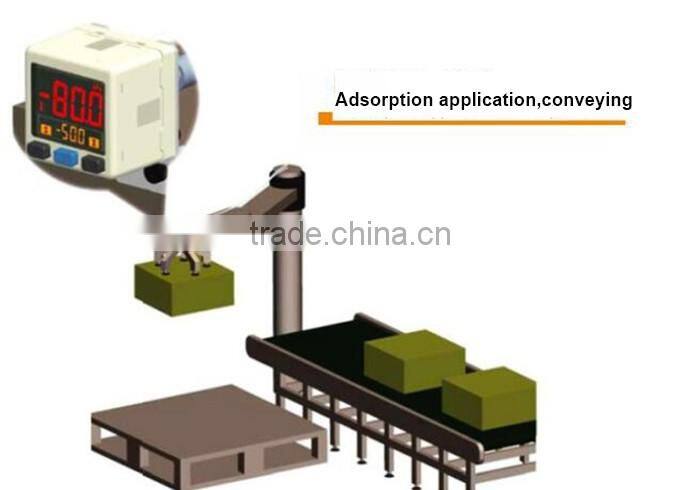

Product Application
Specification
| Types | FKP60P-011N-F3 |
| Type of pressure | Standard position pressure |
| Rated pressure range | 0Mpa~1.0Mpa |
| Set pressure range | 0Mpa~1.0Mpa |
| Resistance to pressure | 1.5Mpa |
| Applicable gas | Non-corrosive gases |
| Power supply voltage | 12~24VDC±10% |
| Current consumption | 24V 25mA Max 12V 45mA Max |
| Compare output | NPN.NO.NC output:80mA/24VDC Max PNP.NO.NC output:80mA/24VDC |
| Repeatability | ±0.5%FS |
| Reaction time | 2.5ms,5ms,10ms,25ms,50ms,100ms,250ms,500ms,1000ms,5000ms |
| Analog voltage output | Positive/negative)output voltage:1.0~5.0VDC(or smaller),zero:1.0V±5%F.S margin:4V±5%F.S linearity of ±1%F.S output impedance:1KΩ Composite pressure)output voltage:1.0~5.0VDC(or smaller),zero:3.0V±5%F.S margin:4V±5%F.S linearity of ±1%F.S output impedance:1KΩ |
| External input | NO |
| Temperature range | Working temperature:0~55°C Storage temperature:-10°C-+60°Cwithout icing or condensation |
| Humidity range | 35%-85% Relative humidity |
| Temperature characteristics | ±1%F.S (25°C) |
| Degree of protection | IP40 |
| Meterial | Shell:Nylon +fiverglass LCD:LCDpropylene pressure port:SUS303 ring:H-NBR switch:Sollicone Rubber |
| Dimensions size | 30*30*25mm (Plastic part)/30*30*43(including connectors) |
| Weight | About 80g (barometer body+user connection port connector) |

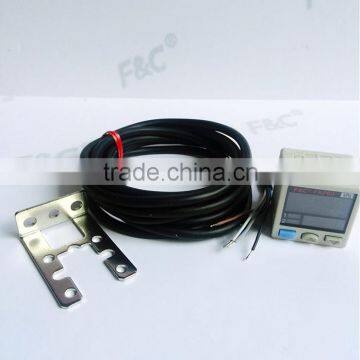

| Standard | Terminal wire 2.0m,1 manual,1 box |
| Option | 1 Mouning bracket |

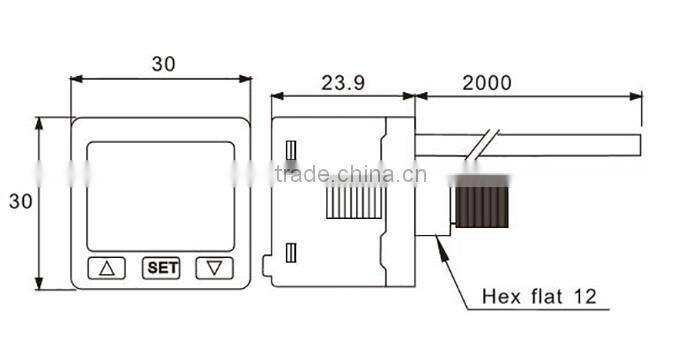

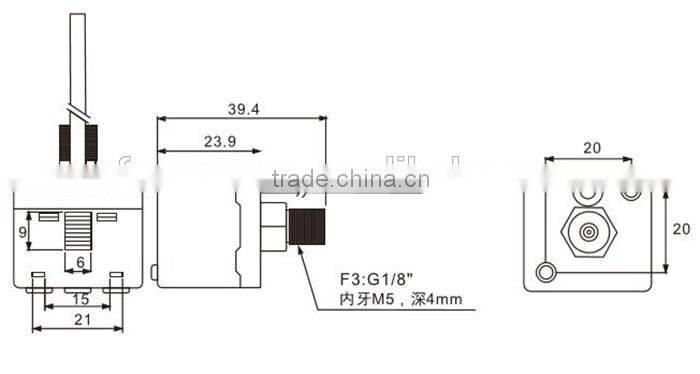

Dimension Drawing
Certifications
Our services
1.Prompt reply to our customer, we have to reply all the email within 24hrs.
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
Packaging&Shipping
1.We will ship our product aboard with standard export package.
2.For small Qty, We will Ship our product to you by express.
3.For mass production , We will ship our product to you by Air or sea.
