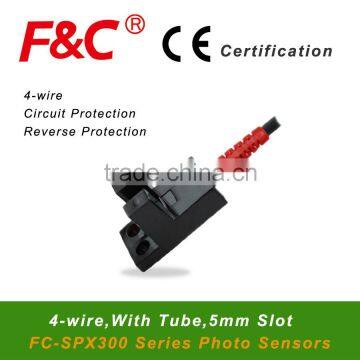

Circuit Protected, Polarity Reverse Protected, 4-wire, High Light LED Photoelectric Sensor, FC-SPX307 series.

FOB Price

USD $3 - $7 / Piece

5 Pieces(Min.Order)

Supply Ability 20000 Box / Boxes per Month
Port Guangzhou Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hunan, China	Brand Name	F&C
Model Number	FC-spx307	Usage	Position Sensor
Theory	Optical Sensor	Output	Switching Transducer

Product Description

PS. These sensors can be connector type which with 150mm cable, cable type with 2m cable.

Models	Detection Mode	Detection Distance	Entry Cable
FC-SPX307P	PNP.NO.NC	5mm	3-wires, cable type
FC-SPX307N	NPN.NO.NC		3-wires, cable type
FC-SPX307P/15D	PNP.NO.NC		M8 with 150mm cable, 3-pins, Connector type.
FC-SPX307N/15D	NPN.NO.NC

Product Description

Emitting light	Red LED:630nm
Operating voltage	DC:10~30VDC±10%(Ripple P-P:10%Max)
Current consumption	15mA Max
Load current	100mA Max at DC 24V
Output type	N=NPN.NO P=PNP.NPN
Protection circuit	Reversed supply ciruit protection,short citcuit protection output
Response time	0.3 ms Max
Insulation resistance	20M Ωmin.(DC500V)
Voltage withstandatility	AC1000V 60Hz for 60 Sec
Operating temperature	-10°C~+45°C(No freezing allowed
Ambient hunidity	35%~95%RH
Storage temperarure	-10°C~+55°C(No freezing allowed )
Storage hunidity	35%~95%RH
Material	ABS
Wiring method	φ2.6×2M/4-wires/φ4.2×2M/3-wires/φ4.2×2M/4-wires
Protection degree	IP66
Weight	Approx.20g, not include cable

Diagram
