Product Details
| Place of Origin | Hunan, China | Brand Name | F&C | |
| Model Number | HRTI-S1000PC R2M | Usage | Position Sensor | |
| Theory | Inductance Sensor | Output | Switching Transducer |
Product Description

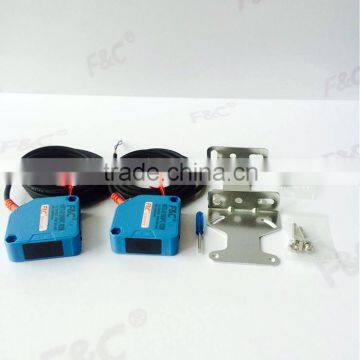

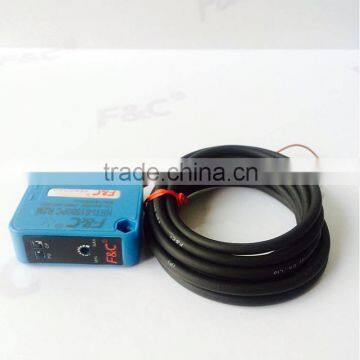

F&C Long distance PNP NO+NC through-beam photoelectric sensor
F&C Has HR, DR18, CR,QR and FPJ series different shape and dimension photoelectric sensor for different installation
Feature
1.Retro-reflective photoelectric sensor detection distance can reach 6m.
2.Through-beam photolectric sensor detection distance can reach 15m.
3.Mannual setting normal open or normal close funcation.
4.Good anti-interference ability.
Specification
| F&C Long distance PNP NO+NC through-beam photoelectric sensor | |
| Model | HRMR-S1000PC R2M |
| Output Method | PNP NO+NC |
| Detection Type | Through-beam |
| Standard Detection Object Size | Dia opaque 5mm |
| Detection Distance | 10m |
| Light Source | 850nm infrared modulated light |
| Operating Voltage | 12-24 VDC |
| Response Time | 0.5ms Max. |
| Current Consumption | 15mA Max. |
| Load current | 100mA Max at 24 VDC |
| Insulation Resistance | 20M Ohm Min. at 500 VDC |
| Dielectric strength | 60 seconds at 1000VAC 60HZ |
| Protection Degree | IP66 |
| Operating Temperature | -10℃-50℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | ABS |
| Wire Method | dia4*2M/-3wires |
| Weight | 107g |
Dimension Drawing

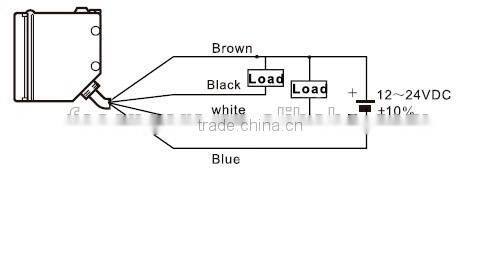

Wire Drawing
About product: All our sensors use high quality material and we accept OEM.
About warranty: We promise replacement if any quality problems are found within 18 months.
About lead time: For sample, 3work days only.
For mass production order, 7 days after deposit.
About price: The most favorable price in the same quality products.
We will ship our product aboard with standard export package.
For small Qty, We will ship our sensor to you by express.
For mass production , We will ship our product to you by Air or sea.
F&C Sensing Technology is founded in Taiwan in 1993. Establish its Dongguan factory in 2006 and move its factory to Changsha in 2013.
F&C Sensing Technology is a leading sensor supplier in China .Our product has been sold to
all over the world.Its products cover 14 series and 3000 specification.
Our main product include Fiber Optic Sensor, Fiber optic lens, Fiber optic Lens, Proximity Sensor,
Photoelectric switch,Label Sensor, Light Curtain, Laser Alignment, Pressure Sensor,
Magnetic Switch, Connector, Laser Sensor, Color Sensor,Rail Power Supply,Solid State Relay.
F&C Technology has been making continuous breakthrough in new technology and new
application. Our Target is “What you need can be found in F&C Sensing Technology”
