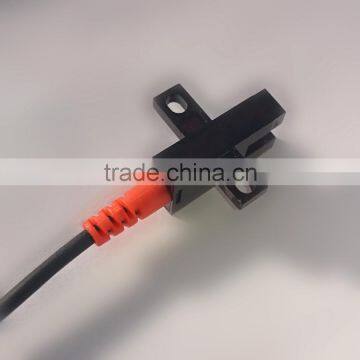

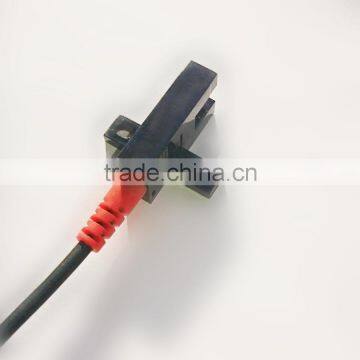

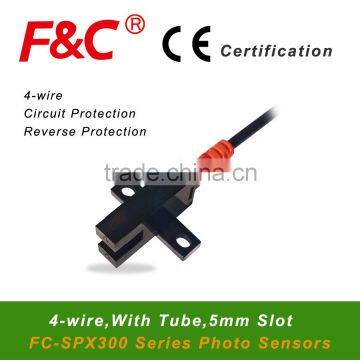

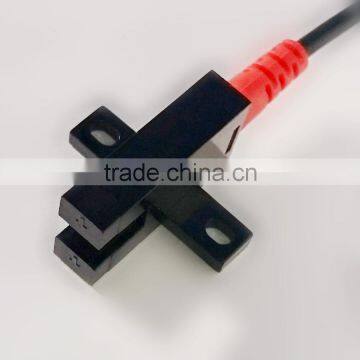

5mm Slot, 4-wire, 2m Cable,12~24VDC Fork Sensor, Can be Offer 5VDC Working Voltage, FC-SPX303 Series.

F&C Sensing Technology (Hunan) Co., Ltd.

US$ 3 - 7 MOQ: 5 Pieces

Key Specifications

Place of Origin:

Hunan, China

Brand Name:

F&C

Model Number:

FC-spx303

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hunan, China

Brand Name F&C

Model Number FC-spx303

Usage Position Sensor

Theory Optical Sensor

Output Switching Transducer

PS. These sensors can be connector type which with 150mm cable, cable type with 2m cable.

Models	Detection Mode	Detection Distance	Entry Cable
FC-SPX303P	PNP.NO.NC	5mm	3-wires, cable type
FC-SPX303N	NPN.NO.NC		3-wires, cable type
FC-SPX303P/15D	PNP.NO.NC		M8 with 150mm cable, 3-pins, Connector type.
FC-SPX303N/15D	NPN.NO.NC

Product Description

Emitting light	Red LED:630nm
Operating voltage	DC:10~30VDC±10%(Ripple P-P:10%Max)
Current consumption	15mA Max
Load current	100mA Max at DC 24V
Output type	N=NPN.NO P=PNP.NPN
Protection circuit	Reversed supply ciruit protection,short citcuit protection output
Response time	0.3 ms Max
Insulation resistance	20M Ωmin.(DC500V)
Voltage withstandatility	AC1000V 60Hz for 60 Sec
Operating temperature	-10°C~+45°C(No freezing allowed
Ambient hunidity	35%~95%RH
Storage temperarure	-10°C~+55°C(No freezing allowed )
Storage hunidity	35%~95%RH
Material	ABS
Wiring method	φ2.6×2M/4-wires/φ4.2×2M/3-wires/φ4.2×2M/4-wires
Protection degree	IP66
Weight	Approx.20g, not include cable
