75 Ohms Antenna With Bnc Connector

FOB Price

US$ 0.2 - 0.3 / Piece

2000 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	DB Connector
Model Number	OPT-BNC-1	Type	Other, BNC, Male to male/female
Application	Other, RF, Adapter(Communication)	Gender	Male

antenna with bnc connector
1.RG59,RG6,RG11.LMR200 BNC connector
2.BNC adapter
3.BNC Male to F male/female
4.ISO9001

75 ohms antenna with bnc connector

Name	BNC connector for RG-6 RG59
Code	Opt-bnc-1
Physical specs
Material		Brass
Plating		Nickel
Plastic bush		plastic
Dimensions (height x diameter)	mm	27x5.5
Weight	kg	0.01
Electrical parameters
Impedance	ohm	75
Frequency range	GHz	0-3
VSWR at 1 GHz		<1.1
Return loss at 1GHz	dB	>30
Screening efficiency at 1GHz	dB	>100
Dongbei manufacture and supply super designed F Connector, BNC Connector. This BNC connector/adapter has been designed to ensure watertightness (after crimping). During compression of the connector a plastic bush is tightly pressed against the sheath of the cable (by putting on cone-shaped brass bush). The plastic material It is UV-proof, and ensures stable physical parameters in very wide temperature range. The metal parts of the connector are made of nickel-plated brass and are corrosion-proof. The way of crimping ensures high mechanical strength, watertightness, and stability of parameters. The compression should be made with the crimping tool:

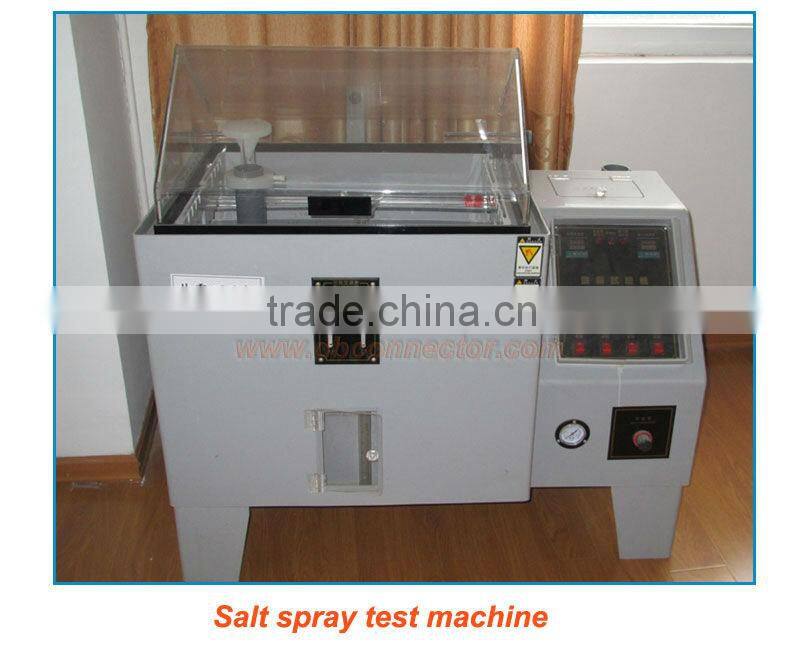

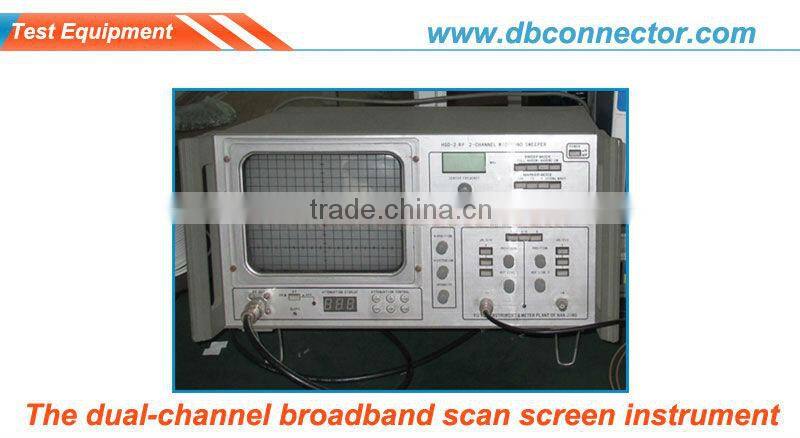

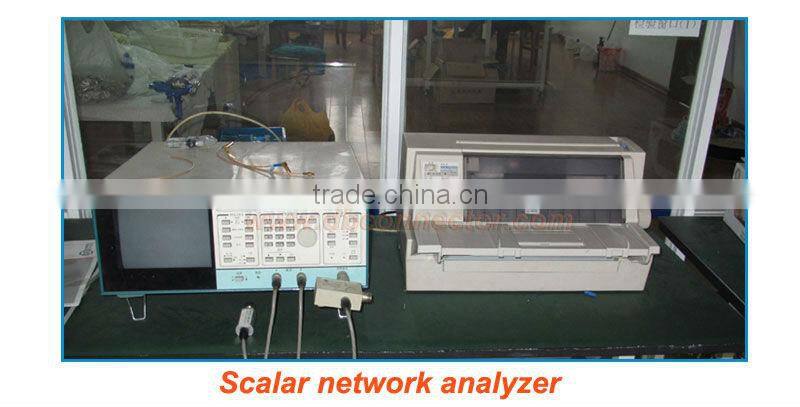

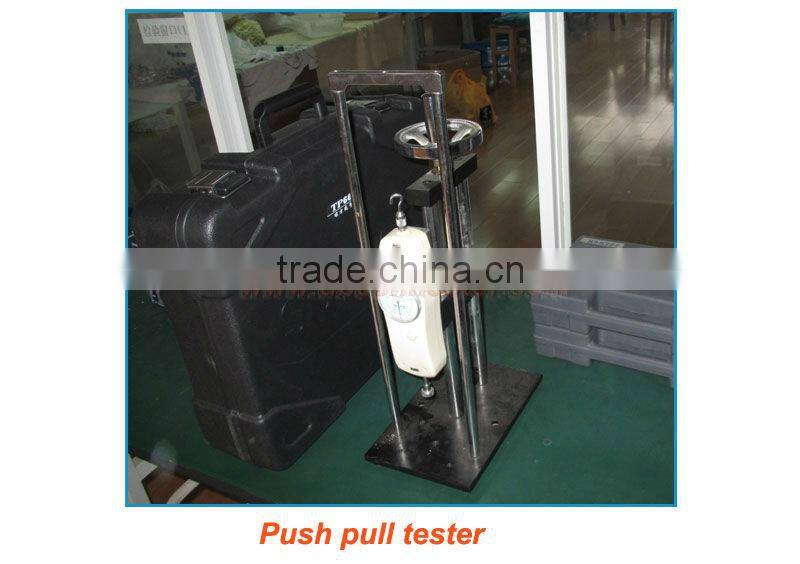

Dongbe QC Team

Donbei QC team consists of professional people to ensure 100% products high quality.

Contact Us

We highly appreciate your any enquiry by email, fax or instant message.

We will reply your email or fax within 12 hours.

Please fell free to call us at any time if there is any questions.

Skype: Helenzhang0616 24H Hotline :0086-18668010692

Transportation

All available shipping ways could be applied, by courier, air or sea.

Appointed shipping company or our own forwarders all could be used in shipment.

Full-way tracking the cargos for you before the goods arrive.

Yangzhou Dongbei Electronic Equipment Factory: Contact nameDonald Chen
Chat Now; Phone86-571-81110240; Address707-708room , zhongxun building ,Xihu district, Yangzhou, Jiangsu
