Dieletric Self-supporting Aerial ADSS Fiber Optic Cable

Specifications

Aerial ADSS Fiber Optic Cable
1Aramid yarn
2Strong electric field/much thunder field
3.Large-span situation
4.ADSS OFC Cable

Dieletric Self-supporting Aerial ADSS Fiber Optic Cable

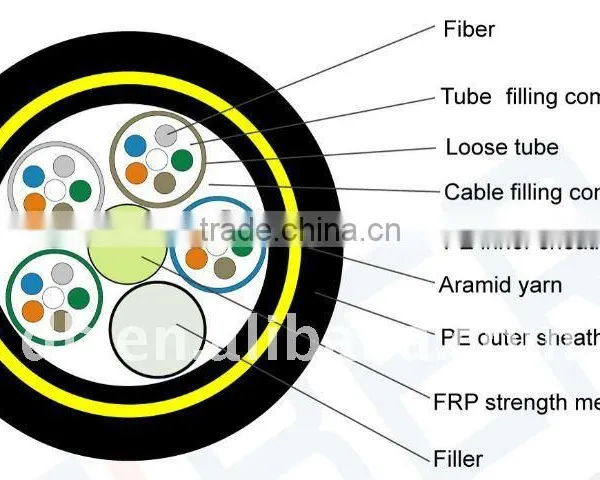

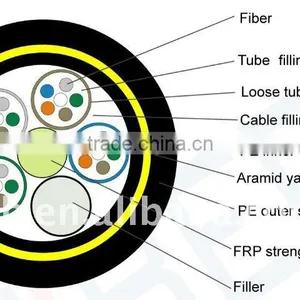

ADSS Fiber Optic Cable Description

1. The ADSS aerial cable.
2. The fibers,250μm, either of single-mode or multimode type, are positioned in a loose tube made of a high modulus plastic.
3. The tubes are filled with a water-resistant filling compound.
4. A layer of aramid yarn or high strength glass is applied around the cable core as additional strength member.
5. Then, the cable is completed with a black or color HDPE sheath.



ADSS Fiber Optic Cable Characteristics

• Non-mental design can prevent the cable from radio interference and magnetic wave interference
• Specially designed compact structure is good at preventing loose tubes from shrinking.
• Aramid yarn ensures good performance of tensile strength
• Loose tube filling compound ensure good moisture resistance performance
• Good flexibility
• High dense fiber packed, small diameter and light weight; it's the better option for blowing installation process

ADSS Fiber Optical Cable Characteristics

G.652 G.655 50/125μm 62.5/125μm Attenuation (+20°C) @850nm     ≤3.0 dB/km ≤3.0 dB/km @1300nm     ≤1.0 dB/km ≤1.0 dB/km @1310nm ≤0.36 dB/km ≤0.40 dB/km     @1550nm ≤0.22 dB/km ≤0.23dB/km       Bandwidth (Class A) @850nm     ≥500 MHz·km ≥200 MHz·km @1300nm     ≥1000 MHz·km ≥600 MHz·km Numerical Aperture     0.200±0.015NA 0.275±0.015NA Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm



ADSS Fiber Optic Cable Technical Parameters

Cable Type Fiber Count   Cable Diameter mm Cable Weight kg/km   Tensile Strength   Long/Short Term N Crush Resistance   Long/Short Term N/100mm   Bending Radius   Static /Dynamic mm JET 2~12 2~12 4.2±0.3 12 60/150 300/1000 10D/20D JET 14~24 14~24 4.6±0.3 15 60/150 300/1000 10D/20D JET 26~36 26~36 5.1±0.3 18 60/150 300/1000 10D/20D JET 38~48 38~48 5.6±0.3 22 60/150 300/1000 10D/20D

Storage/Operating Temperature : -40°C to + 70°C
