Plasma Cutting Machine Cnc Metal Cutt

1)Feature:

1.Welded lathe bed of thick profiled steel, more solid and stable.

2. Perfect lathe table design, 10mm steel plates fixed on lathe table covered by cast sheath. The level difference

of platform remains in 0-1.5mm..

3. Advanced material inclined discharging design. All finished work pieces and fragments slide into both sides of tunnel for safe and convenient collection.

4.Panasonic Servo motor, Taiwan servo redactor and high-accurate rack transmission. Lower noise, stable and accurate coordinate movement

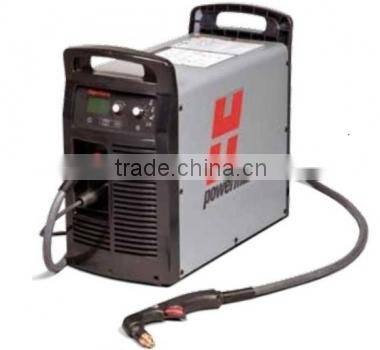

5. American Hypertherm power(optional Cut-Master power) together with high-sensitive arc pressure adjuster.

Self-adjusting to choose the best distance between plasma head and work piece automatically in order to ensure cutting accuracy

6. China Shanghai Communication University control system .

7.Austrilian Netsoftware----Fastcam

2) Parameters:

Working area:1500X3000mm

Cutting thickness: best cut 15mm,  drill holes: 20mm  max cutting thickness 40mm

Cutting speed: 0-8000mm/min

Power: 8.5KW

Input voltage: 3-phase  380V

Frequency of power: 50Hz

Plasma Current: 40A 60A 120A

Document transmission form; USB interface.

Working form: Untouched arc striking

3)optionals:

step motor

Hypertherm or China made powersupply

size:300*2500/1300*1300mm

60A/80/100A powersupply according to the cutting material and cutting thickness

 double language control system

ARC height control system

Knife table, and thick structure

Hypertherm 105A powersupply

Samples:
