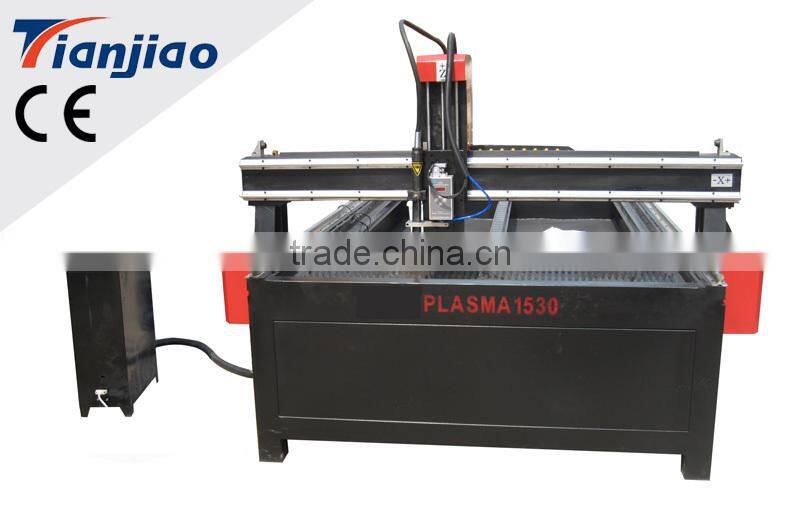

Industrial CNC Plasma Cutting Machine 1530
Applications of Plasma CNC Cutting Machine:
CNC Plasma Cutting machines are widely used for cutting Stainless Steel, Carbon steel, structure steel, Aluminum, Iron, Galvanized sheet, Titanium plate, M.S. plate for signs, architectural components, fabrication units etc.
Features of Plasma CNC Cutting Machine:
1. Welded lathe bed of thick-wall profiled steel, more solid and stable, sturdy and durable.
2. Imported Taiwan HIWIN square linear orbit, more load-bearing performance, high precision.
3. Automatic ARC starting, success ratio can be over 99%.
4. Adopt automatic torch height adjustment controllor, helps to reduce consumption, increase the life of the nozzle, ensure cutting accuracy and improve cutting quality.
5. Imported Hypertherm and Thermadyne power supply.
6. Adopt advanced imported CNC system and nesting software
Technical parameters:
Type |
Parameter |

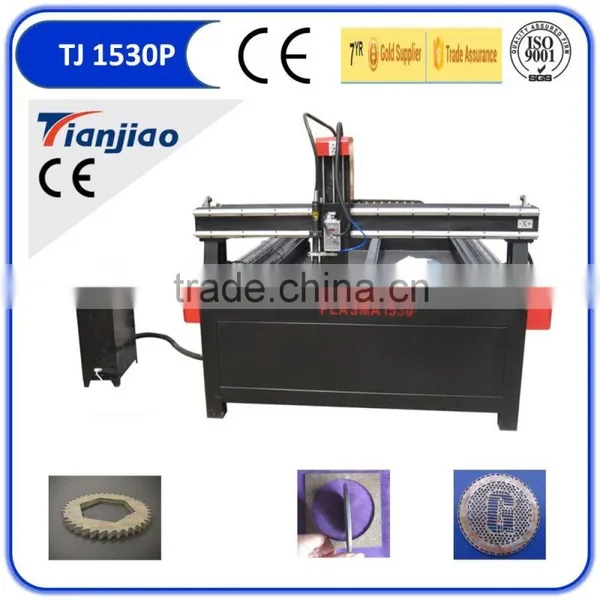

TJ-1530 CNC Plasma Table Cutting Machine | |
Machine Body Structure |
Whole seamless thicker steel structure |
Working Size |
1500mm*3000mm(other size according to customers |
Guide way |
Imported Taiwan HIWIN Precision square linear orbit |
Driving Mode |
Single or Dual Side, rack and pinion type |
Plasma Cutting Thickness |
Less than 20mm (standard), can optionally be made to support thicker material upon request |
Maximum Machine Speed |
10000mm/min |
Cutting Precision |
0.5mm-1mm |
Cutting Speed |
0-8000mm/min |
Number of Cutting Torches |
1 Plasma cutting torch station |
Cutting Mode |
Plasma Cutting (Air,Oxy,N2,H2,Argon hydrogen mixture etc) |
Driving Motor |
Panasonic Servo Motor/ Matsushita and Yaskawa Sigma Series Servo Motor |
Gearbox |
Neugart planetary type |
Voltage |
AC380V/50-60Hz,3 phase |
CNC Control System |
Hypertherm MicroEDGE/FL CNC/Burny 10 LCD |
Torch Height Control Device |
Chineses PTHC-2 Plasma arc voltage height control/American Hypertherm Sensor THC arc voltage height control/Germany Kjellberg KHC4/KHC1 arc voltage height control |
Plasma systems |
Hypertherm/ Thermal Dynamics/Kjellberg |
Nesting Software |
Australia FASTCAM software/Anerican Hypertherm Pronest nesting software |
Cutting Platform |
Integrated into machine |
Optional Features |
Downdraft table design for dry cutting – connects to fume extraction system, Water table style for cutting above water or under water cutting |
Economic options:
1. Chinese Chengdu Huayuan plasma power
2. Stepper motor and Leadshine/Fuling driver
3. Beijing Start control system/DSP control system
Warranty:
All machine are debugged before shipment.
One year for the machine.
Lifetime technical support and service.
You can contact us by email, and we will reply in 24 hours, or by phone if urgently.

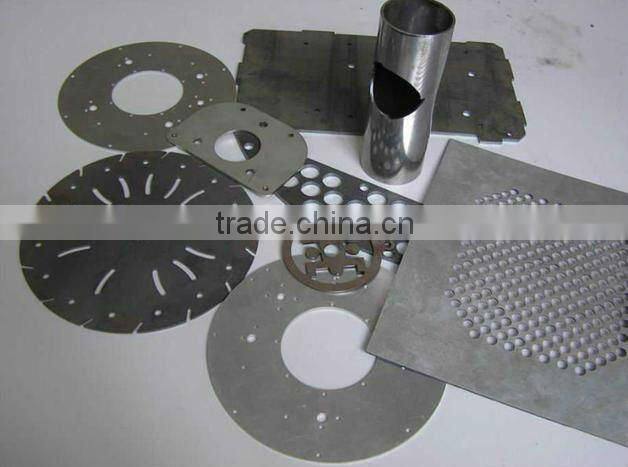

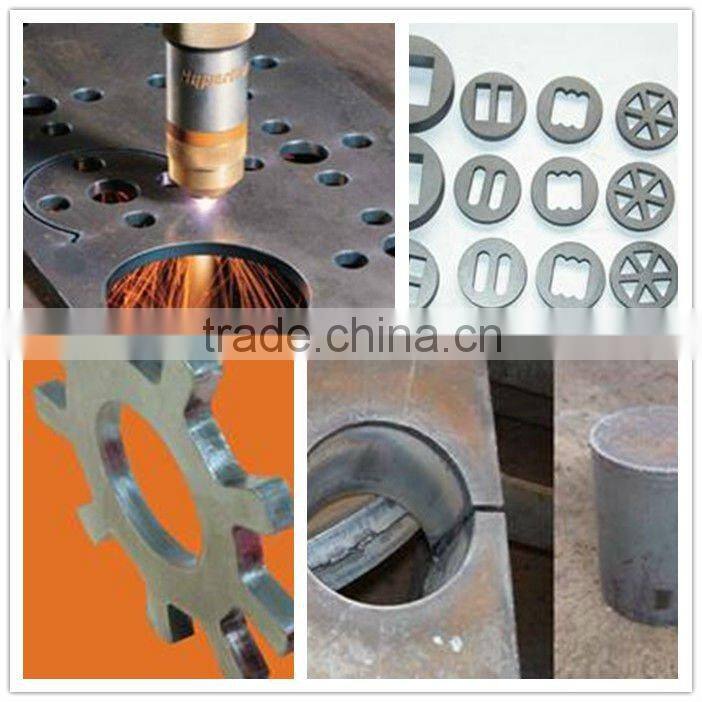

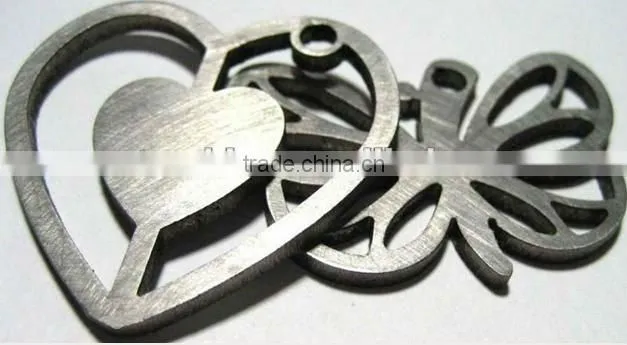

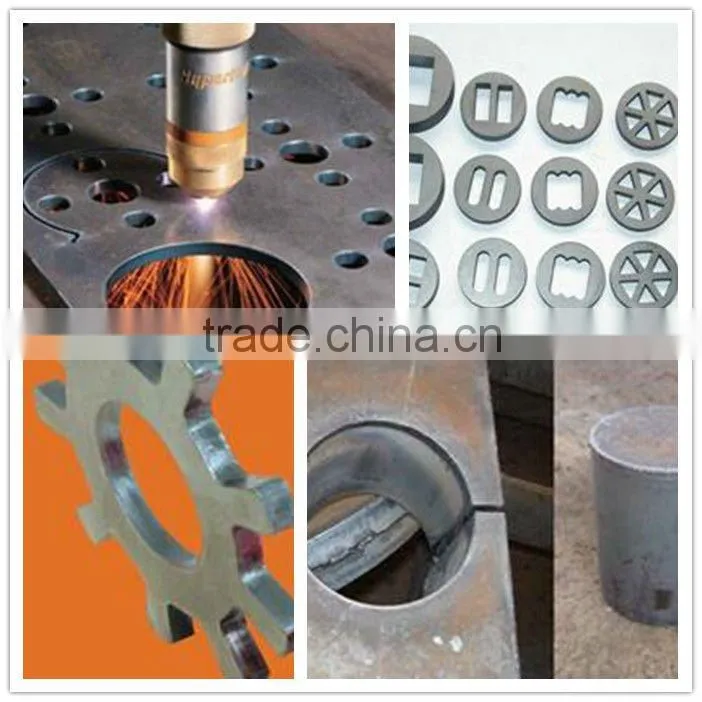

Samples:
- One year machine warranty ,during the warranty period , if any parts broken,
we change a new part for you freely.
- All machines are debugged before shipment.
- Lifetime technical support and service.
- 24 hours on line or phone or by email technical support.
- We offer detailed machine manual, software manual, controller manual.
- Our factory make a vivid traing CD.
- Maintenance free of charge during lifespan.
- Free training course at our plant.
- Welcome to visit our factory, learn machine face to face.
Jinan Tian Jiao Machinery Manufacture Co., Ltd. specializes in developing and manufacturing Mechanical CNC routers, CNC Laser machines, Plasma cutting machines, cutting plotters and other machines. We provide global market with high quality CNC equipment. We are a leading company in this field, being confident in offering the best service and best quality.
With many years' hard work and perfect management system, we have classified our products into several categories: woodworking machines, advertising machines, ATC machines, stone working machines, plasma cutting machines, laser machines and plotters. We can also customize products and offer OEM service. Our products have been exported to many overseas countries, gaining good comments.
We hope to be your good, long-term and honest partner. Wish you can get joy and satisfaction from our products and service.
Q1: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can
recommend the most suitable machine according to our experience.
Q2: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can
also help you by “Team viewer”online, with telephone or Skype explain.
Q3: Can you customize the machine for me?
Yes, we provide customized solution, but considering the cost, we will recommend the
standard configuration to you first.
Q4: What is the guarantee? In case the machine break down?
The machine has 1 year guarantee, fail parts will be replaced for free if the machine under
“ normal operation”.
Q5: How about the documents after shipment?
We will send all the documents by air after shipment. Including packing list, commercial
invoice, B/L, and other certificates required by clients.
Q6: Delivery time?
For standard machine, it would be 7-10 working days; for non-standard machine, it would be
20 - 30 working days.
Q7: How is the payment?
Normally we accept T/T or L/C, if you like other terms, tell us in advance.
Q8: Do you arrange the shipment for me?
For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange
the shipment by yourself.
Q9: How is the packing?
Step1: water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
Years of experience
We are a dedicated team of professionals with years of experience. All our team members have been working for CNC machine companies before and gained real-life know-how in business, marketing and technical areas. All supported by strong theory & research. We have successfully helped our clients with their sourcing, operation and other needs.
High quality service
Our main goal is to provide high quality services and customer satisfaction. To achieve this we work by our strict internal rules. When implementing procedures, we are only using the best practices and industry standards.
Flexibility
We are aware that all our customers are different. Therefore we can build a suitable package out of our services, to provide the optimal solution: maximum of results with the budget you are willing to spend.
Technical background
We are also working with many R&D institution and university, Therefore we are not only able to provide you with a professional product based on our knowledge and experience, but also implement all suggested changes.
