Specifications
Servo motor,lower noiseUSA Hypertherm
double language Control system
Austrilian Fastcam software
square orbit,gearwheel

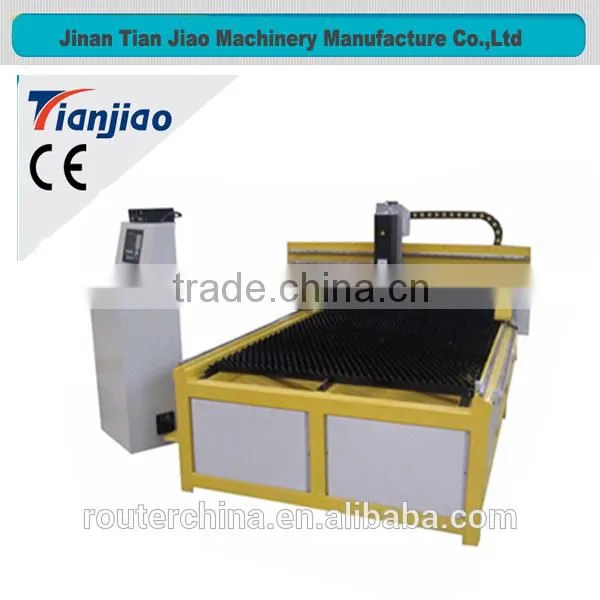

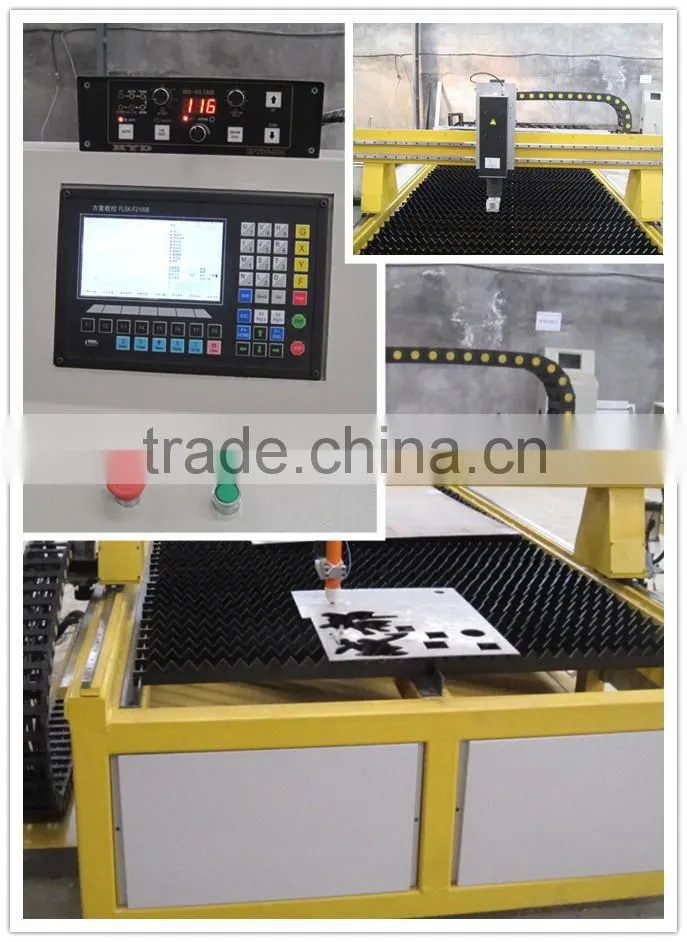

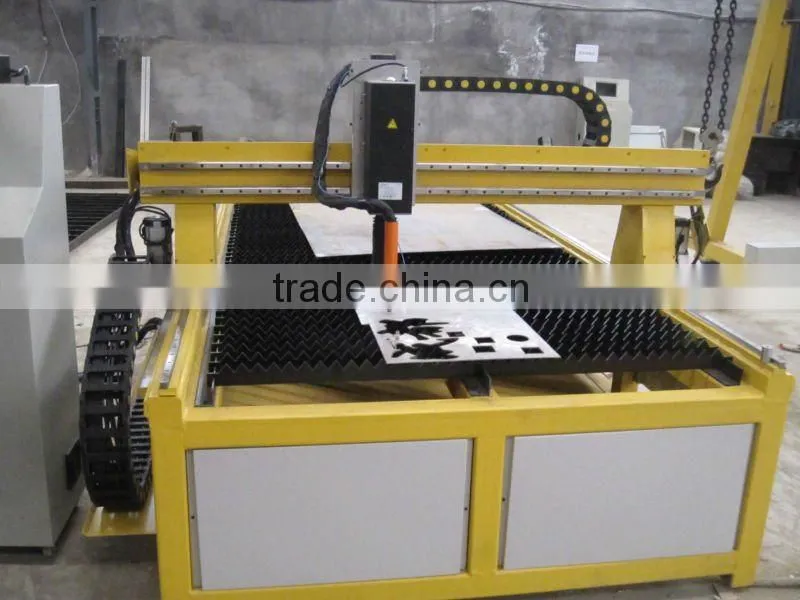

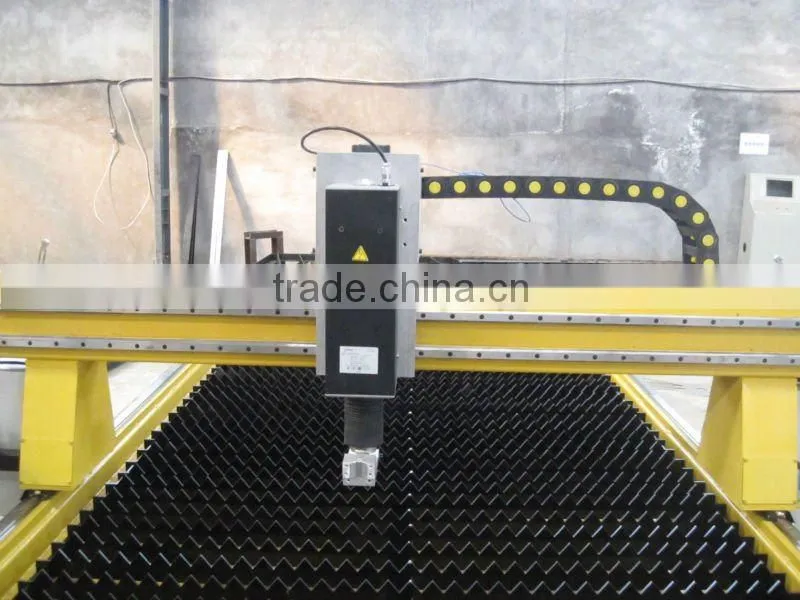

cnc plasma cutting machine
1)Feature:
1.Welded lathe bed of thick profiled steel, more solid and stable.
2. Perfect lathe table design, 10mm steel plates fixed on lathe table covered by cast sheath. The level difference of platform remains in 0-1.5mm..
3. Advanced material inclined discharging design. All finished work pieces and fragments slide into both sides of tunnel for safe and convenient collection.
4.Panasonic Servo motor, Taiwan servo redactor and high-accurate rack transmission. Lower noise, stable and accurate coordinate movement
5. American Hypertherm power(optional Cut-Master power) together with high-sensitive arc pressure adjuster.
Self-adjusting to choose the best distance between plasma head and work piece automatically in order to ensure cutting accuracy
6. China Shanghai Communication University control system .
7.Austrilian Netsoftware----Fastcam
2) Parameters:
Working area:1500X3000mm
Cutting thickness: best cut 15mm, drill holes: 20mm max cutting thickness 40mm
Cutting speed: 0-8000mm/min
Power: 8.5KW
Input voltage: 3-phase 380V
Frequency of power: 50Hz
Plasma Current: 40A 60A 120A
Document transmission form; USB interface.
Working form: Untouched arc striking
3)optionals:
step motor
Hypertherm or China made powersupply
size:300*2500/1300*1300mm
60A/80/100A powersupply according to the cutting material and cutting thickness
double language control system
ARC height control system
Knife table, and thick structure

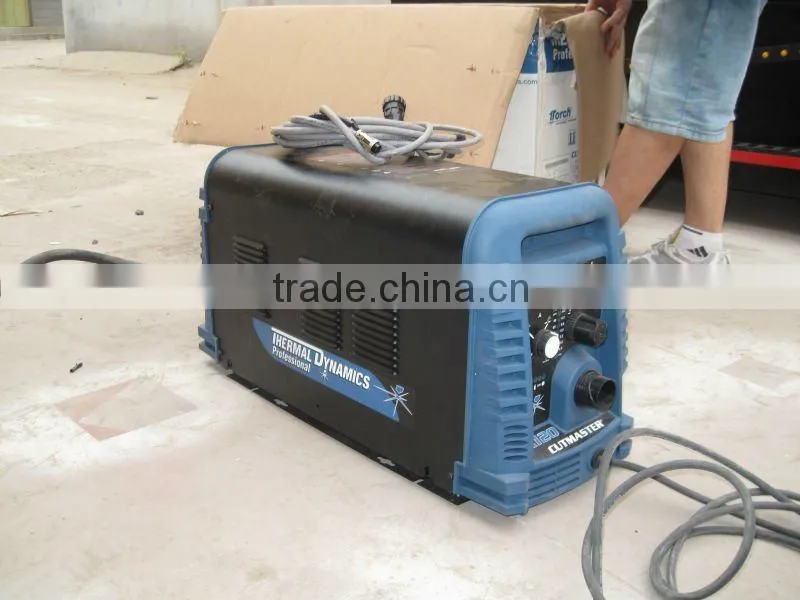

USA THERMADYNE powersupply can make sure the high cutting precision

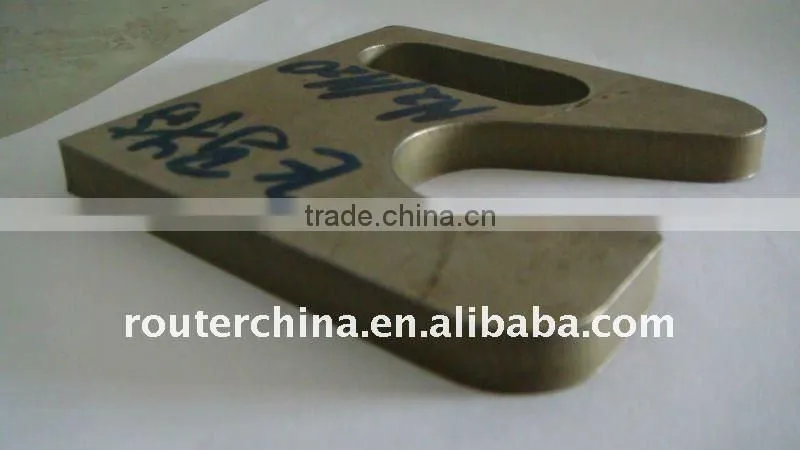

Samples:
