Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | TIANJIAO |
Model Number: | TJ1325 | Voltage: | 380V 3phase | Rated Power: | 8.5KW |
Dimension(L*W*H): | 1300*2500mm | Weight: | 2000KG | Certification: | CE FDA ISO |
Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

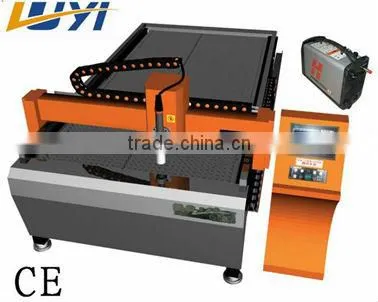

Cheap CNC plasma metal cutting machine TJ1325
1.Application:
It is mainly designed for cutting small metal sheet such as Iron sheets, Aluminum sheets, Galvanized sheets,
Tianium Plates.And the valid cutting range is 1300*2500mm.The working area is 1300*2500mm.
2.Configuration:
1.Square tube welding structure column
2.Round orbit gearwheel
3.Domestic power 60A
3.Features:
1.Gantry structure,double motor driver of Y axis.Light beam design,linear guide rail,high accuracy,stable transmission.
2.Untouched plasma head,small cutting edge,no cutting residue. Water cooling system avoids the distortion of
metal board. High cutting speed,high accuracy,low cost.
3.Advanced numeral control system,stable performance. Software compatability: Ucancam,Type3,Artcam,etc.
Success ratio of arc striking can be over 99%.
Power supply: China domestic made power supply
Control system: DSP Control system
Structure: 3 axises square orbits, Gear-wheel
Software: UCANCAM software
4.Parameters
Working area | 1300*2500mm |
Applications | Iron sheets, Aluminum sheets, Galvanized sheets, Tianium Plates. |
Working thickness | 0.5-8mm |
Cuttting speed | 0-8000mm/min |
Power | 8.5KW |
Input voltage | 3phase 380V |
Frequency | 50Hz |
Current | 60A or 100A |
File transfer | USB interface |
Working mode | None touching Arc |
5.Parts
6.Samples
Warranty and after-sales service
1.All machines are debugged before shipment.
2.One year machine warranty.
3.Lifetime technical support and maintenance service.
4.24 hours on line or phone or by email technical support.
5.We offer detailed machine manual,software manual,controller manual and training CD.
6.Free training course at our plant.
7.Welcome to visit our factory to learn machine face to face.
