cnc plasma cutting/plasma cutter/cnc cutting machinery

Specifications

1.Thicken square tube welding structure column
2.Square orbit gearwheel
3.Import Hypertherm and Thermadyne powersupply.

cnc plasma cutting/plasma cutter/cnc cutting machinery











 It is mainly designed for cutting small metal sheet such as Iron sheets, Aluminum sheets, Galvanized sheets,

Tianium Plates.

And the valid cutting range is 1300*2500mm.The working area is 1300*2500mm.



2.Configuration:

1.Thicken square tube welding structure column

2.Square orbit gea-rwheel

3.Import Hypertherm and Thermadyne power supply.



3.Features:

1.Gantry structure,double motor driver of Y axis.Light beam design,linear guide rail,high accuracy,stable transmission.



2.Untouched plasma head,small cutting edge,no cutting residue. Water cooling system avoids the distortion of

metal board. High cutting speed,high accuracy,low cost.



3.Advanced numeral control system,stable performance. Software compatability: Ucancam,Type3,Artcam,etc.

Success ratio of arc striking can be over 99%.



Power supply: Import Hypertherm and Thermadyne power supply.

Control system: DSP Control system

Structure: 3 axises square orbits, Gear-wheel

Software: UCANCAM software



4.Parameters

Working area	1300*2500mm
Applications	Iron sheets, Aluminum sheets, Galvanized sheets, Tianium Plates.
Working thickness	0.5-15mm
Cutting speed	0-8000mm/min
Power	8.5KW
Input voltage	3phase 380V
Frequency	50Hz
Current	60A or 100A
File transfer	USB interface
Working mode	None touching Arc



5.Parts







Hypertherm from USA



THERMADYNAMICS from USA





 LGK China made best seller

FREECUT from China

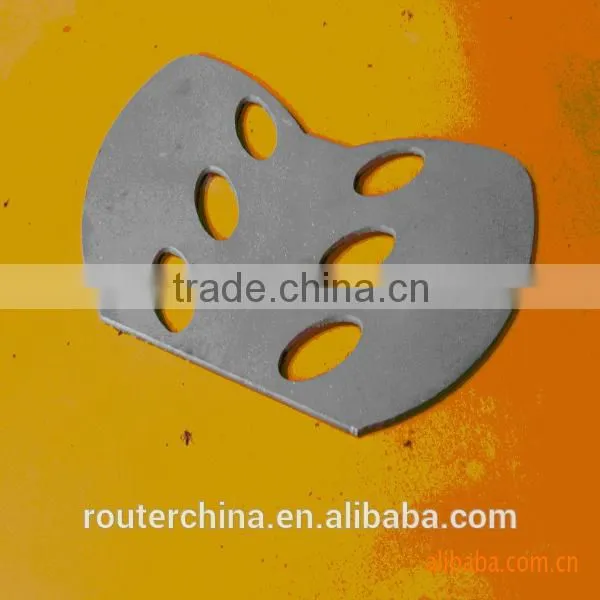

6.Samples

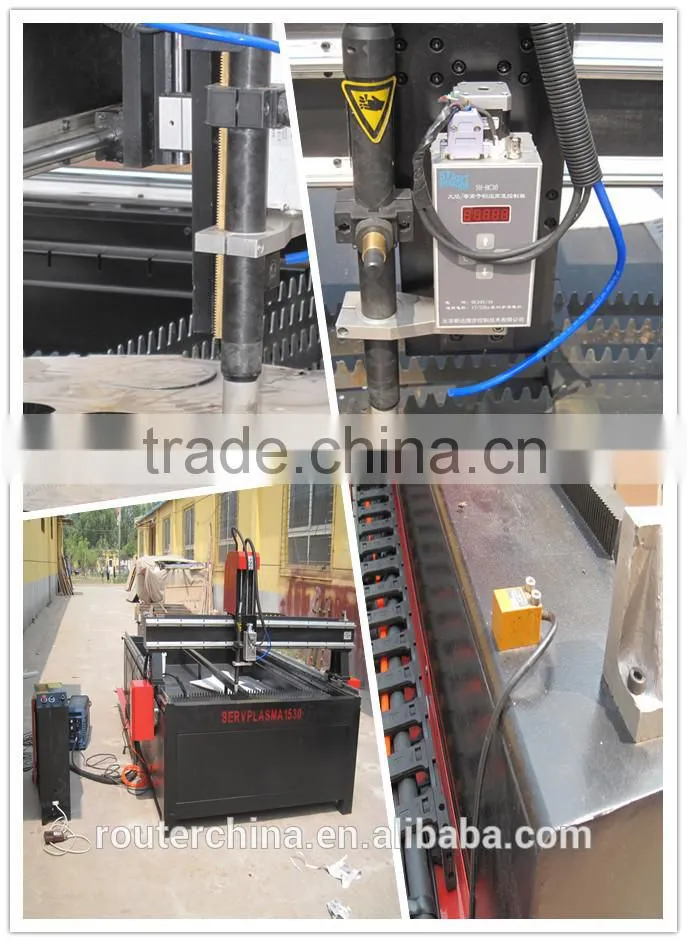

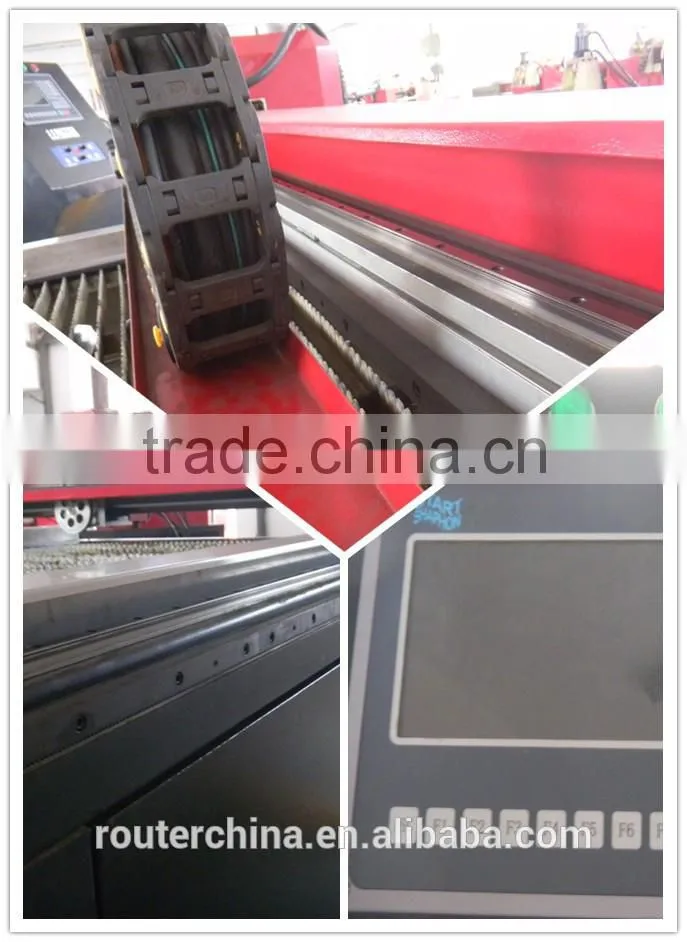

 7.machine photos:

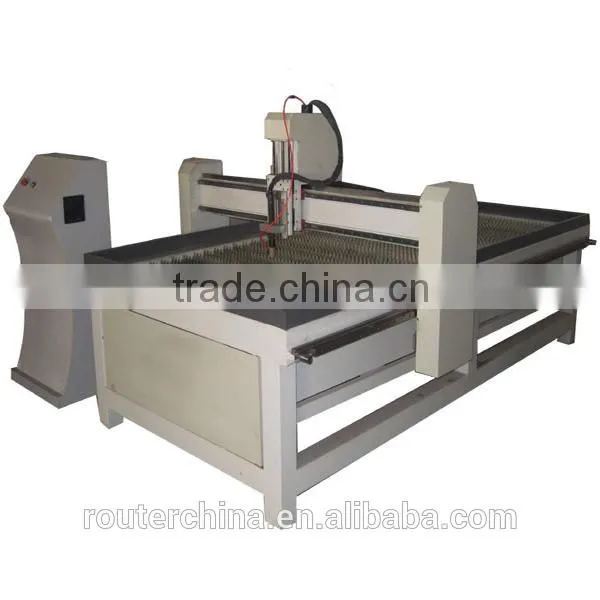

With DSP control system

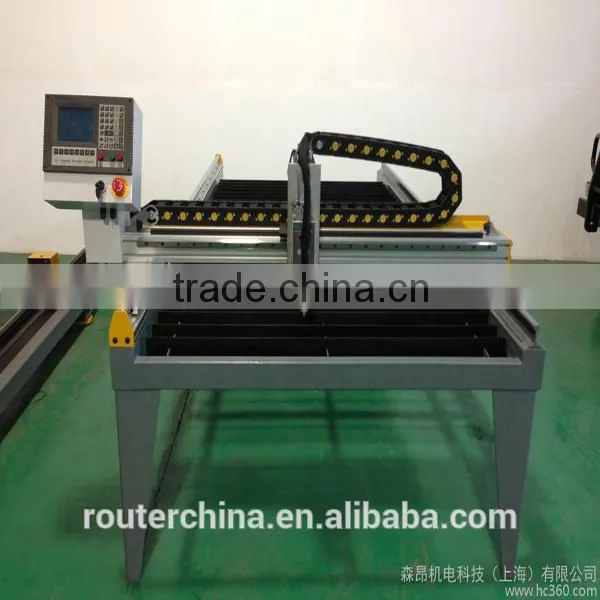

With START control system

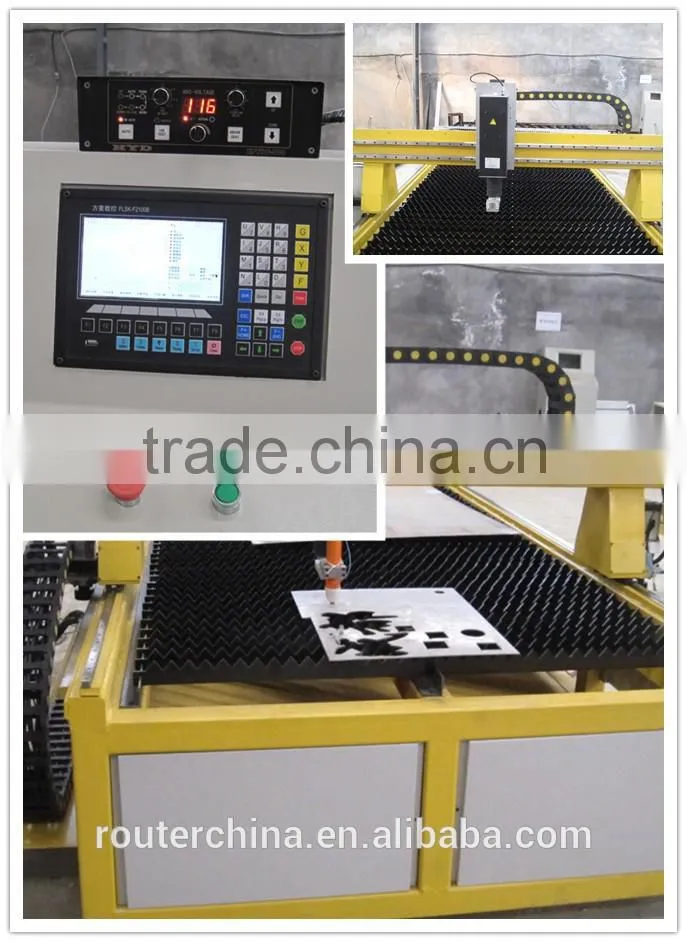

 with FL control system

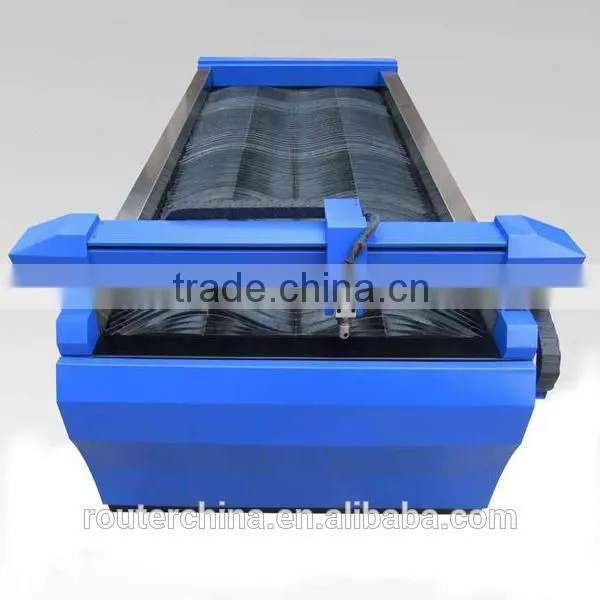

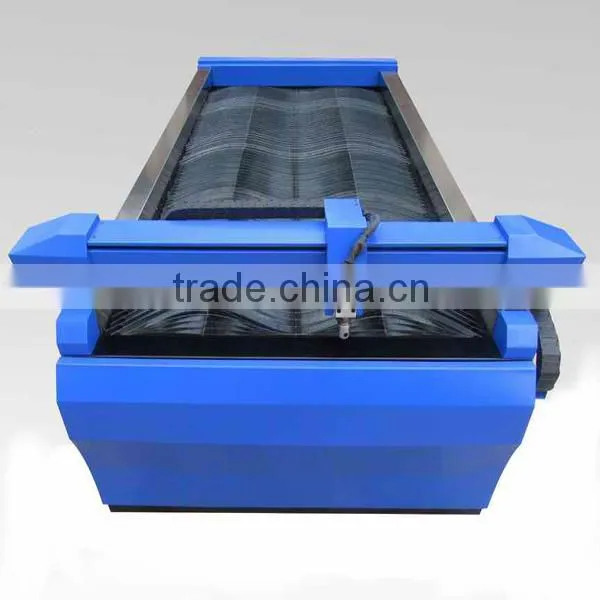

With wavy table





with zigzag table
