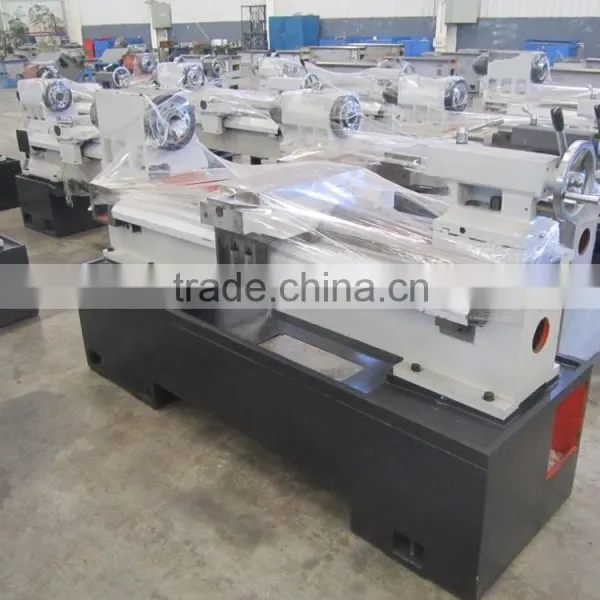

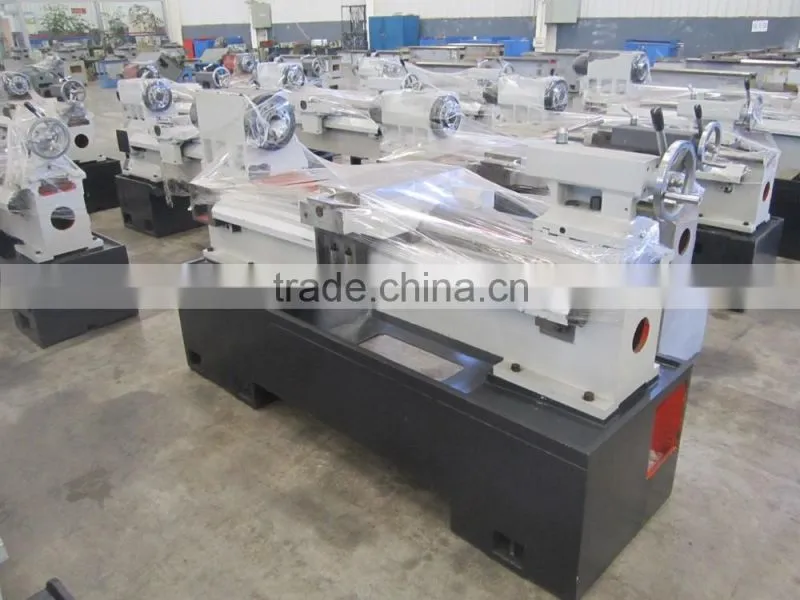

Help CenterFlat Bed Lathe TCK6140Q
Related Products

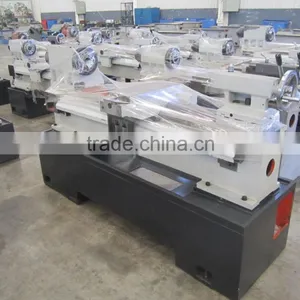

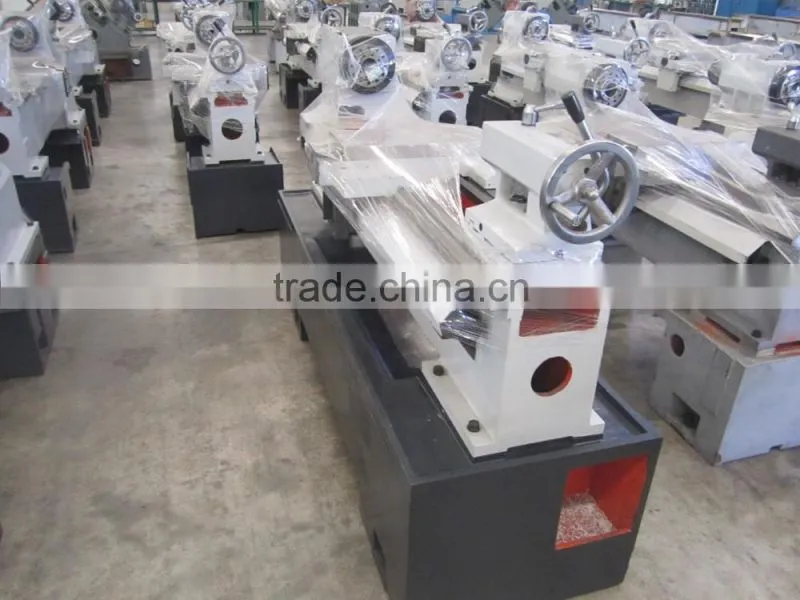

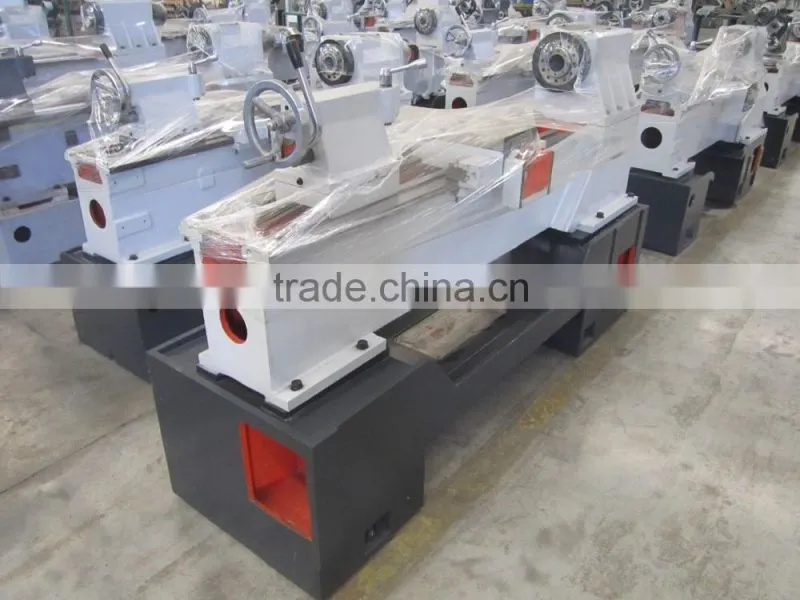

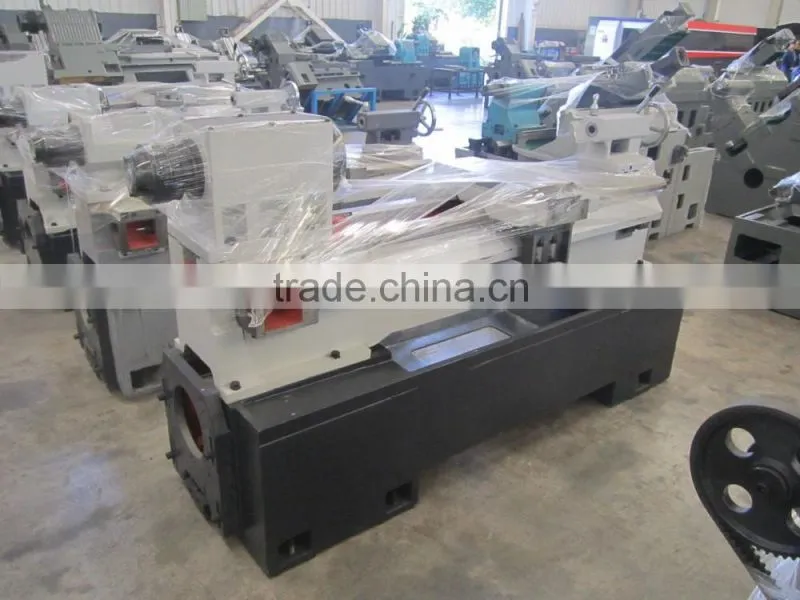

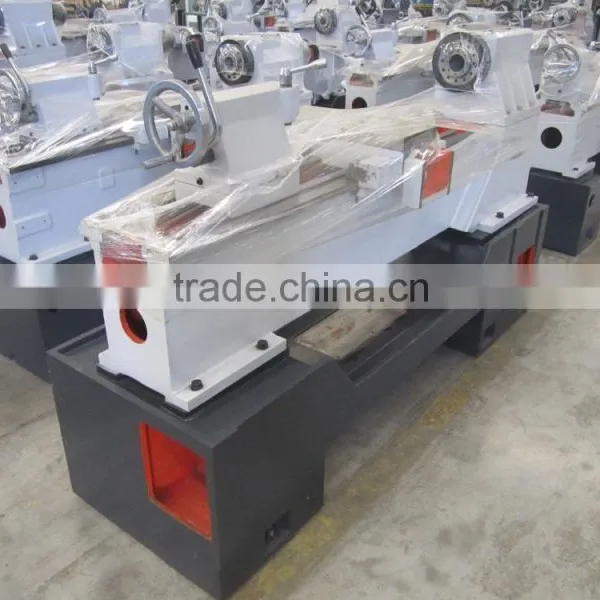

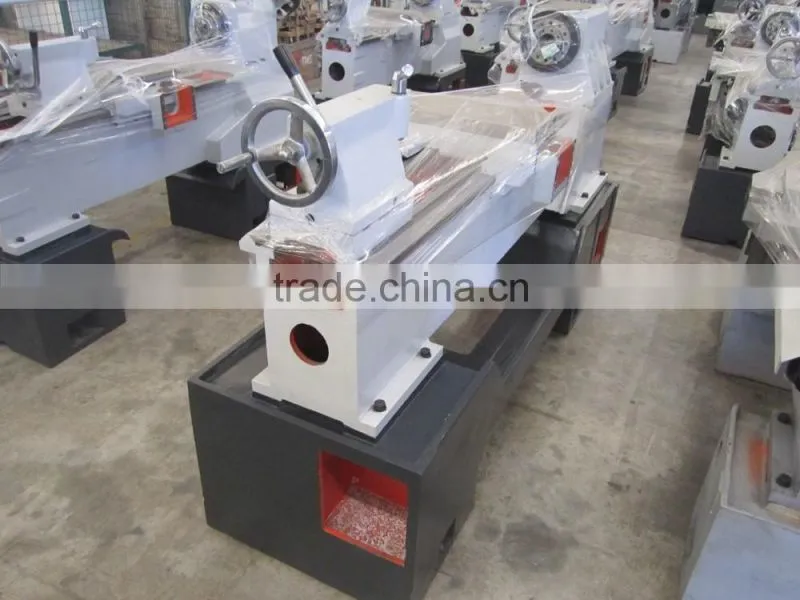

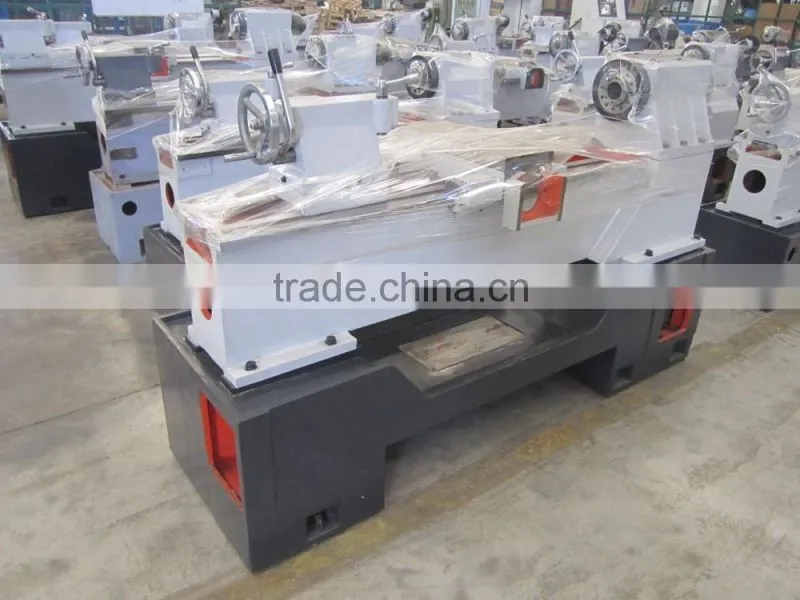

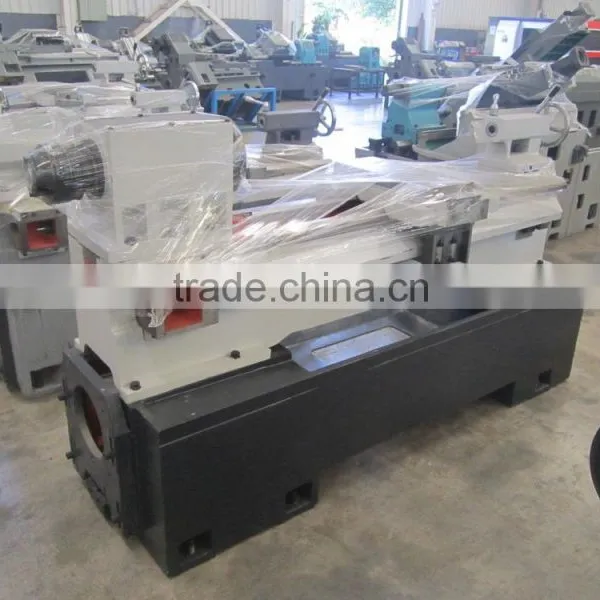

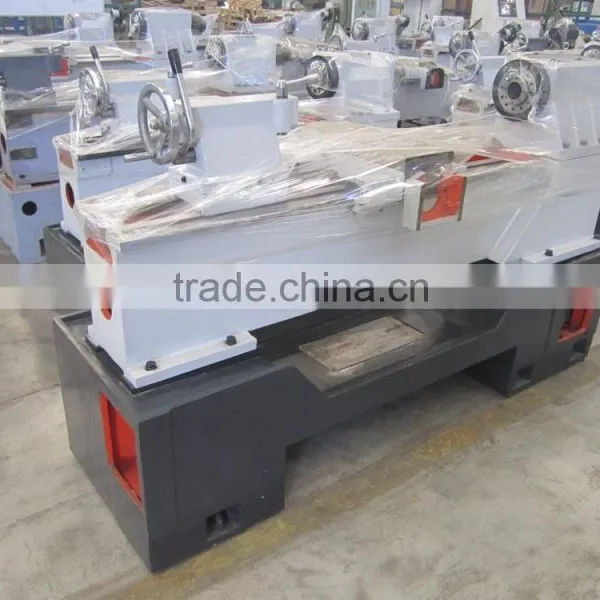

SMARTECH CNC LATHE FRAME
- MACHINE FEATURE:
1 High-class casting processed by resin sand and wood mould;
2 Imported ball screws sets, linear guide and bearing;
3 Hydraulic tailstock;
4 Imported coupling;
5 Integrated spindle;
6 Stainless steel telescopic protection on X and Z axes;
7 Centralized maintenance-free automatic lubrication system;
- OPTIONAL:
1 Full guarding;
2 Hydraulic turret;
3 Hydraulic cylinder and chuck;
4 Hydraulic unit;
- SPECS:
MODEL |
TK6140Q |
Max swing diameter over bed |
Φ400 |
Max turning diameter |
Φ400 |
Max swing diameter over toolpost |
Φ220 |
Max turning length |
1000 |
Distance between centers |
1000 |
Spindle nose spec |
D-6 |
Spindle motor mounting |
vertical |
Spindle speed(max) |
2600rpm |
Spindle Bore |
Φ57 |
Bar capacity |
Φ48 |
X axis Ball Screw Spe. |
25/04 |
Z axis Ball Screw Spe. |
40/06 |
Tailstock quill diameter |
Φ60 |
Quill Stroke |
120 |
Dimension (LxWxH) |
2238x650x1240 |
Net Weight |
1800kg |
