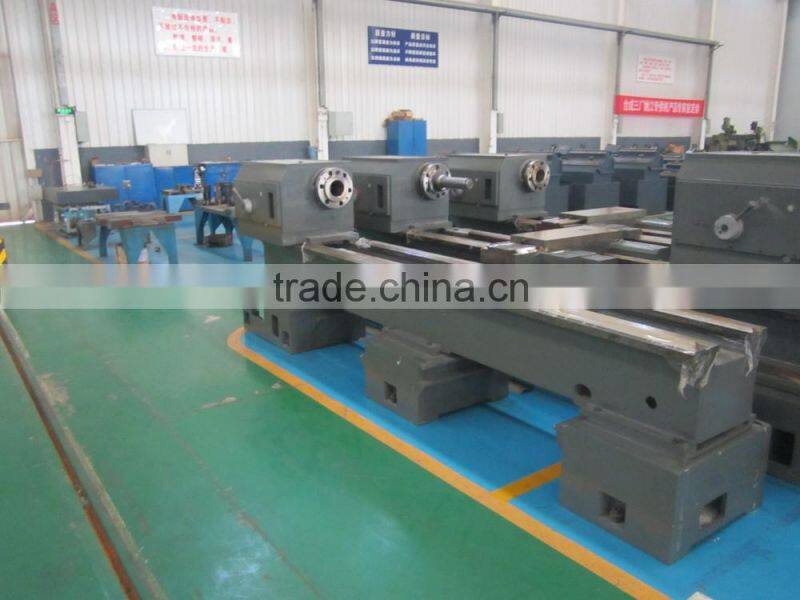

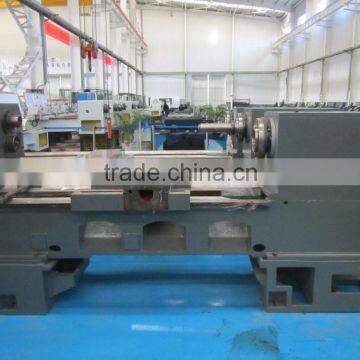

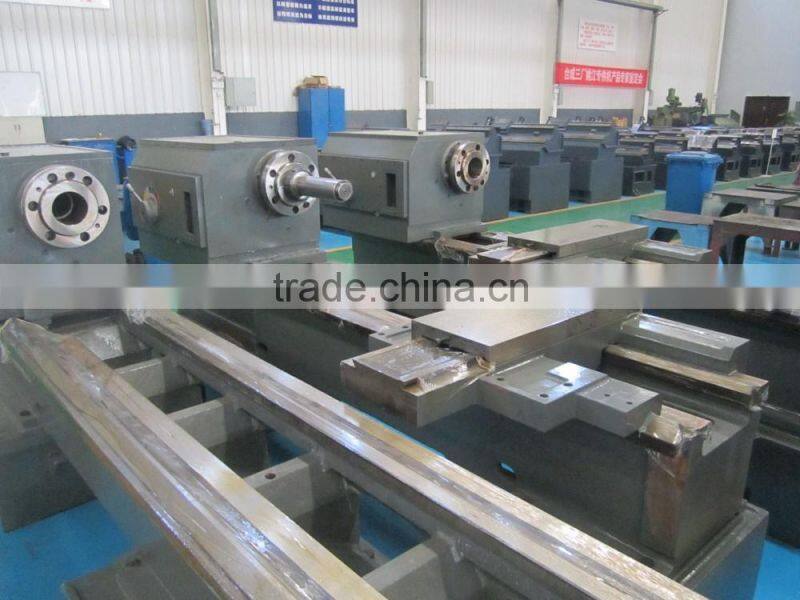

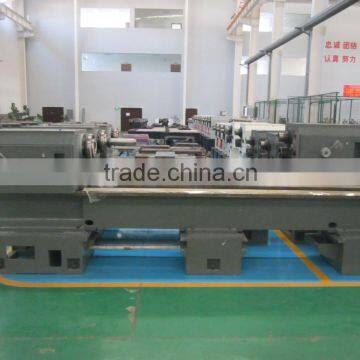

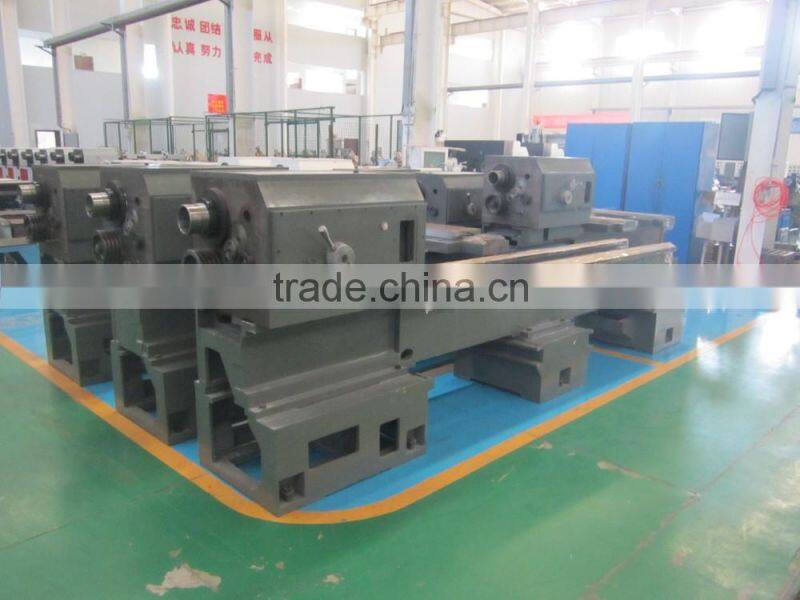

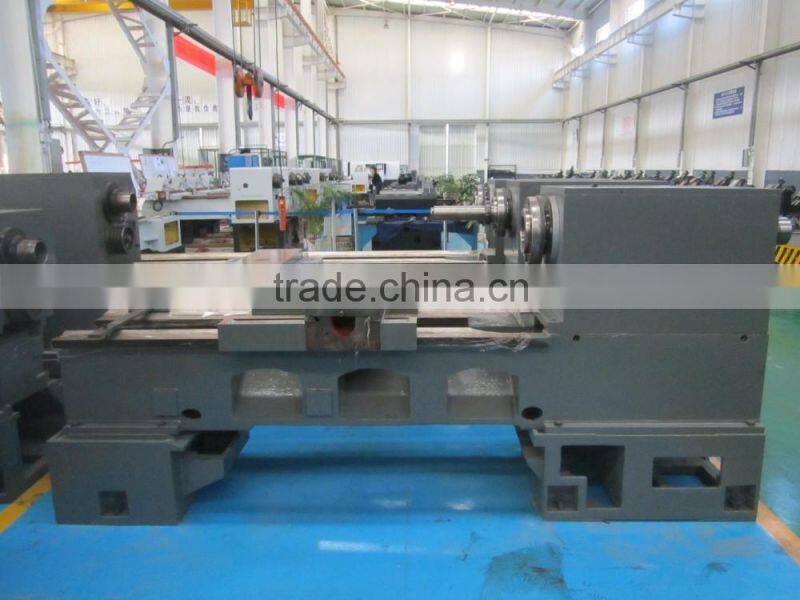

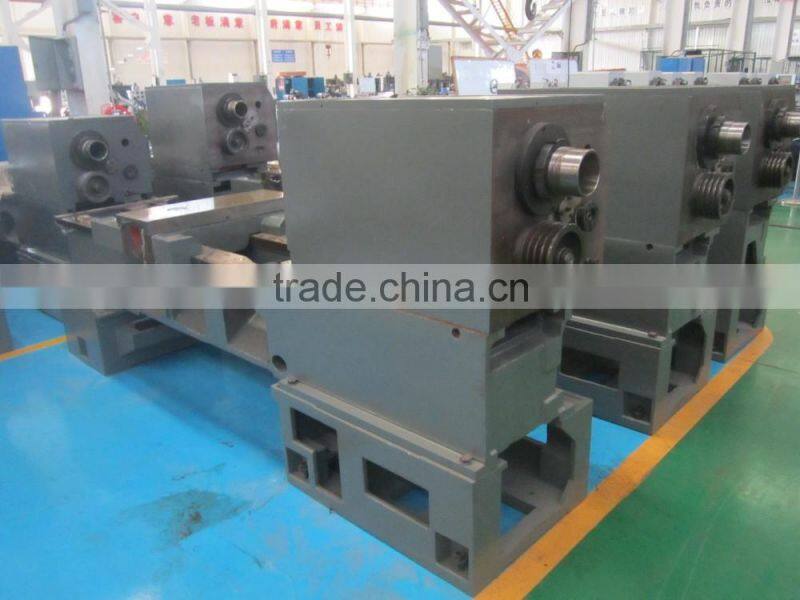

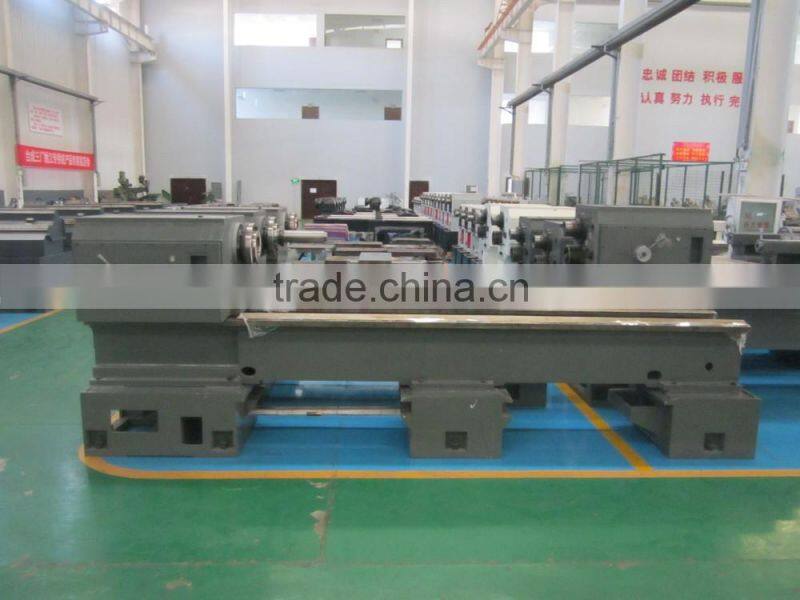

SMARTECH CNC LATHE FRAME
- MACHINE FEATURE:
1 High-class casting processed by resin sand and wood mould;
2 Imported ball screws sets, linear guide and bearing;
3 Hydraulic tailstock;
4 Imported coupling;
5 Integrated spindle;
6 Stainless steel telescopic protection on X and Z axes;
7 Centralized maintenance-free automatic lubrication system;
- OPTIONAL:
1 Full guarding;
2 Hydraulic turret;
3 Hydraulic cylinder and chuck;
4 Hydraulic unit;
- SPECS:
MODEL |
TK6180C |
Max swing diameter over bed |
Φ800 |
Max turning diameter |
Φ800 |
Max swing diameter over toolpost |
Φ480 |
Max turning length |
1000/1500 |
Distance between centers |
1000/1500 |
Spindle nose spec |
C-11 |
Spindle motor mounting |
Horizontal |
Spindle speed(max) |
1000rpm |
Spindle Bore |
Φ105 |
Bar capacity |
Φ95 |
X axis Ball Screw Spe. |
32/05 |
Z axis Ball Screw Spe. |
50/10 |
Tailstock quill diameter |
Φ95 |
Quill Stroke |
250 |
Dimension (LxWxH) |
3200x1200x1500 |
Net Weight |
3350kg |
