CNC machine frame / body;BMC1502

Specifications

1 high-class quality;
2 competitive price;
3 high machining precision;
4 short delivery time;

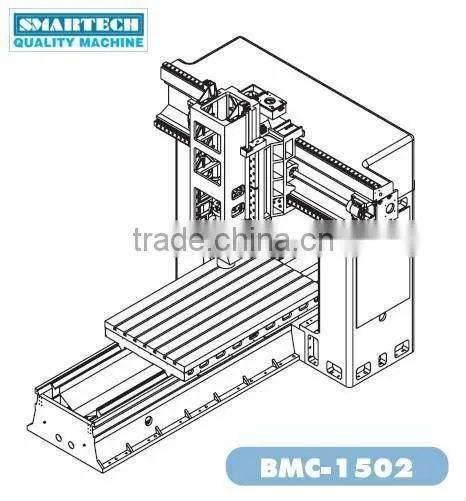

SMARTECH CNC BMC FRAME

• MACHINE FEATURE:

1     High-class casting by resin sand and wood mould;

2     Top class imported ball screws sets and bearing ;

3     Imported spindle & tool clamping system ;

4     Imported drive connectors;

5     Telescopic protection on X/Y axis ;

6     Central lubrication system;

7     Spindle trunk hydraulic balance system;

8     Imported  coupling;

9     Harden&ground on all slideways and Turcite-B coated with precise scraping;



• OPTIONAL: Different type milling heads
• SPECS:

MODEL	BMC-1502
Table Size	1200 x 2100
Travel X	2000
Y	1650
Z	800
Distance between columns	1650
Spindle Nose to table surface	175-975
T-Slot(QTY/size/distance)	7/22/170
Spindle Speed(max) with Gear box	3000rpm
Spindle Speed(max) with ZF Gear box	6000rpm
Spindle Speed(max)  standard	6000rpm(Direct Drive)
X axis Ball Screw Spec.	63/10
Y axis Ball Screw Spec.	50/10
Z axis Ball Screw Spec.	50/10
Drive motors recommended X/Y/Z	40/30/30Nm
Table  Work Load	3000 Kg
Net Weight	25000kg

                                          *Also provide linear-type slide ways.
