Help CenterSwiss Lathe B20F
Related Products

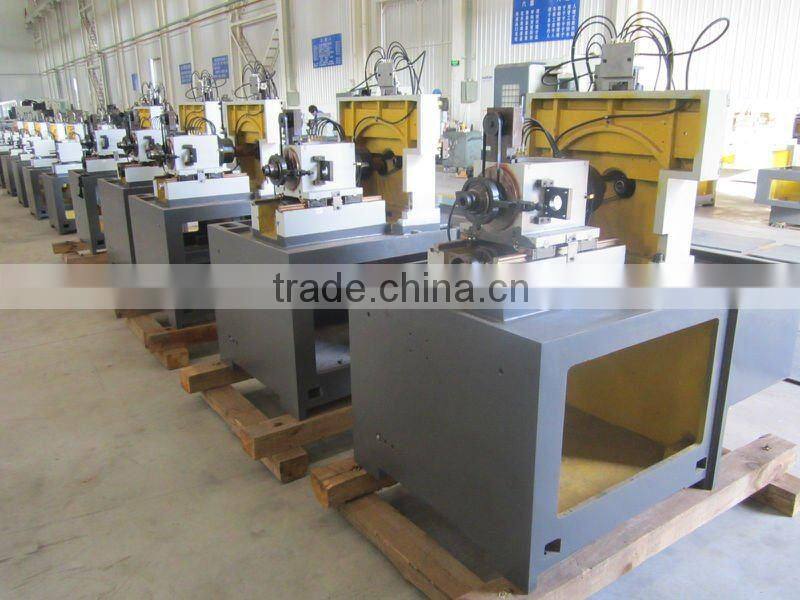

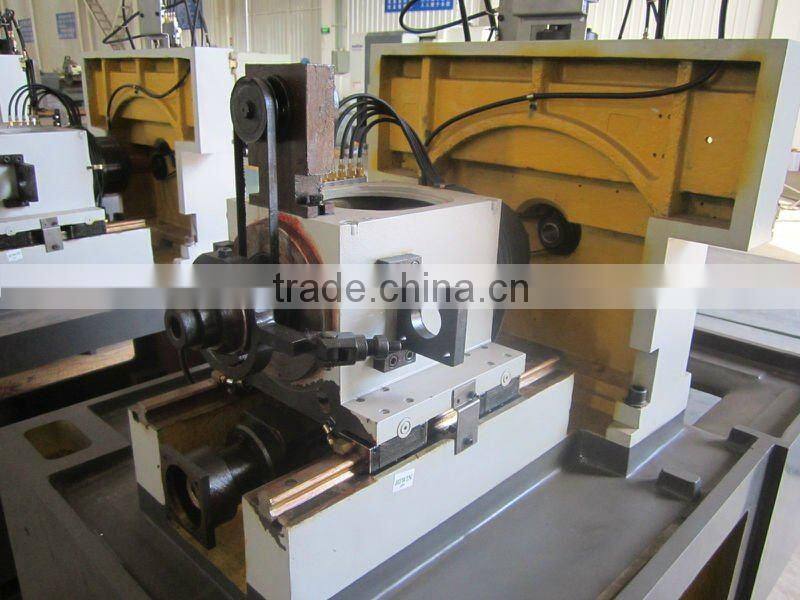

SMARTECH CNC LATHE FRAME
- MACHINE FEATURE:
1 High-class casting processed by resin sand and wood mould;
2 Imported ball screw and screw;
3 National electric spindle assembly;

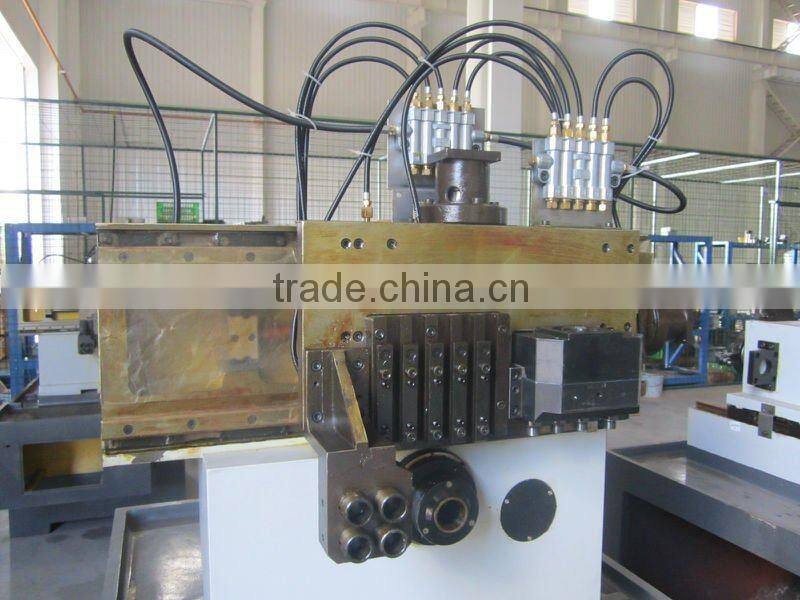

4 Turning gang tools 5';
5 Imported X/Y/Z couplings;
6 Centralized maintenance-free automatic lubrication system;
- OPTIONAL:
1 Full guarding;
2 Servo motors=YASKAWA;
3 CNC control system=LNC-T520i ;
4 Coolant pump;
5 Simple feeding machine;
- SPECS:
MODEL |
TNCB20F |
Max bar stock diameter |
Φ20 |
Max processing parts length |
180 |
Max borehole diameter |
Φ8 |
Max tapping |
M6/ copper M10 |
Recommended total power |
6Kw |
Range of spindle speed |
200-8000r/min |
External turning tool |
5 tools |
Min mechanical resolution |
0.4/0.75kw |
Cutting speed |
1-6000mm/min |
Rapid feed rate |
X axis 20m/min Y/Z axis 35m/min |
Recommended X/Y axis servo motor rated torque |
1.27NM |
Recommended Z axis servo motor rated torque |
2.39NM |
Recommended milling unit head power |
0.4kw |
Recommended milling unit head speed |
50-5000(servo) |
Dimension (LxWxH) |
1690x950x1650 |
Net Weight |
1520kg |
