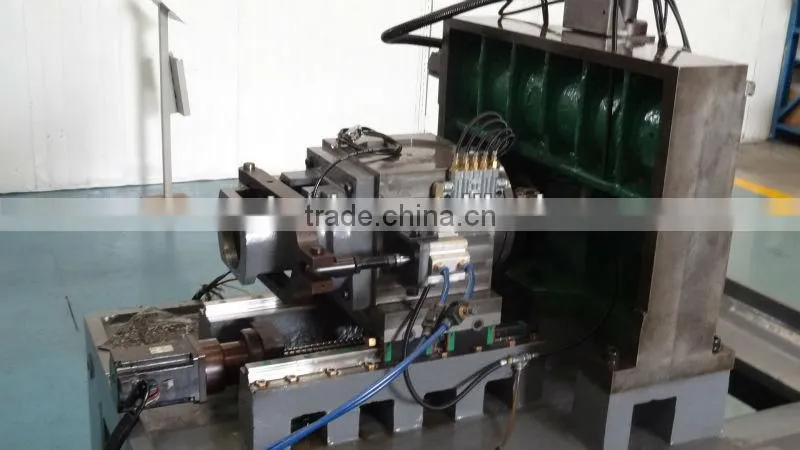

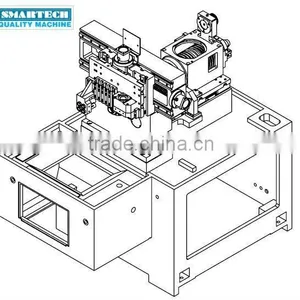

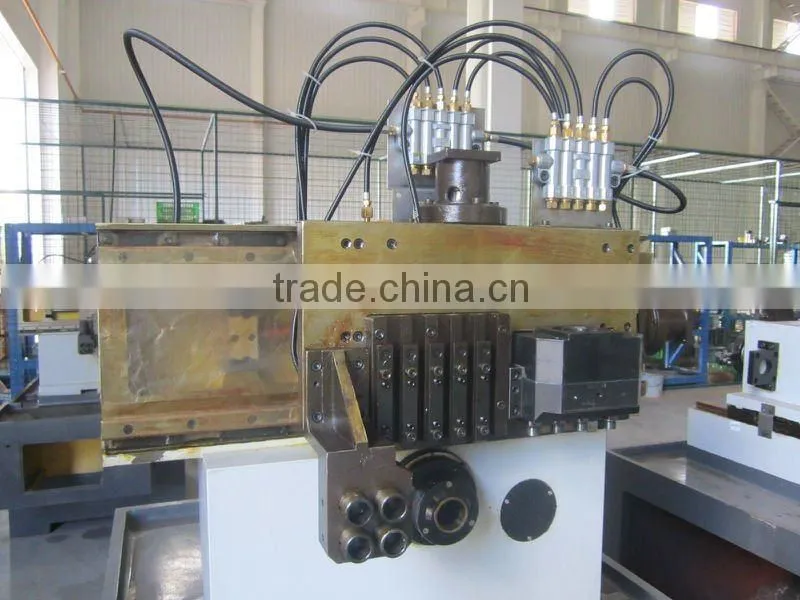

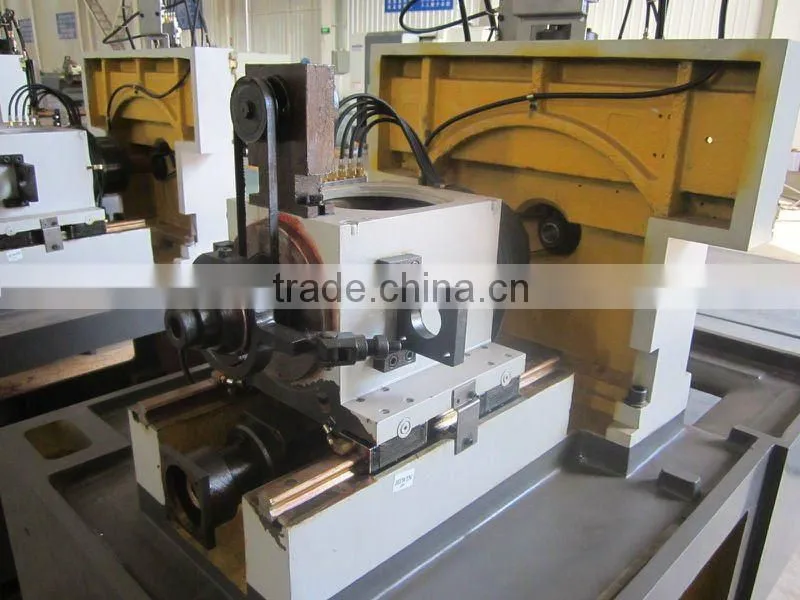

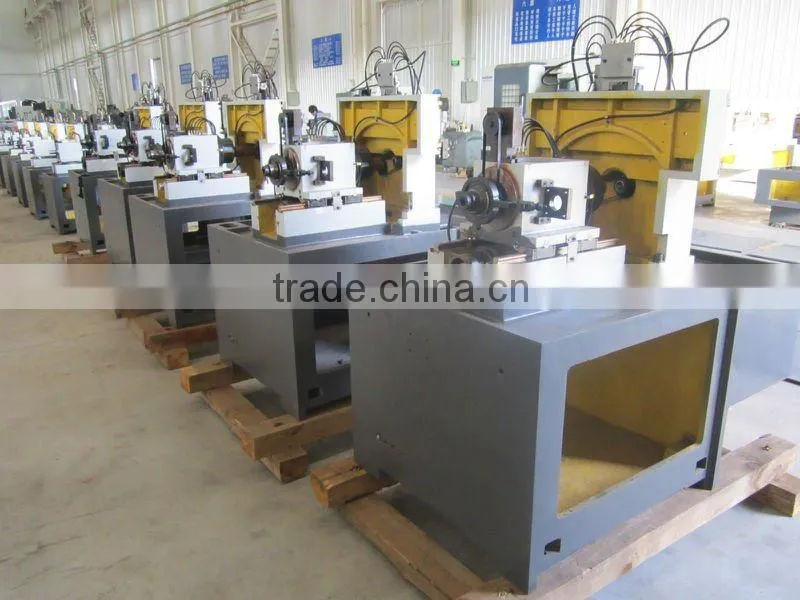

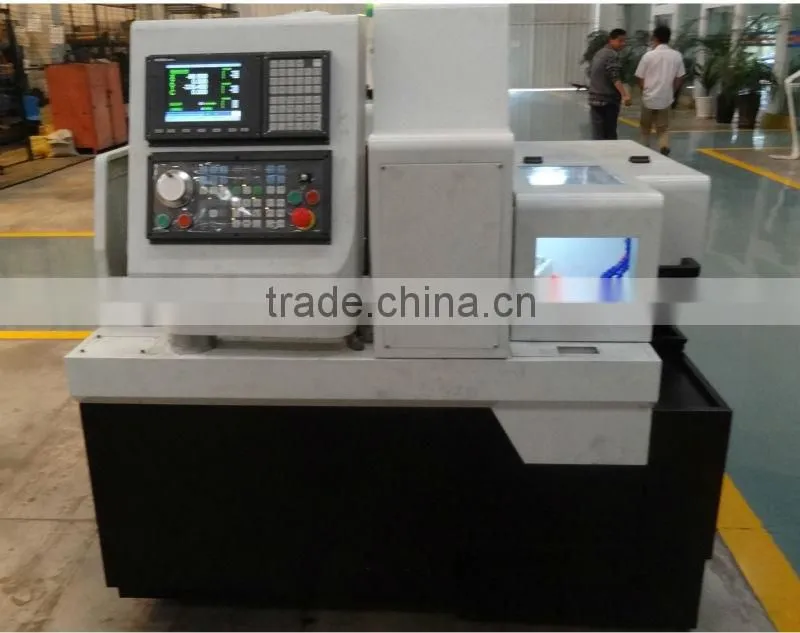

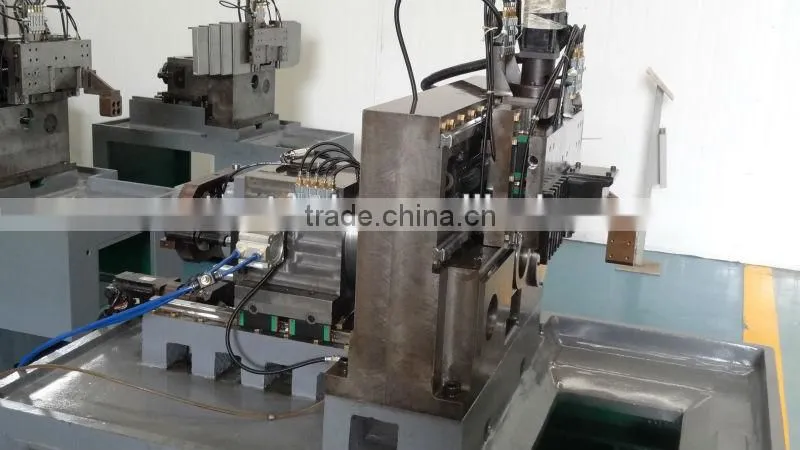

SMARTECH CNC LATHE FRAME
- MACHINE FEATURE:
1 High-class casting processed by resin sand and wood mould;
2 Imported ball screw and linear guide;
3 Electronic one-piece spindle;
4 Pneumatic clamping collets;
5 Imported X/Y/Z couplings;
6 Centralized maintenance-free automatic lubrication system;
7 Painting: Customized color
8 Packing: antirust and moisture-proof package, fasten on wooden pallet,
- OPTIONAL:
1 Full guarding;
2 Servo motors=YASKAWA;
3 CNC control system=LNC-T520i ;
4 Coolant pump;
5 Simple feeding machine;
- SPECS:
MODEL |
B15F / B20F |
Max bar stock diameter |
Φ15 / Φ20 |
Max processing parts length |
125 / 160 |
Max boreing diameter |
Φ6 / Φ8 |
Max tapping |
M6/ copper M8 |
Recommended total power |
6Kw |
Range of spindle speed |
200-8000r/min 200-10000r/min |
External turning tool |
5 tools |
Spec. of external turning tool |
10*10*120 |
Axial fixed tool |
4 tools |
Radial power (rotary) tool |
4 tools |
Max diameter of radial power (rotary) tool |
Φ7 |
Diameter of axial fixed tool |
Φ2 ~ Φ10 |
Number of axes controlled |
4 axes |
Min mechanical resolution |
0.001 / X1(0.0005) |
Rotary speed of milling tool |
50~5000 r/min |
|
|
Cutting speed |
1-6000 mm/min |
Rapid feed rate X axis |
20 m/min |
Rapid feed rate Y1, Z1, X2, Z2 axis |
30 m/min |
X1, Y, Z2 axis servo motor rated torque |
1.27 N.M |
Z1, Z2 axis servo motor rated torque |
2.39 N.M |
Max. holding diameter of sub-spindle |
15/20 mm |
Center height of spindle |
950 |
Power of spindle motor |
3 Kw |
Power of servo motor |
0.4 Kw / 0.75 Kw |
Power of milling (rotary) tool |
0.4 Kw |
Power of coolant pump |
0.25 Kw |
Power of lubrication motor |
25 W |
Total power |
14 KVA |
Pneumatic pressure |
0.45 Mpa |
Pneumatic flow |
40 L |
Volumn of oil |
60 L |
Recommended milling unit head speed |
50-5000(servo) |
Dimension (LxWxH) |
1610x1000x1600 |
Net Weight |
1450 kg |
