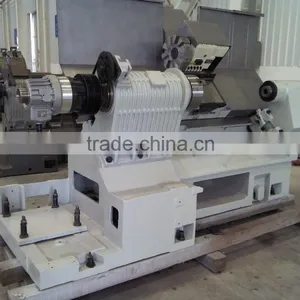

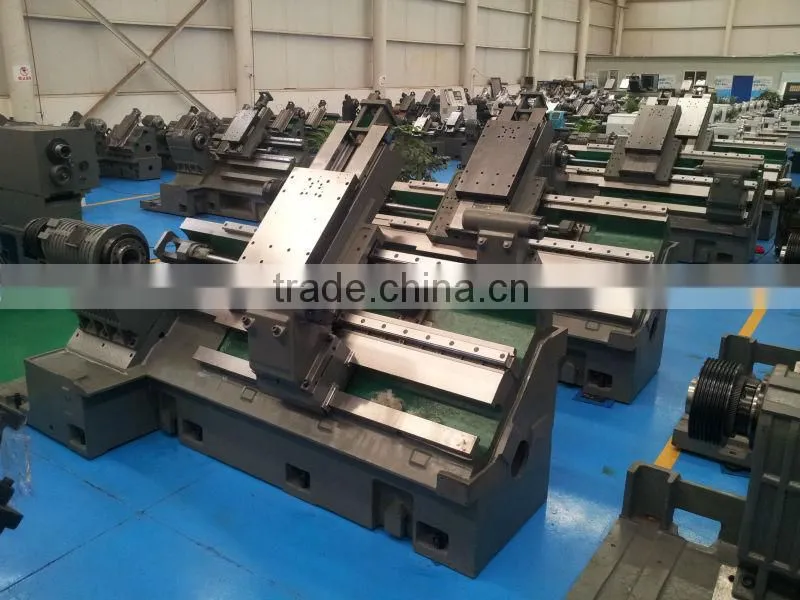

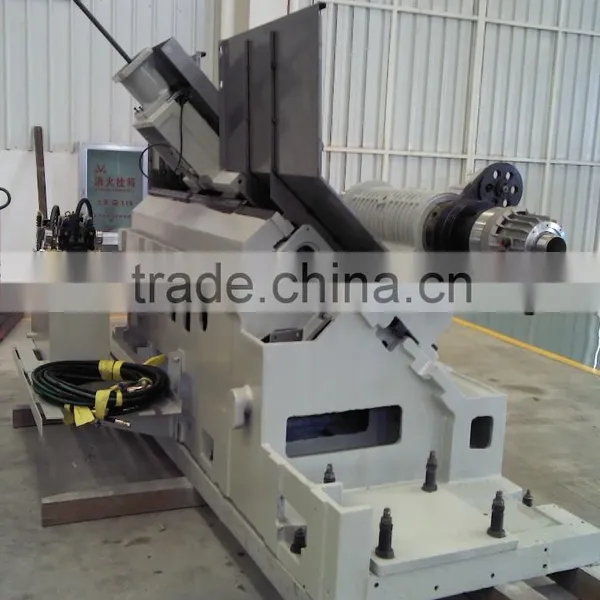

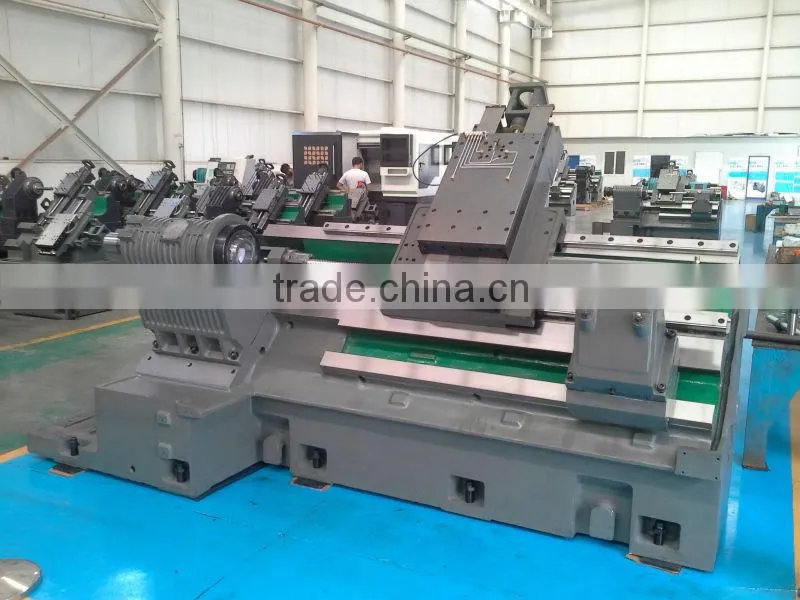

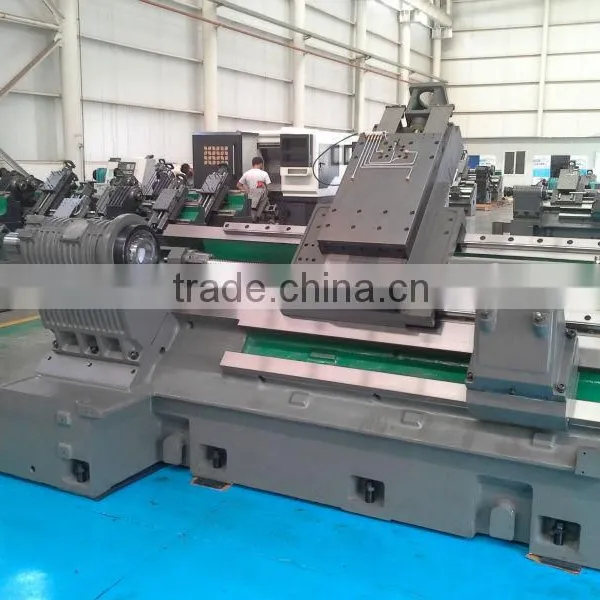

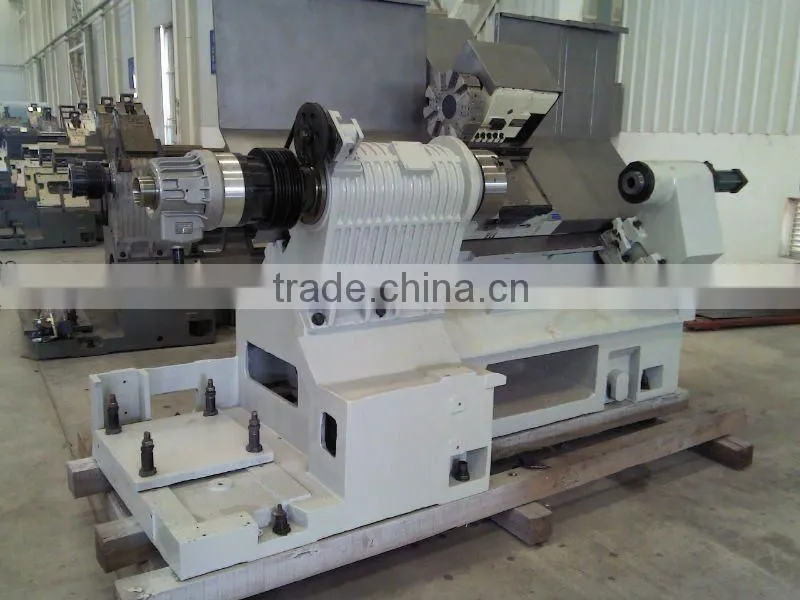

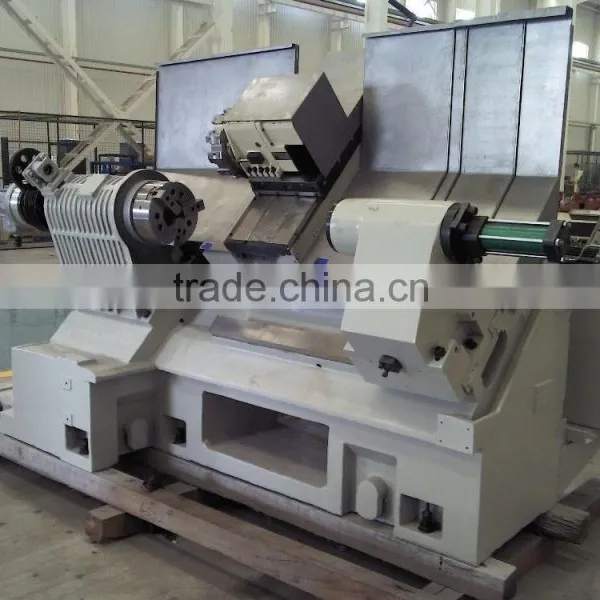

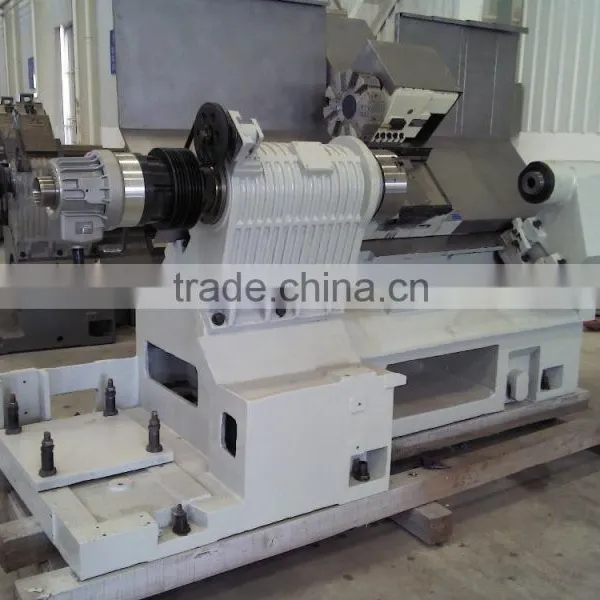

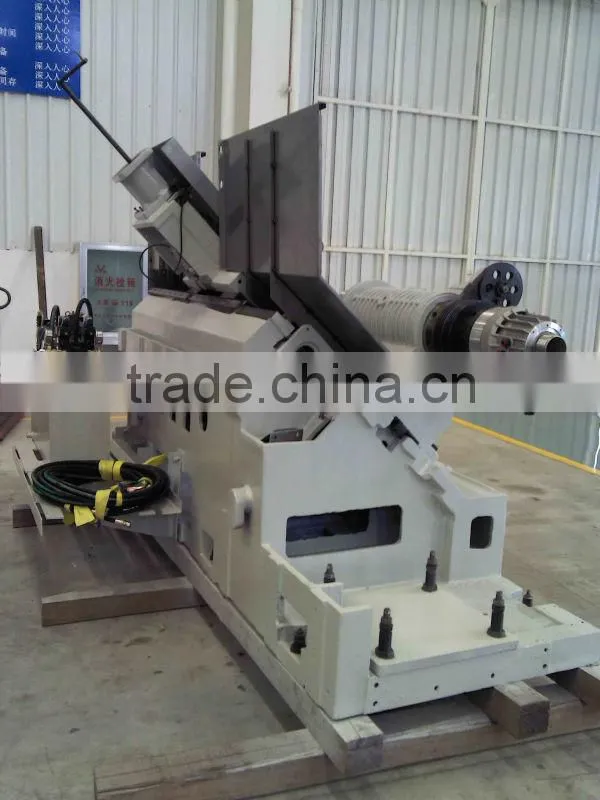

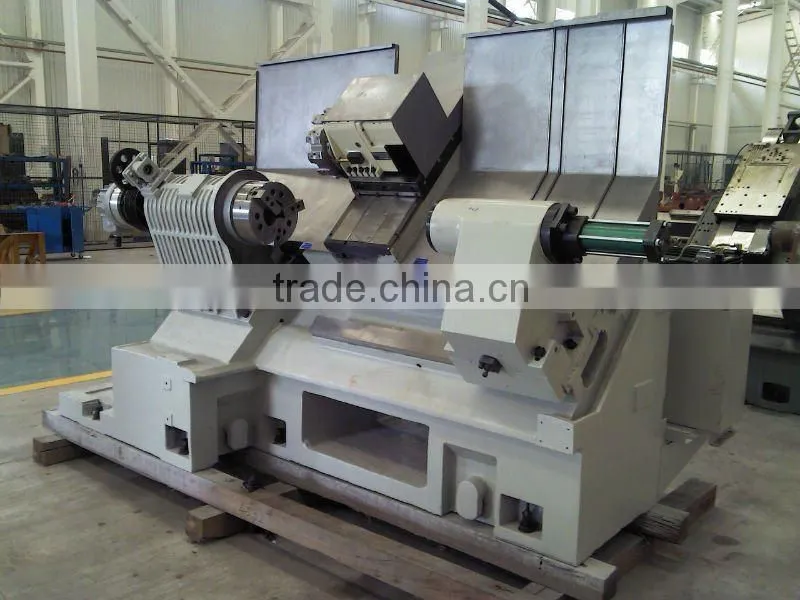

SMARTECH CNC LATHE FRAME
- MACHINE FEATURE:
1 High-class casting processed by resin sand and wood mould;
2 Imported ball screws sets, linear guide and bearing;
3 Hydraulic tailstock;
4 Imported coupling;
5 Integrated spindle;
6 Stainless steel telescopic protection on X and Z axes;
7 Centralized maintenance-free automatic lubrication system;
- OPTIONAL:
1 Full guarding;
2 Hydraulic turret;
3 Hydraulic cylinder and chuck;
4 Hydraulic unit;
- SPECS:
MODEL |
TCK4550 |
Max swing diameter over bed |
Φ500 |
Max turning diameter |
Φ500 |
Max swing diameter over toolpost |
Φ320 |
Max turning length |
580 |
Distance between centers |
|
Spindle nose spec |
A2-8 |
Spindle motor recommended |
11kw/22kw |
Spindle speed (max) |
2600rpm |
Spindle Bore |
Φ87 |
Bar capacity |
Φ72 |
X axis travel |
250 |
X axis motor recommended |
12Nm |
Z axis travel |
620 |
Z axis motor recommended |
15Nm |
Dimension (LxWxH) |
2580x1040x1460 |
Net Weight |
3500kg |

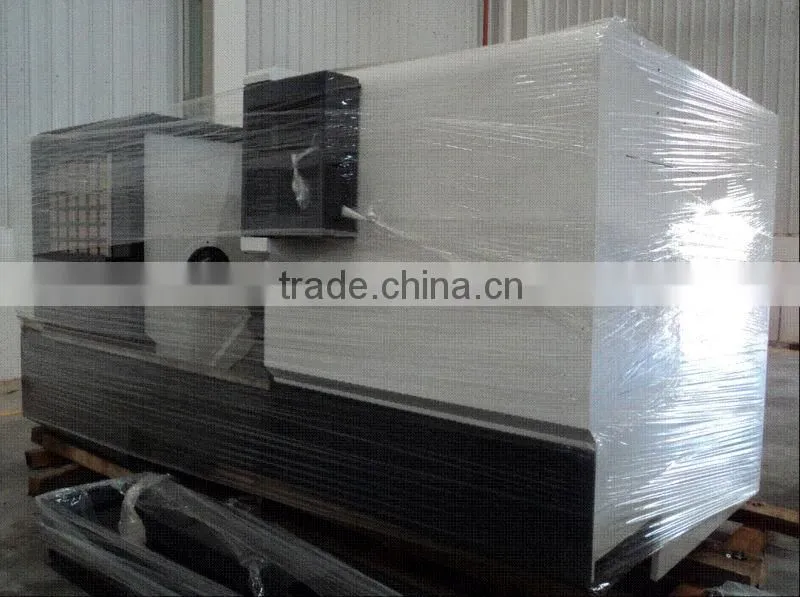

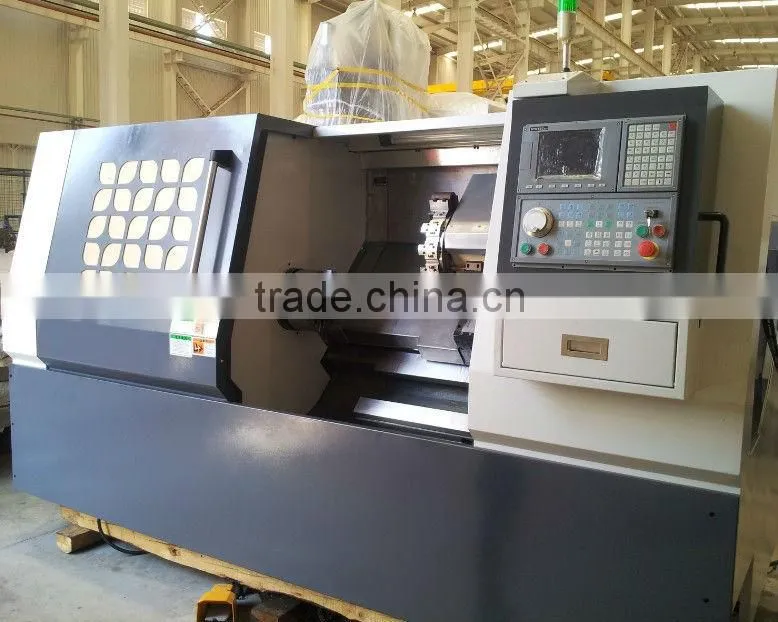

Standard Guarding 1:
Guarding Option 2nd:
