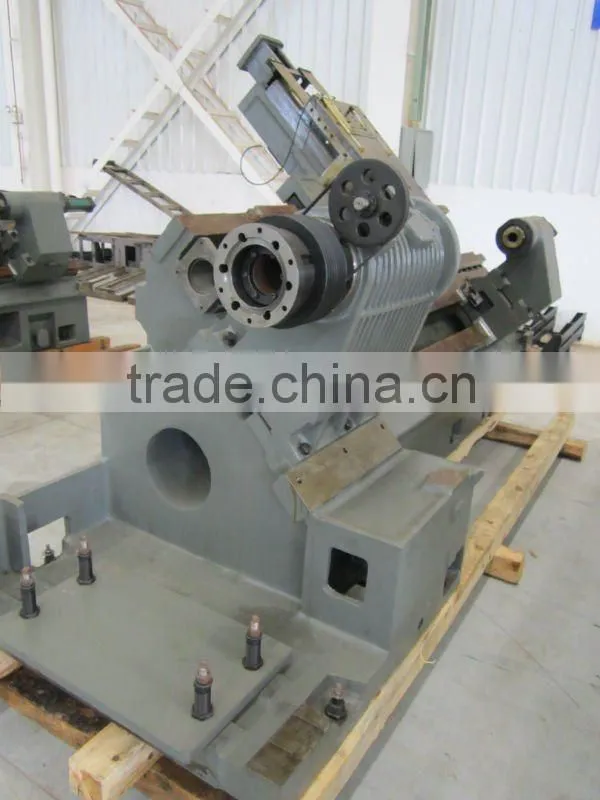

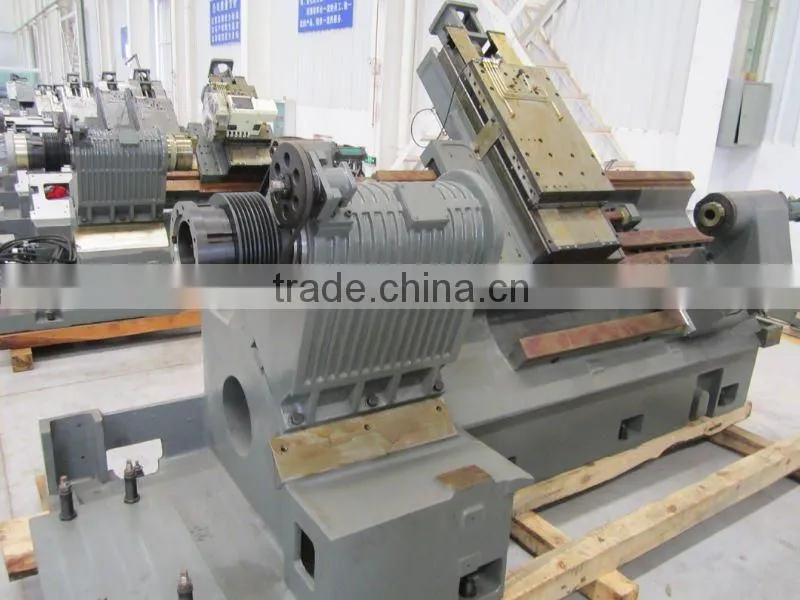

CNC Lathe Frame;CK4558L

Name: CNC Lathe Frame;CK4558L
Brand: SMARTECH
SKU: 123973019
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Turning Center

CNC or Not:

CNC

Smartech Machinery & Equipment Co., Ltd.(Shenzhen)

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN CHINA

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Turning Center

CNC or Not CNC

Place of Origin Yunnan, China

Brand Name SMARTECH

Model Number CK4558L

Specifications

1 high-class quality;
2 competitive price;
3 high machining precision;
4 short delivery time;

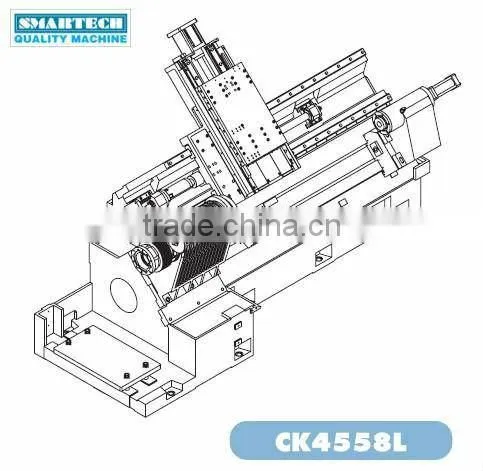

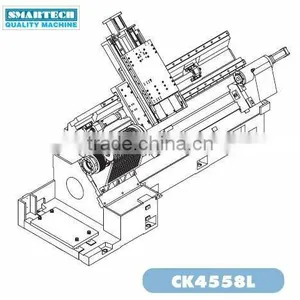

SMARTECH CNC LATHE FRAME

1 High-class casting processed by resin sand and wood mould;

2 Imported ball screws sets, linear guide and bearing;

3 Hydraulic tailstock;

4 Imported coupling;

5 Integrated spindle;

6 Stainless steel telescopic protection on X and Z axes;

7 Centralized maintenance-free automatic lubrication system;

1 Full guarding;

2 Hydraulic turret;

3 Hydraulic cylinder and chuck;

4 Hydraulic unit;

MODEL	CK4558L
Max swing diameter over bed	Φ580
Max turning diameter	Φ580
Max swing diameter over toolpost	Φ360
Max turning length	960
Distance between centers	1320
Spindle nose spec	A2-8
Spindle motor recommended	11kw/22kw
Spindle speed (max)	2600rpm
Spindle Bore	Φ87
Bar capacity	Φ72
X axis travel	350
X axis motor recommended	15Nm
Z axis travel	1120
Z axis motor recommended	20Nm
Dimension (LxWxH)	3170x1180x1700
Net Weight	4800kg
