Help CenterLathe K520
Related Products

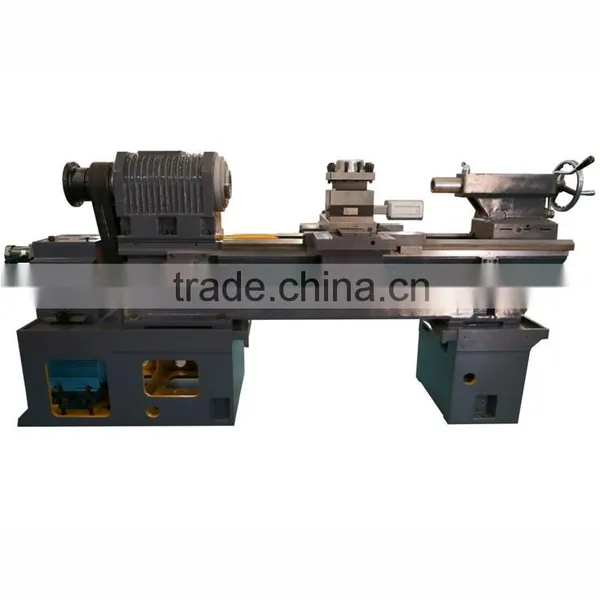

SMARTECH CNC LATHE FRAME
STANDARD COMPONENTS:
1 High-class casting processed by resin sand and wood mould;
2 Imported ball screws sets, box-type guideways;
3 Japan NSK or Chinese HRB bearing;
4 Imported R&W coupling;
5 Independent headstock or gear-type headstock;
6 Mechanical tailstock;
7 Centralized maintenance-free automatic lubrication system.
- OPTIONAL:
1 Full guarding;
2 4-position tool post;
3 Manual chuck;
4. Hydraulic cylinder and chuck;
5. Hydraulic tailstock;
6 Hydraulic unit.
- SPECS:
MODEL |
K520 |
Max swing diameter over bed |
Φ520 |
Max turning diameter |
Φ500 |
Max swing diameter over toolpost |
Φ315 |
Max turning length |
750/1000/1500/2000 |
Spindle nose spec |
A2-8 |
Chuck Recommended (optional) |
254 |
Spindle Motor recommended |
7.5 kw |
Spindle speed (max) |
2500rpm |
Spindle Bore |
Φ82 |
Spindle Taper |
1:20 |
Span between Z Guides |
390 |
Span between X Guides |
210 |
X axis Travel |
295 |
X/Z Rapid Traverse Rate |
4/8 m/min |
Tailstock quill diameter |
Φ75 |
Taper of Quill |
MT-#5 |
Dimension (LxWxH) |
2150*1300*1700mm |
Net Weight |
3000kg |
