Help CenterCNC Lathe TK6136
Related Products

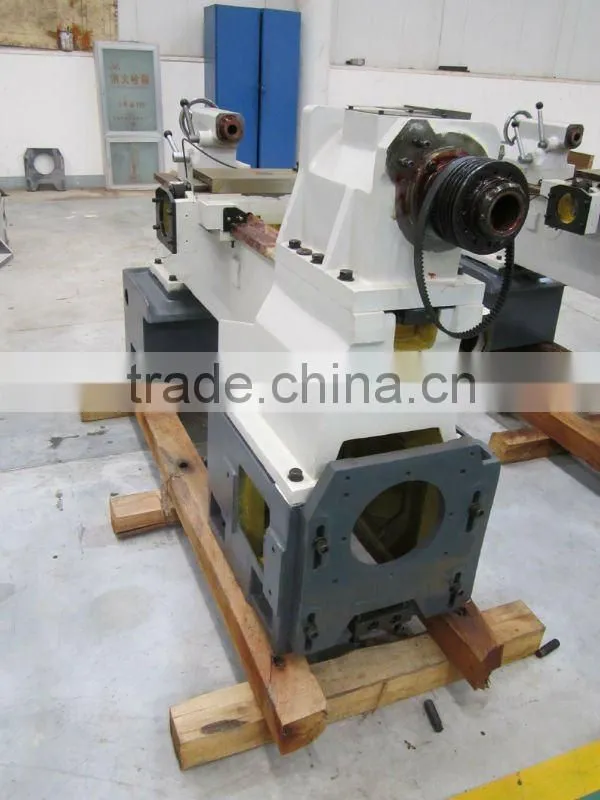

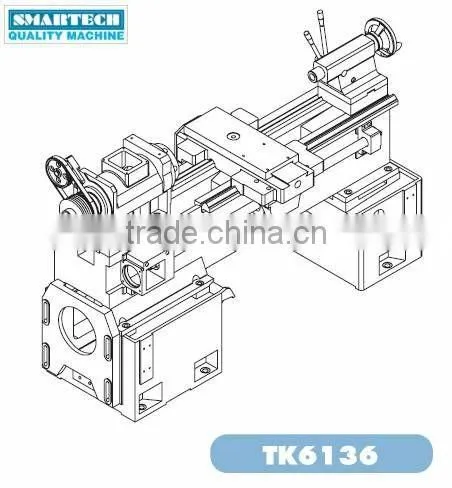

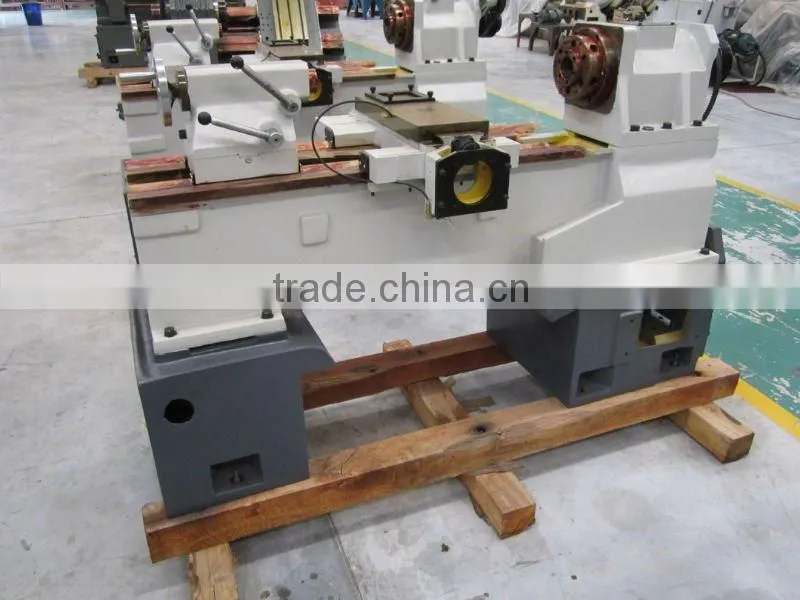

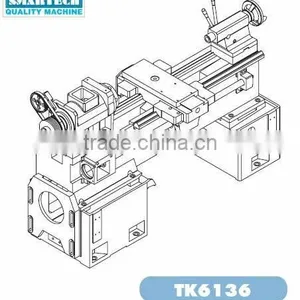

SMARTECH CNC LATHE FRAME
- MACHINE FEATURE:
1 High-class casting processed by resin sand and wood mould;
2 Imported ball screws sets, linear guide and bearing;
3 Hydraulic tailstock;
4 Imported coupling;
5 Integrated spindle;
6 Stainless steel telescopic protection on X and Z axes;
7 Centralized maintenance-free automatic lubrication system;
- OPTIONAL:
1 Full guarding;
2 Hydraulic turret;
3 Hydraulic cylinder and chuck;
4 Hydraulic unit;
- SPECS:
MODEL |
TK6136 |
Max swing diameter over bed |
Φ420 |
Max turning diameter |
Φ400 |
Max swing diameter over toolpost |
Φ220 |
Max turning length |
600/750 |
Distance between centers |
600/750 |
Spindle nose spec |
A-6 |
Spindle motor mounting |
Horizontal |
Spindle speed (max) |
75-2500rpm |
Spindle Bore |
Φ52 |
Bar capacity |
Φ48 |
X axis Ball Screw Spe. |
FYND-2004-P3 |
Z axis Ball Screw Spe. |
FYND-3206-P3 |
Tailstock quill diameter |
Φ60 |
Quill Stroke |
100 |
Dimension (LxWxH) |
1800x810x1315 |
Net Weight |
1400/1470kg |
