Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > CNC Lathe Frame;CK4530

CNC Lathe Frame;CK4530

CNC Lathe Frame;CK4530 thumbnail-1
CNC Lathe Frame;CK4530 photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Turning Center
CNC or Not:
CNC
Contact Supplier Request Quote Chat Now
Smartech Machinery & Equipment Co., Ltd.(Shenzhen)
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Turning Center
CNC or Not CNC
Place of Origin Yunnan, China
Brand Name SMARTECH
Model Number CK4530

Specifications

1 high-class quality;
2 competitive price;
3 high machining precision;
4 short delivery time;

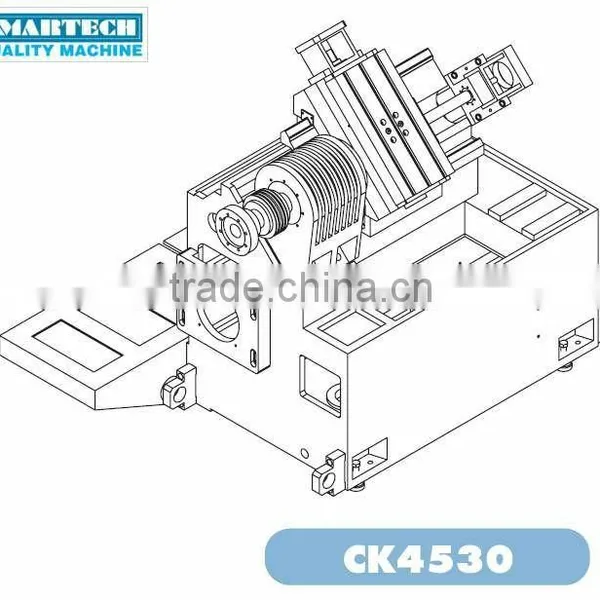

SMARTECH CNC LATHE FRAME

  • MACHINE FEATURE:

1     High-class casting processed by resin sand and wood mould;

2     Imported ball screws sets, linear guide and bearing;

3     Hydraulic tailstock;

4     Imported coupling;

5     Integrated spindle;

6     Stainless steel telescopic protection on X and Z axes;

7     Centralized maintenance-free automatic lubrication system;

  • OPTIONAL:

1     Full guarding;

2     Hydraulic turret;

3     Hydraulic cylinder and chuck;

4     Hydraulic unit;

  • SPECS:

MODEL

CK4530

Max swing diameter over bed

Φ320

Max turning diameter

Φ320

Max swing diameter over toolpost

Φ80

Max turning length

250

Distance between centers



Spindle nose spec

A2-4

Spindle motor recommended

5.5kw

Spindle speed (max)

4500rpm

Spindle Bore

Φ41

Bar capacity

                       Φ30

X axis travel

250

X axis motor recommended

8NM

Z axis travel

220

Z axis motor recommended

8NM

Dimension (LxWxH)

1500x1070x1300

Net Weight

1500kg
