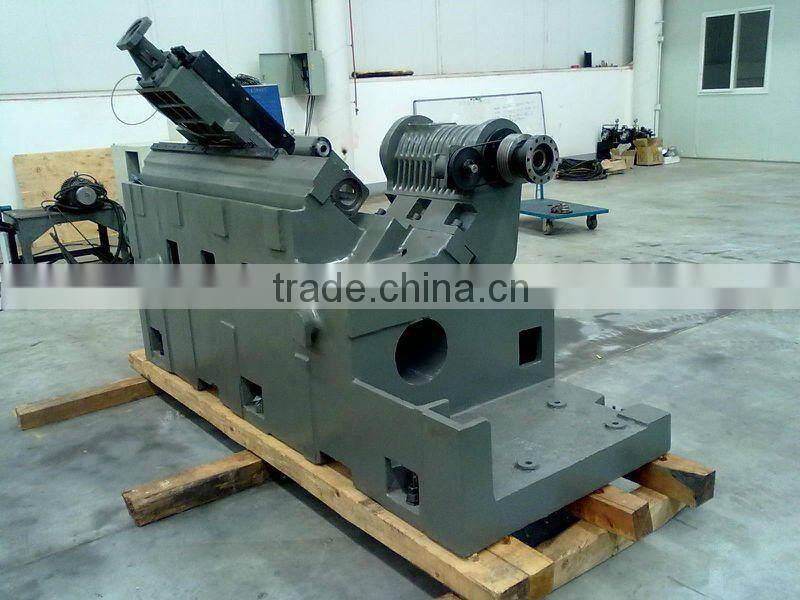

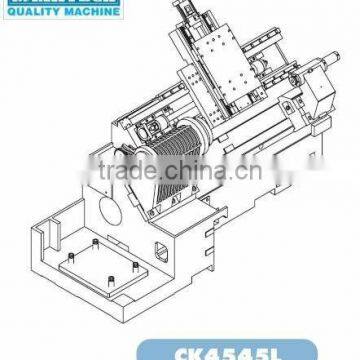

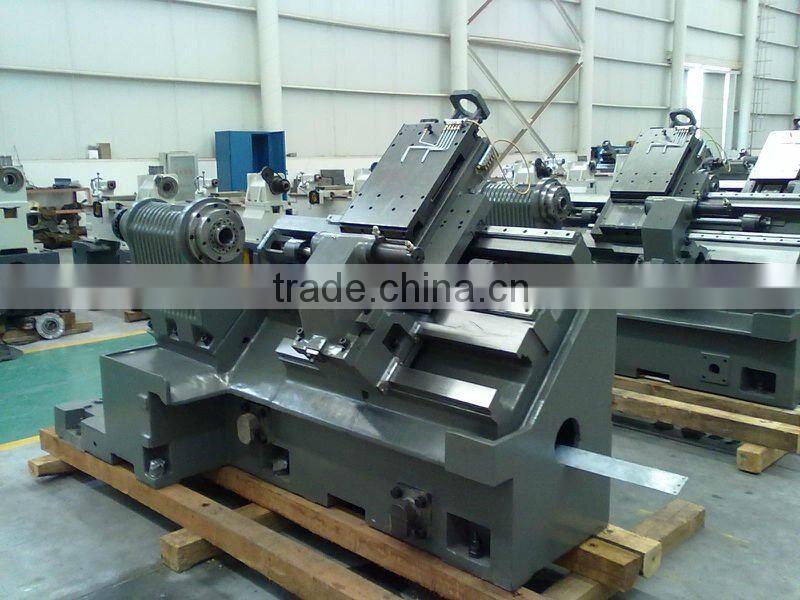

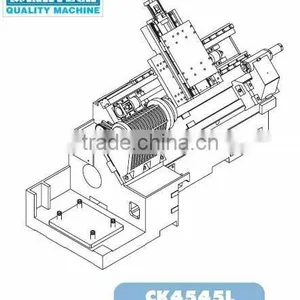

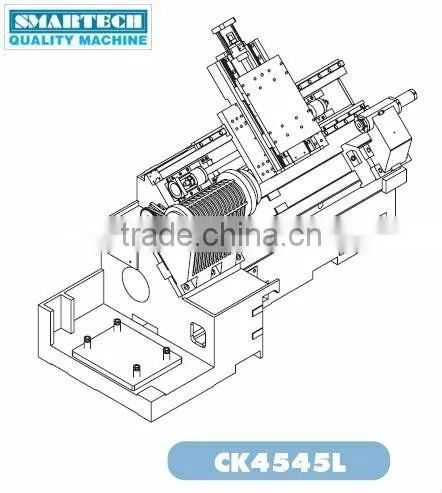

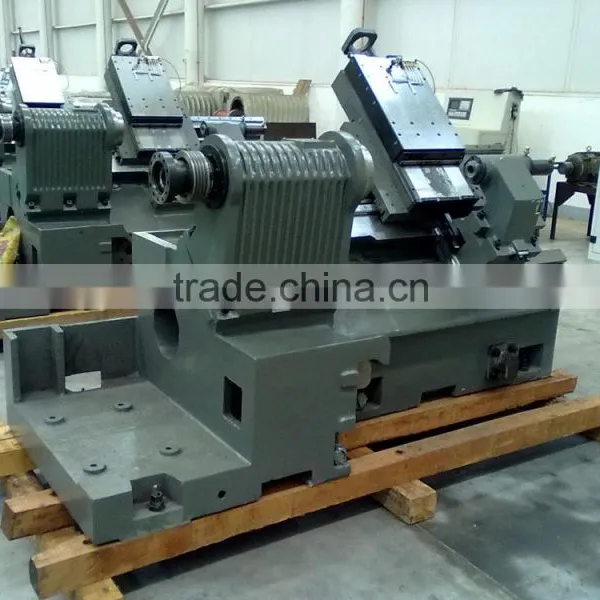

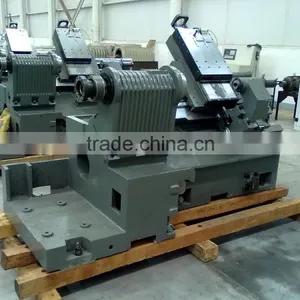

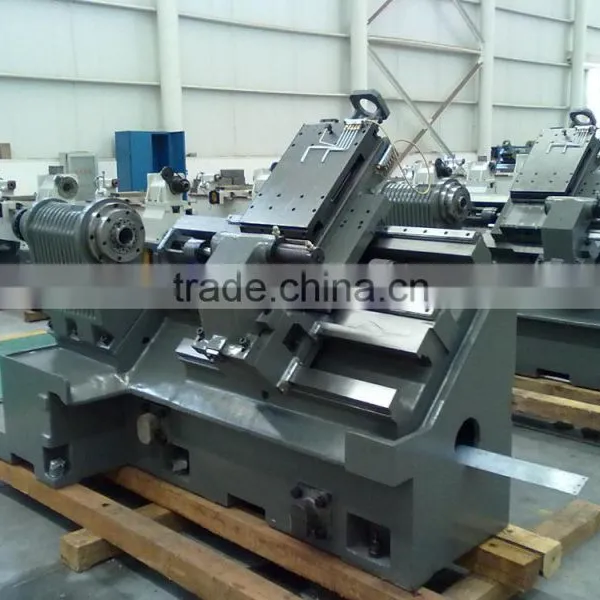

SMARTECH CNC LATHE FRAME
- MACHINE FEATURE:
1 High-class casting processed by resin sand and wood mould;
2 Imported ball screws sets, linear guide and bearing;
3 Hydraulic tailstock;
4 Imported coupling;
5 Integrated spindle;
6 Stainless steel telescopic protection on X and Z axes;
7 Centralized maintenance-free automatic lubrication system;
- OPTIONAL:
1 Full guarding;
2 Hydraulic turret;
3 Hydraulic cylinder and chuck;
4 Hydraulic unit;
- SPECS:
MODEL |
CK4545L |
Max swing diameter over bed |
Φ450 |
Max turning diameter |
Φ360 |
Max swing diameter over toolpost |
Φ300 |
Max turning length |
400 |
Distance between centers |
|
Spindle nose spec |
A2-5 |
Spindle motor recommended |
7.5kw/11kw |
Spindle speed (max) |
4500rpm |
Spindle Bore |
Φ49 |
Bar capacity |
Φ39 |
X axis travel |
165 |
X axis motor recommended |
9Nm |
Z axis travel |
500 |
Z axis motor recommended |
9Nm |
Dimension (LxWxH) |
2323x1000x1530 |
Net Weight |
3200kg |
