Linear Vertical Machining Center VMC-850

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Trading Company

Year Established:

2008

Factory Size:

Below 1,000 square meters

Smartech Machinery & Equipment Co., Ltd.(Shenzhen)

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Specifications

CNC VMC frame 650/850/950/1060/1155/1270/1370/1580/1690/1890
Including both Box guideday and Linear guideway for every model.

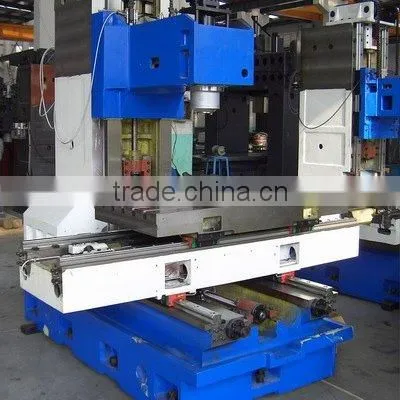

SMARTECH CNC VMC FRAME

1 Resin mould high-class casting ;

2 Top class imported ball screws sets and bearing ;

3 Imported spindle & tool clamping system ;

4 Imported drive connectors ;

5 Stainless steel telescopic protection on X/Y/Z axis ;

6 Central lubrication system ;

7 Coolant system ;

8 Top class imported linear slide ways ;

9 Y-axis drive motor backward located ;

1 Spindle speed optional choices: 10000rpm, 12000rpm, 15000rpm ;

2 Direct drive structure for main motor with spindle ;

3 Central oil coolant for the spindle ;

4 Coolant through spindle ;

5 ATC: drum type, arm type or chain type ;

6 Outside guarding: standard or special made according to clients design

7 Chip conveyor

8 CNC pre-installed for clients: whole full ready package delivery according to clients design

MODEL	VMC-850	VMC-1060
Table Size	460 x 950	600 x 1300
Travel X	800	1000
Y	500	600
Z	550	600
Spindle to Column Slideway	550	600
Spindle Nose to Table Surface	105-655	180-780
T-Slot(No-size/distance)	3-18/150	5-18/120
Spindle Taper/outside dia	BT40/150	BT40/150
Spindle Speed	8000rpm	8000rpm
X,Y axis Ball Screw Spec.	4008	4010
Z axis Ball Screw Spec.	4008	4010
X,Y & Z Motor Connection	Direct drive	Direct drive
Main motors recommended	5.5-7.5Kw	7.5-11Kw
Drive motors recommended X/Y/Z	10/12/12Nm	14/16/16Nm
Table Work Load	600 Kg	800 Kg
Net Weight	4000kg	7000kg
