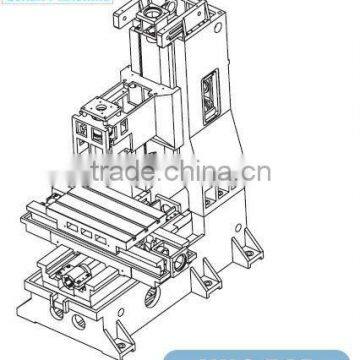

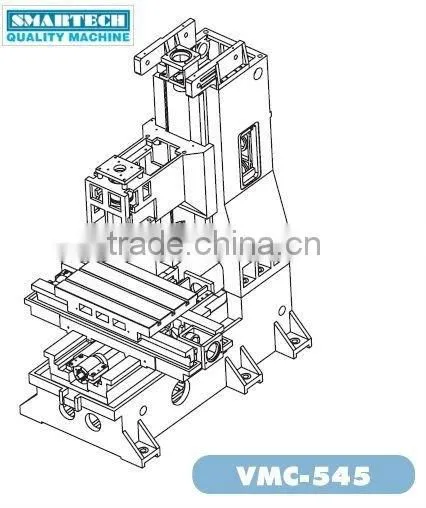

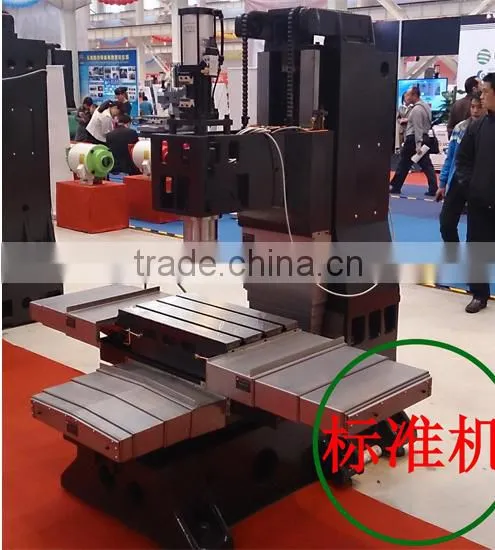

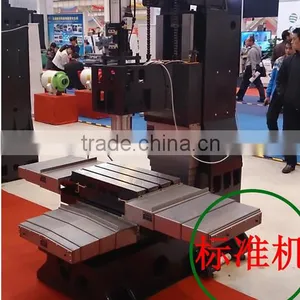

SMARTECH CNC VMC FRAME
- MACHINE FEATURE:
1 High-class casting by resin sand and wood mould;
2 Top class imported ball screws sets and bearing ;
3 Imported spindle & tool clamping system ;
4 Imported drive connectors ;
5 Stainless steel telescopic protection on X/Y/Z axis ;
6 Central lubrication system ;
7 Coolant system ;
8 Harden&ground on all slideways and Turcite-B coated with precise scraping;
- OPTIONAL:
1 Spindle from Taiwan
2 Direct drive structure for main motor with spindle ;
3 Central oil coolant for the spindle ;
4 Coolant through spindle ;
5 ATC: drum type, arm type or chain type ;
6 Outside guarding: standard or special made according to clients design
7 Chip conveyor
8 CNC pre-installed for clients: whole full ready package delivery according to clients design
- SPECS:
MODEL |
VMC-545 |
Table Size |
380x620 |
Travel X |
500 |
Y |
400 |
Z |
455 |
Spindle to Column Slideway |
460 |
Spindle Nose to Table Surface |
45-500 |
T-Slot(No-size/distance) |
3-16/110 |
Spindle Taper/outside dia |
BT30/120 |
Spindle Speed |
8000rpm |
X,Y axis Ball Screw Spec. |
32/05 |
Z axis Ball Screw Spec. |
32/05 |
X,Y & Z Motor Connection |
Direct drive |
Main motors recommended |
3.5Kw |
Drive motors recommended X/Y/Z |
6/6/6Nm |
Table Work Load |
250 Kg |
Net Weight |
2500kg |
*Also provide linear-type slide ways.
Machining Equipments Imported from Nicolas Correa Spain
A Bird's Eye View of Plant of Plant 2nd (Box-way VMC Plant)
ISO Certificate
