CNC BRIDGE TYPE MILLING MACHINE FRAME

Name: CNC BRIDGE TYPE MILLING MACHINE FRAME
Brand: SMARTECH
SKU: 123972371
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Yunnan, China

Brand Name:

SMARTECH

Model Number:

BMC-2015/3025/2015L/2222L/3022L/3025L/5025L/6232L/8238L

Smartech Machinery & Equipment Co., Ltd.(Shenzhen)

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Yunnan, China

Brand Name SMARTECH

Model Number BMC-2015/3025/2015L/2222L/3022L/3025L/5025L/6232L/8238L

Specifications

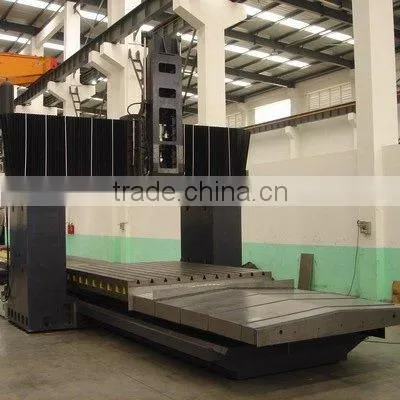

CNC BRIDGE TYPE MILLING MACHINE FRAME BMC-2015/3025/2015L/2222L/3022L/3025L/5025L/6232L/8238L, biggest X travel is 8200 mm

SMARTECH CNC BRIDGE TYPE MILLING MACHINE FRAME

1 Resin mould high-class casting ;

2 Top class imported ball screws sets and bearing ;

3 Imported spindle & tool clamping system ;

4 Imported gear box ;

5 Stainless steel telescopic protection on X axis ;

6 Bellow type protection on Y axis ;

7 Coolant system ;

8 Top class imported linear slide ways ;

9 Hydraulic counter balance system on Z axis ;

10 Harden & ground on friction slide ways and Turcite-B coated with precise scraping ;

11 Transmit ratio on X/Y/Z axis: X=2.5:1, Y=2:1, Z=2:1

MODEL		BMC-2015	BMC-3025
Table Size		1200x2100	2300x3000
Travel	X	2000	3000
	Y	1650	2700
	Z	800	1000
Distance between Columns		1650	2700
Spindle Nose to Table Surface		175-975	280-1280
T-Solt(No-size/distance)		7-22/150	11-28/200
Spindle Taper/outside diameter		BT50/190	BT50/190
Spindle Speed	With Gear Box	3000rpm	3000rpm
	With ZF Gear Box	6000rpm 1:1,4:1	6000rpm 1:1,4:1
	Standard	6000rpm(Direct Drive)	6000rpm(Belt Drive) 1.5:1
X axis Ball Screw Spec.		6310	R8016
Y axis Ball Screw Spec.		5010	R6316
Z axis Ball Screw Spec.		5010	R5010
X slide ways Spec.		Double V Shape way	One V & One FlateShape way
Y1/Y2 liner slide ways Spec.		RUE55EHL/RUE55EL	RUE55/RUE55
Z slide ways Spec.		Box way	Box way
X,Y & Z Motor Connection		Belt and Pulley	Belt and Pulley
Main motors recommended		22Kw	30Kw
Drive motors recommended X/Y/Z		40/30/30Nm	60~100/40/40Nm
Table Work Load		3000 Kg	10000 Kg
Net Weight		25000kg	42000kg
