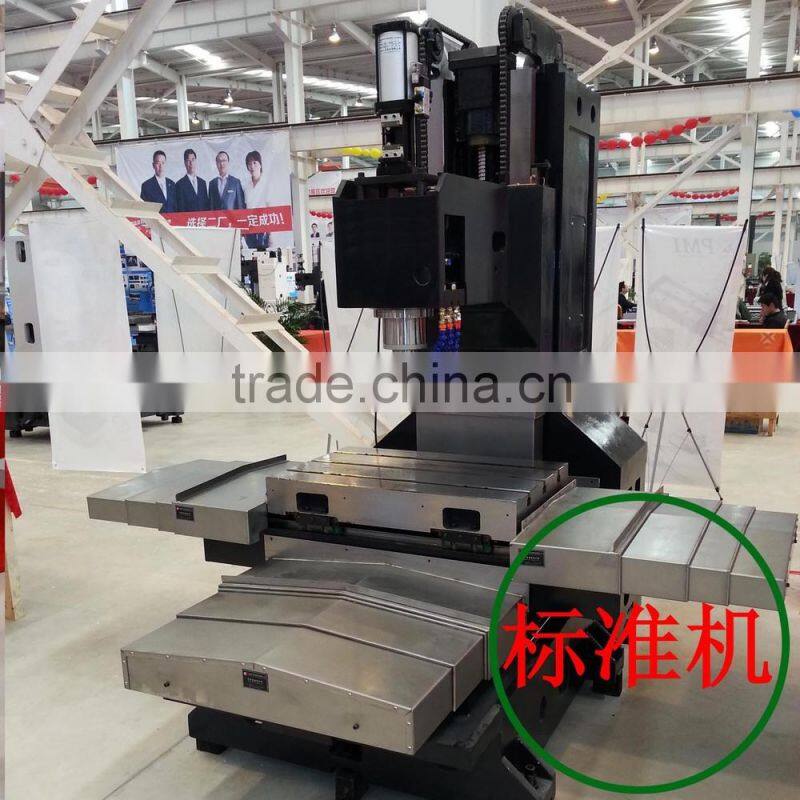

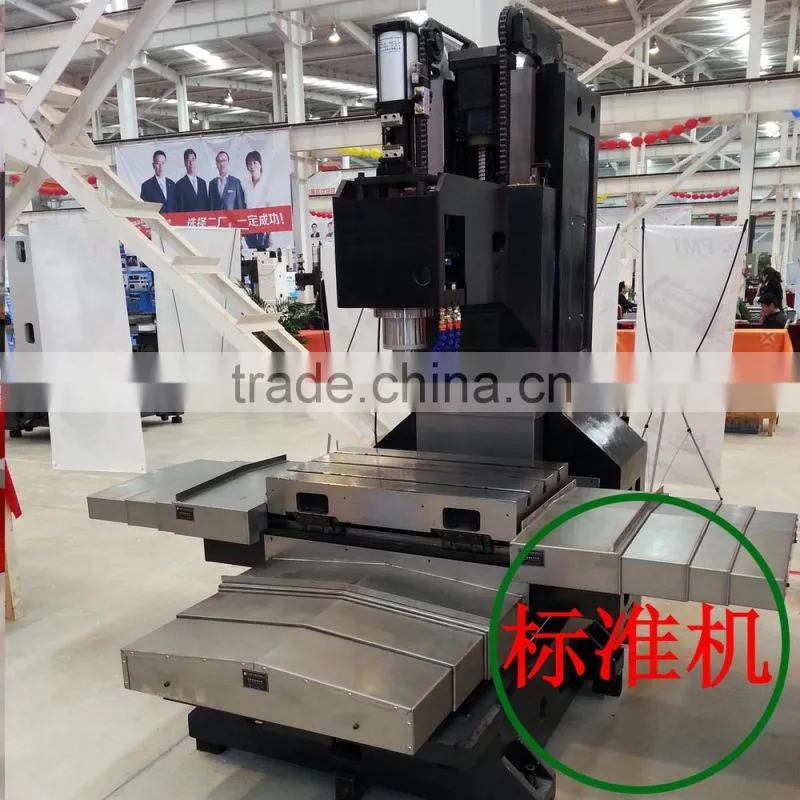

SMARTECH CNC VMC FRAME
- MACHINE FEATURE:
1 High-class casting by resin sand and wood mould;
2 Top class imported ball screws sets and bearing ;
3 Imported spindle & tool clamping system ;
4 Imported drive connectors ;
5 Stainless steel telescopic protection on X/Y/Z axis ;
6 Central lubrication system ;
7 Coolant system ;
8 Harden&ground on all slideways and Turcite-B coated with precise scraping;
- OPTIONAL:
1 Spindle from Taiwan;
2 Direct drive structure for main motor with spindle ;
3 Central oil coolant for the spindle ;
4 Coolant through spindle ;
5 ATC: drum type, arm type or chain type ;
6 Outside guarding: standard or special made according to clients design
7 Chip conveyor
8 CNC pre-installed for clients: whole full ready package delivery according to clients design
- SPECS:
MODEL | VMC-650B |
Table Size | 420 x 800 |
Travel X | 600 |
Y | 500 |
Z | 500 |
Spindle to Column Slideway | 540 |
Spindle Nose to Table Surface | 105-605 |
T-Slot(No-size/distance) | 5-18/80 |
Spindle Taper/outside dia | BT40/150 |
Spindle Speed | 8000rpm |
X,Y axis Ball Screw Spec. | 40/10 |
Z axis Ball Screw Spec. | 40/10 |
X,Y & Z Motor Connection | Direct drive |
Main motors recommended | 5.5w |
Drive motors recommended X/Y/Z | 8/10/10Nm |
Table Work Load | 600 Kg |
Net Weight | 3000kg |
*Also provide linear-type slide ways.
For more CNC frames, please visit our website

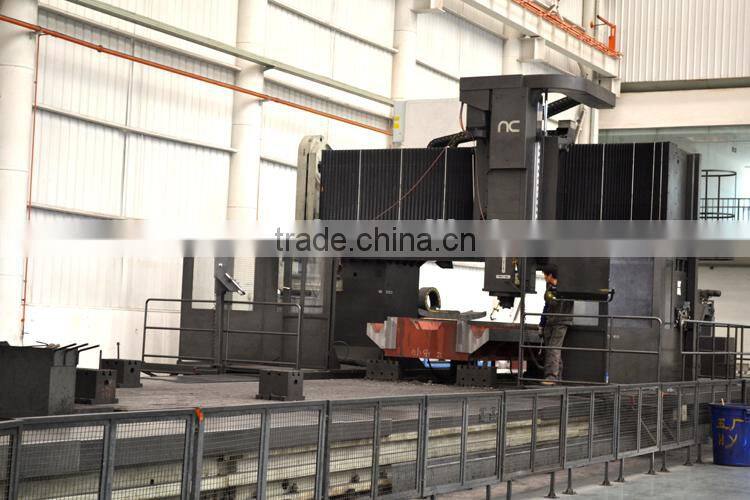

Machining Equipments Imported from Nicolas Correa Spain

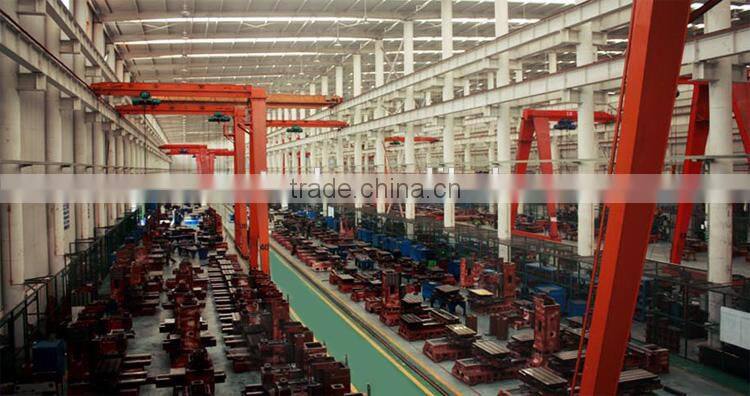

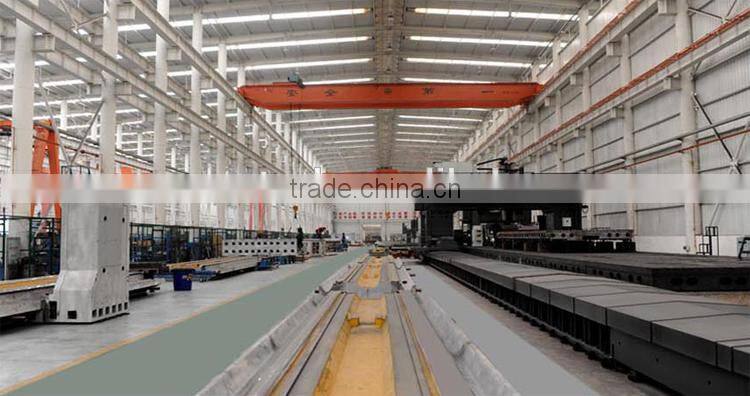

A Bird's Eye View of Plant of Plant 2nd (Box-way VMC Plant)
ISO Certificate
