Help CenterCNC Machine VMC 650
Related Products

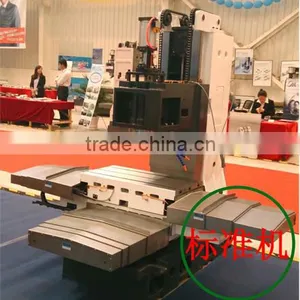

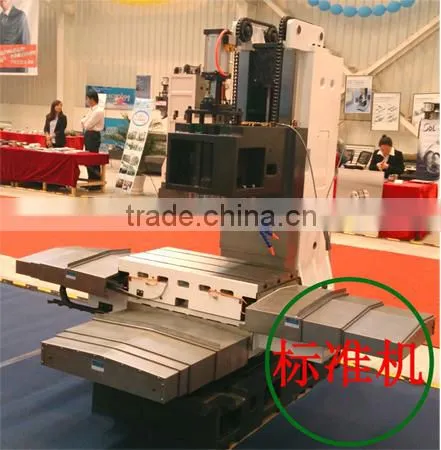

SMARTECH CNC VMC FRAME
- MACHINE FEATURES
1 Resin mould high-class casting ;
2 Top class imported ball screws sets and bearing ;
3 Imported spindle & tool clamping system ;
4 Imported drive connectors ;
5 Stainless steel telescopic protection on X/Y/Z axis ;
6 Central lubrication system ;
7 Coolant system ;
8 Top class imported linear slide ways ;
9 All Y axis drive motor backward located ;
- OPTIONAL:
1 Spindle speed optional choices: 10000rpm, 12000rpm, 15000rpm ;
2 Direct drive structure for main motor with spindle ;
3 Central oil coolant for the spindle ;
4 Coolant through spindle ;
5 ATC: drum type, arm type or chain type ;
6 Outside guarding: standard or special made according to clients design ;
7 Chip conveyor
8 CNC pre-installed for clients: whole full ready package delivery according to clients design
ITEMS |
SPECIFICATION |
|
l Table Size (mm) |
420 x 800 |
|
l Travel (mm) |
X |
650 |
Y |
400 |
|
Z |
480 |
|
l Spindle to Column Slideway (mm) |
480 |
|
l Spindle Nose to Table Surface (mm) |
80-560 |
|
l T-Slot(No-size/distance) (mm) |
3-18/135 |
|
l Spindle Taper/outside dia (mm) |
BT50/155 |
|
l Spindle Speed (rpm) |
8000 rpm |
|
l X,Y axis Ball Screw Spec. |
3206 |
|
l Z axis Ball Screw Spec. |
3206 |
|
l X,Y & Z Motor Connection |
Direct drive |
|
l Max X/Y/Z Rapid Feed rate mm/min |
12000 |
|
l Max X/Y/Z cutting Feed rate mm/min |
6000 |
|
l Main motors |
11Kw |
|
l Drive motors recommended X/Y/Z |
8/10/10Nm |
|
l Positioning accuracy mm |
0.005 / 300 |
|
l Repeating Positioning accuracy mm |
±0.005 / 300 |
|
l Table Work Load |
600 Kg |
|
I Floor space (L x W x H) mm |
2100 x 1950 x 2200 |
|
l Net Weight |
3000kg |
|
Machining Equipments Imported from Nicolas Correa Spain
A Bird's Eye View of Plant of Plant 2nd (Box-way VMC Plant)
ISO Certificate
