Specifications
CNC VMC frame 650/850/950/1060/1155/1270/1370/1580/1690/1890Including both Box guideday and Linear guideway for every model
.

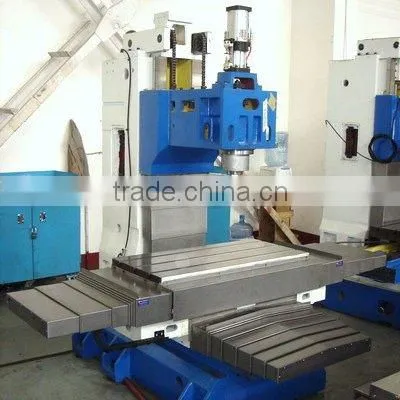

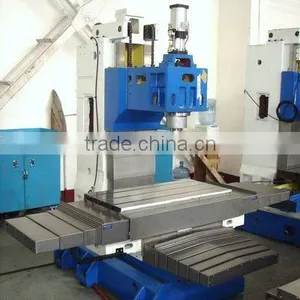

SMARTECH CNC VMC FRAME
- MACHINE FEATURE:
1 Resin mould high-class casting ;
2 Top class imported ball screws sets and bearing ;
3 Imported spindle & tool clamping system ;
4 Imported drive connectors ;
5 Stainless steel telescopic protection on X/Y/Z axis ;
6 Central lubrication system ;
7 Coolant system ;
8 Top class imported linear slide ways ;
9 All Y axis drive motor backward located ;
- OPTIONAL:
1 Spindle speed optional choices: 10000rpm, 12000rpm, 15000rpm ;
2 Direct drive structure for main motor with spindle ;
3 Central oil coolant for the spindle ;
4 Coolant through spindle ;
5 ATC: drum type, arm type or chain type ;
6 Outside guarding: standard or special made according to clients design
7 Chip conveyor
8 CNC pre-installed for clients: whole full ready package delivery according to clients design
- SPECS:
MODEL |
VMC-850 |
VMC-1060 |
Table Size |
460 x 950 |
600 x 1300 |
Travel X |
800 |
1000 |
Y |
500 |
600 |
Z |
550 |
600 |
Spindle to Column Slideway |
550 |
600 |
Spindle Nose to Table Surface |
105-655 |
180-780 |
T-Slot(No-size/distance) |
3-18/150 |
5-18/120 |
Spindle Taper/outside dia |
BT40/150 |
BT40/150 |
Spindle Speed |
8000rpm |
8000rpm |
X,Y axis Ball Screw Spec. |
4008 |
4010 |
Z axis Ball Screw Spec. |
4008 |
4010 |
X,Y & Z Motor Connection |
Direct drive |
Direct drive |
Main motors recommended |
5.5-7.5Kw |
7.5-11Kw |
Drive motors recommended X/Y/Z |
10/12/12Nm |
14/16/16Nm |
Table Work Load |
600 Kg |
800 Kg |
Net Weight |
4000kg |
7000kg |
*Also provide linear-type slide ways.
