Tube Drift
- tianjin shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shaanxi, China | Brand Name | Senwell | |
| Model Number | Size | Type | Other, tube drift | |
| Machine Type | Drilling Tool | Certification | AISI | |
| Material | Stainless Steel | Processing Type | Forging | |
| Use | Well Drilling |
Product Description

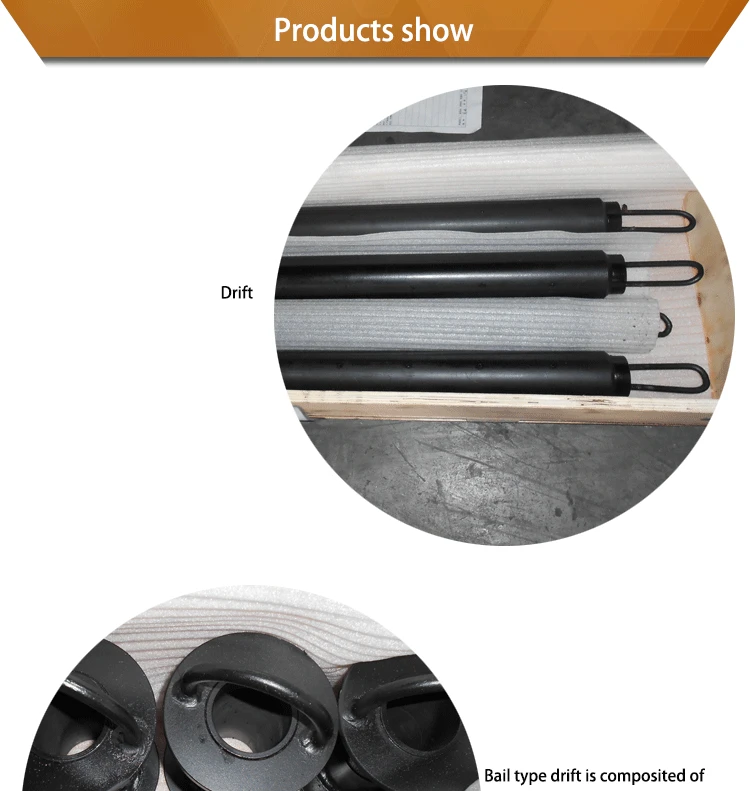

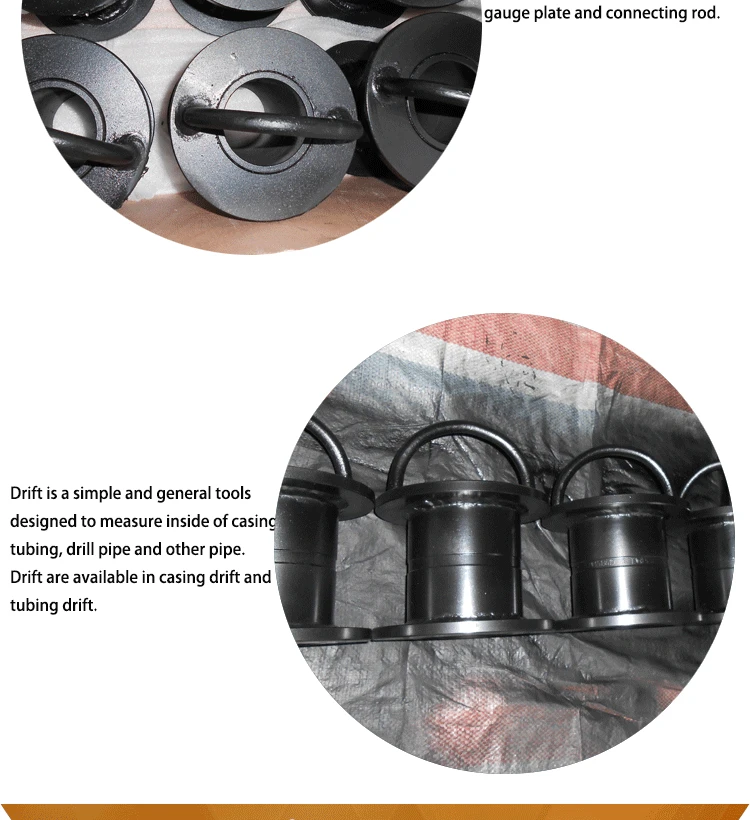

Tube drift
Driftis a simple and general tools designed to measure inside size of casing, tubing, drill pipe and other pipe. Drift are available in casing drift and tubing drift.
Detail Specification:
Technical specifications and parameters for Drift | ||||||
Casing drift(in) | 4 1/2 | 5 | 5 1/2 | 5 3/4 | 6 5/8 | 7 |
O.D.(mm) | 92-95 | 102-107 | 114-118 | 119-128 | 136-148 | 146-158 |
Length(mm) | 500 | 500 | 500 | 500 | 500 | 500 |
Up Conn. | NC26 2 3/8TBG | NC26 2 7/8TBG | NC31 2 7/8TBG | NC31 2 7/8TBG | NC31 2 7/8TBG | NC38 3 1/2TBG |
Down Conn. | NC26 2 3/8TBG | NC26 2 7/8TBG | NC31 2 7/8TBG | NC31 2 7/8TBG | NC31 2 7/8TBG | NC38 3 1/2TBG |
Technical specifications and parameters for Drift | ||||||
Tubing drift(in) | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 |
O.D.(mm) | 38 | 48 | 59 | 73 | 84 | 95 |
Length(mm) | 500 | 500 | 500 | 500 | 500 | 500 |
Pipe type | Specification(in) | Drift size | |
Length(mm) | Min. diameter(mm) | ||
Casing | ≤ 8 5/8” | 150 | 3.18 |
9 1/8”~13 3/8” | 305 | 3.97 | |
≥16” | 305 | 4.76 | |
Tubing | ≤ 2 7/8” | 1067 | 2.38 |
≥3 1/2” | 1067 | 3.18 | |
