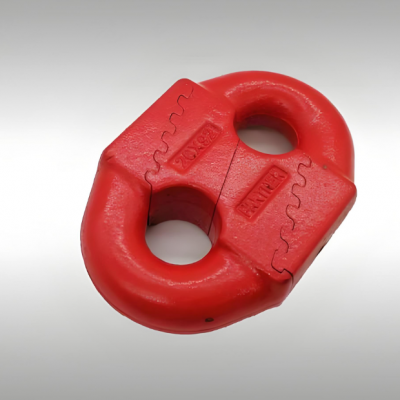

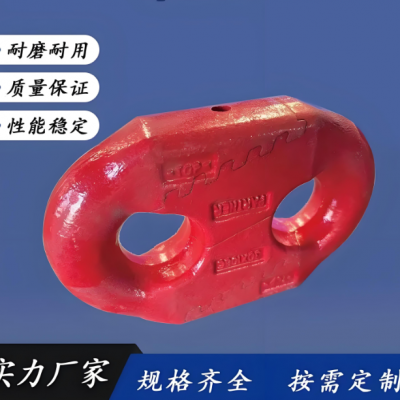

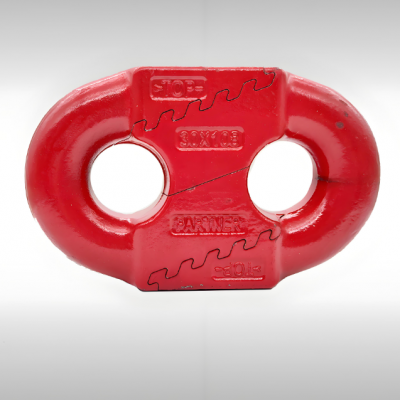

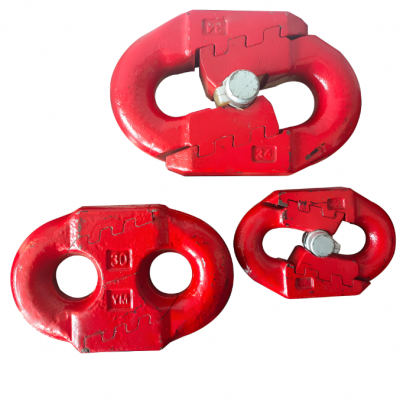

Product Name:Forging Parts Sawtooth Connector Connecting Ring Arc Gear Ring 22x86
1.Specifications（dxp）:22x86
2.d(mm):22±0.7
3.P(mm):86±0.9
4.L(max):132
5.A(min):24
6.B(max):85
7.C(max):27
8.Weight(kg):1.3
9.Mini Breaking Load(KN):610
10.Min Number of Cycles(next):40000
Use:Mainly used for chain connection of mining machinery (such as scraper conveyor, transfer machine, etc.), the chain is assembled and carried through the bite of ring and ring, ensuring the stable operation of the transmission and conveying functions of mining equipment.
Extended uses and scenarios
In addition to the mining field, this type of chain ring can also be applied to the chain transmission system of industrial machinery (such as conveying equipment in metallurgy and building materials industries), and the flexible connection of the chain is realized through the meshing structure of the ring, meeting the equipment's needs for load-bearing, wear resistance, and impact resistance.
