Product Name:

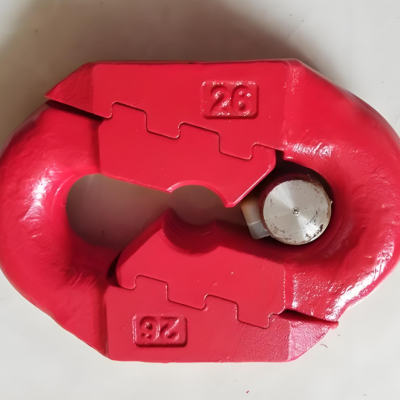

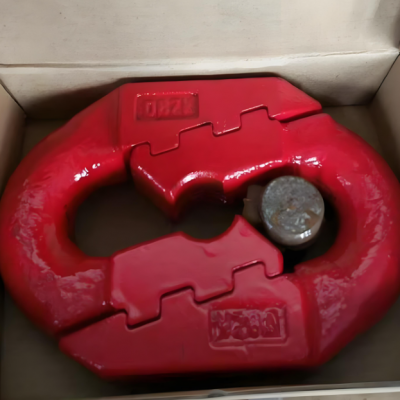

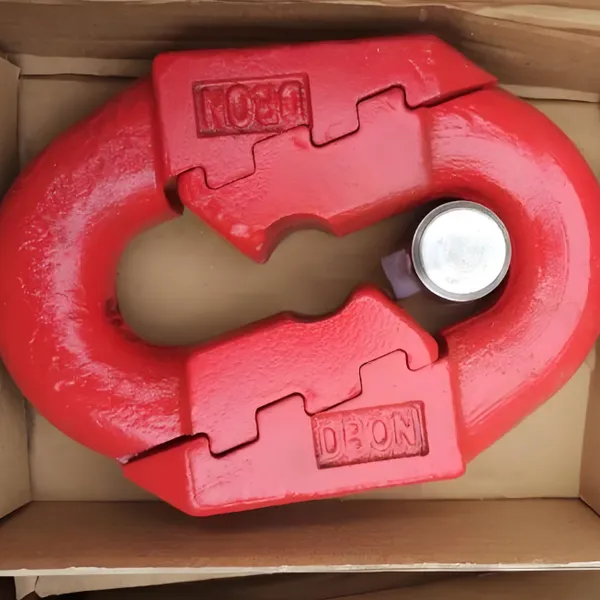

Hot-Forged Arc-Tooth Connecting Link 34x126 with Superior Impact Resistance for Conveyors
1.Specifications（dxp）:34x126
2.d(mm):34±1.0
3.P(mm):126±1.3
4.L(max):196
5.A(min):36
6.B(max):121
7.C(max):41
8.Weight(kg):4.4
9.Mini Breaking Load(KN):1450
10.Min Number of Cycles(next):40000
Use:Connecting rings for mine scraper conveyors, mainly used in underground coal mine scraper conveyor systems, are used to connect and fix the scraper chain, ensuring stable connection between chain links during the operation of the conveyor, and are one of the core connecting components of the scraper conveyor.
1.Det functions and scenarios
(1) Connection and fixation: The chain links of the scraper chain are firmly connected to prevent chain breakage and loosening during operation, the continuous and stable delivery of materials by the conveyor.
(2) Adapted scenarios: Specially designed for the working conditions of underground coal mine scraperors, it needs to withstand the traction and impact under heavy load and frequent start-stop, and has wear-resistant and fatigue-resistant characteristics, which is the core safety of mine conveying equipment.
