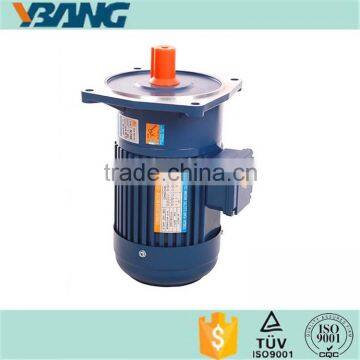

Single Phase Electric Motor With Reduction Gear

Single Phase Electric Motor with Reduction Gear

Application Fields:

Packaging machinery, printing machinery, corrugated box machinery, transportation machinery, food machinery, parking equipment, automatic warehouse, warehouse, chemical, textile, dyeing and finishing equipment.

Design characteristics:

1.Light weight .

2.The gear and the gear shaft precision is high.

3.Small volume , High torque.

4.TAIWAN design,

5.After 300-hour operation, please change the oil, and flush the gear uint with suitable detergents.

1. How to find the model I need?

  CS: If bought this product before, check the nameplate, if not, show us the details, for example, motor power, output peed or ratio.

2. Is it possible to produce zero backlash product?

 CS: Actually, no company can produce zero backlash product. Our standard is under 0.1

3. Does your company support customized product?

 CS: Professional R&D dept will try to meet your requirement.

4. What’s your quality assurance

 CS: In addition to the internal testing , we provide one year guarantee. Our mission: Any problems during running, firstly solve it, then discuss who will be be responsible for this issue.
