Sumitomo Cyclo Drive Gear Reducer

Hangzhou Obang Machinery Co., Ltd.
Sumitomo Cyclo Drive Gear Reducer thumbnail-1
Sumitomo Cyclo Drive Gear Reducer photo-1
US$ 49 - 4,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Gearing Arrangement:
Cycloidal
Output Torque:
70-20000N.m
Rated Power:
0.25-55kw
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai or Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Gearing Arrangement Cycloidal
Output Torque 70-20000N.m
Rated Power 0.25-55kw
Input Speed 1000-1500rpm
Output Speed 11-167rpm
Place of Origin Zhejiang, China
Model Number XWED
Brand Name YBANG

Sumitomo Cyclo Drive Gear Reducer

Product Description

OBANG produces YB..series gear motors with international advanced level, including YBR series helical gear motors, YBF parallel shaft helical gear motors, YBK series helical bevel gear motors, YBS series helial worm gear motors, YBH series helical gear units, YBB series bevel helical gear units, YBT series bevel steering gears, WP series helical worm speed reducer, NMRV speed reducers,B/X series cyclo drive reducers,SWL worm screw actuaters and other small parts.



Detailed instruction:

B, X series Planetary Cycloidal Reducer model and size:

B series planetary cycloidal reducer model : BL, BLD, BLY, BLE, BLED, BLEY, BLB, BLT, BLN, BLZ, BW, BWD,BWED, BWY, BWEY, BWE, BWB, BWN, BWT, BWZ

X series planetary cycloidal reducer model: XL, XLD, XLY, XLE, XLEY, XLED XW, XWD, XWY, XWE, XWEY, XWED

Single stage:B109, B0, B1, B2, B3, B4, B5, B6,B7, B8, B9, B12, B15, B18, B22, B27, B33, B39, B45, B45, B55, B65, B120, B150, B180, B220, B270, B330, B390, B450, B550, B650, X1, X2, X3, X4, X5, X6, X7, X7, X8, X9, X10, X11, X12

Double stage: B109, B10, B20, B30, B31, B41, B42, B52, B53, B63, B74, B84, B95

Single stage ratio: 7, 9, 11, 17, 23, 29, 35, 43, 59, 71, 87

Double stage ratio:99,121,187,289,391,473,595,391,473,595,731,841,1003,1225,1505,1849,2065,2537,3481,4189,5133,7569

Items: XWED

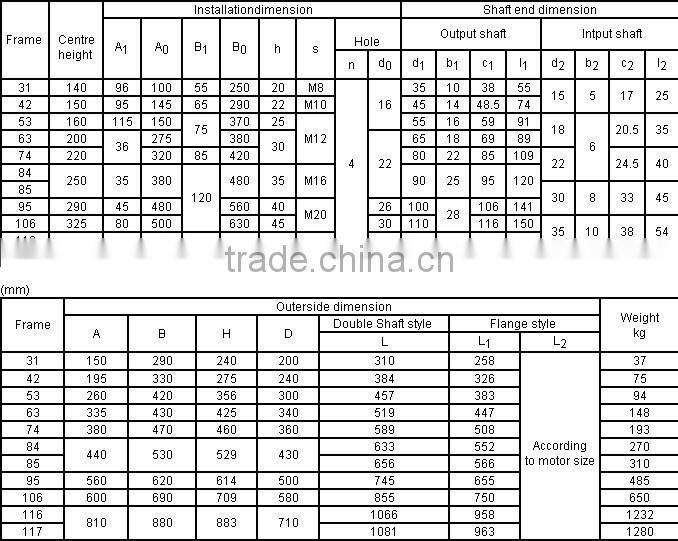

Appearance and installation dimension

Sumitomo Cyclo Drive Gear Reducer



Features:

1, cycloid reducer big reduction ratio, high efficiency: a reduction gear ratio is 9~87, the two-stage reduction gear ratio is 121 ~ 5133, multistage combination can reach tens of thousands, and the needle tooth meshing line type rolling friction, the meshing surface no relative sliding, so a reduction efficiency of 94%.



2, pin wheel reducer smooth running, low noise: the teeth contact at the same time when in operation, the coincidence degree high, stable running, strong overload capacity, low vibration and noise, a variety of models, small noise.



3, the use of reliable, long life: because the main part is made of high carbon alloy steel quenching (HRC58-62), and then grinding, and cycloid gear and pin gear set mesh transfer to the pin gear form rolling friction pair, friction coefficient is small, so that the meshing zone no relative sliding, wear small, so durable.



4, compact structure, small volume: compared with other reducer with the power of the above weight, small volume 1/3, as is the planetary transmission, the input shaft and the output shaft in the same axis, in order to obtain the smallest possible size.
