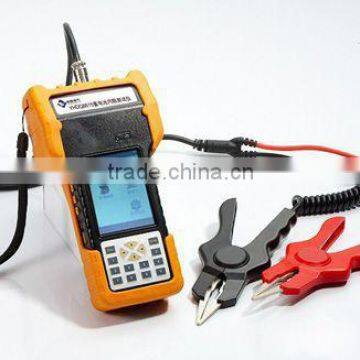

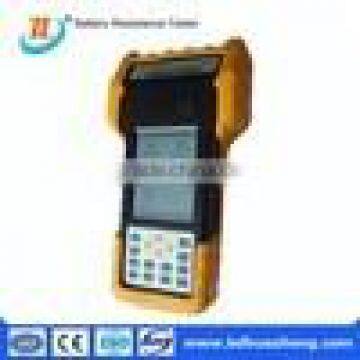

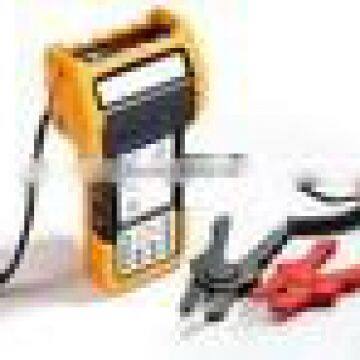

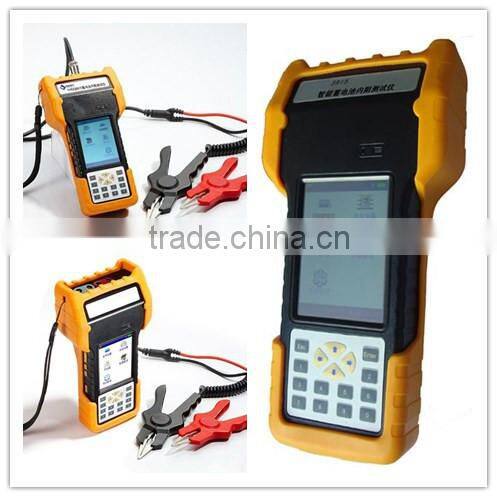

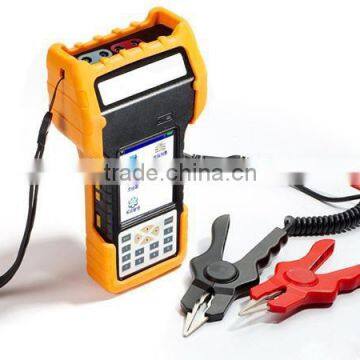

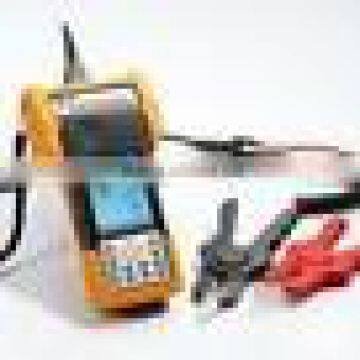

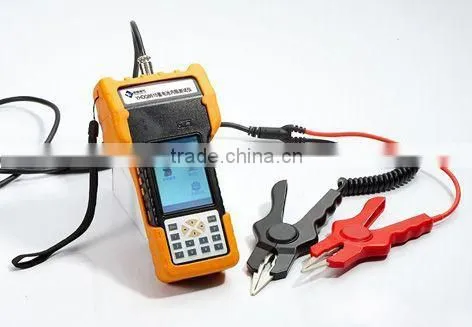

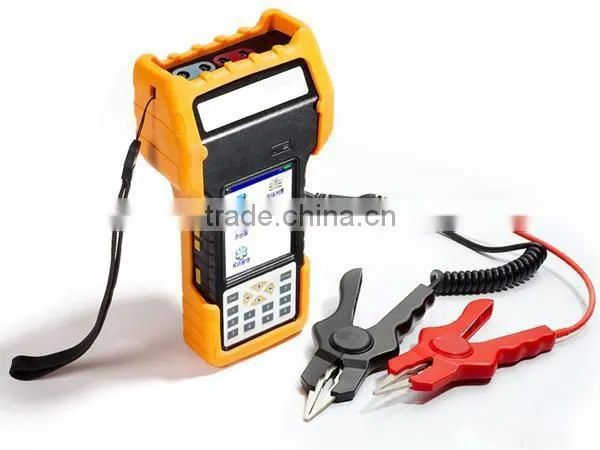

HZ-3915 Handheld Digital Multi-function Battery Tester,Battery Internal Resistance Tester |
The supplier of State Grid IEC156/ISO 9001:2008 |
HZ-3915 Handheld Digital Multi-function Battery Tester,Battery Internal Resistance Tester Usage
Application Area: railways, subways, communications, finance , military and other enterprises and institutions of maintenance and overhaul , battery manufacturers , electric vehicle production factory, toy factory battery quality test for batteries with group provides basis.
FUNCTION:
1. Measure the battery voltage and the internal resistance of the monomers
2. Can automatically estimate the battery capacity
3. Battery failure alarm
4. Can communicate with the host computer for data transfer
5. Data can be saved , query and delete various operations
6. PC- analysis software to upload data to a variety of operations , including data classification storage, query , and delete , etc.,
1. can generate the file ,
2. you can also back up the database , store an unlimited amount of data.
3. through a variety of charts for data analysis and display.
4. battery test reports can be automatically generated.
5. operation is simple and convenient.
HZ-3915 Handheld Digital Multi-function Battery Tester,Battery Internal Resistance Tester Details
Handheld Digital Multi-function Battery Tester,Battery Internal Resistance Tester Data
Item |
Technical Data |
Measurement Range |
Internal Resistance:0.0mΩ--100mΩ Valtage:0.000v--16v |
Minimum Measurement Resolution |
Internal Resistance:0.01 mΩ Valtage:1mV |
Measuring Accuracy |
Internal Resistance:±2.0%rdg±6dgt Valtage:±0.2%rdg±6dgt |
Display |
240*320 24bit 3.5 Inches TFT LCD + touch screen |
Dimension |
190mm*100mm*30mm |
Weight |
0.5KG |
Memory Capacity |
16M Byte FLASH |
Working Power |
Rechargeable lithium battery, full of working 5 ~ 6 hours |
External Power Source |
AC100~240V/DC8.4V-1A power adapter/charger |
Communication Interface |
USB interface (can plug USB) |
