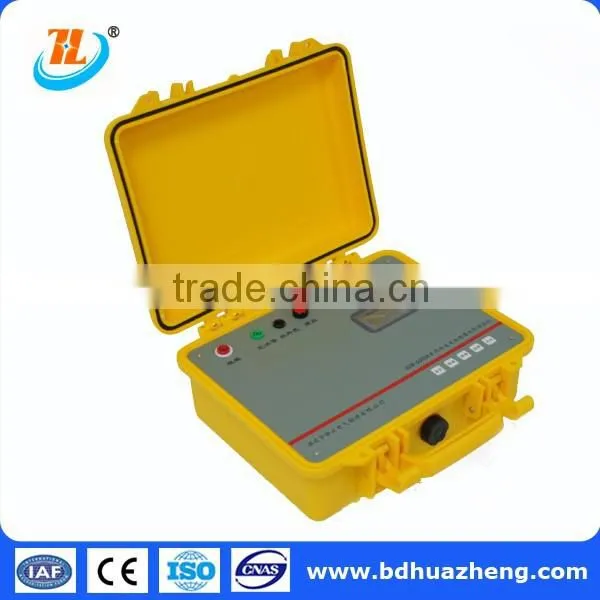

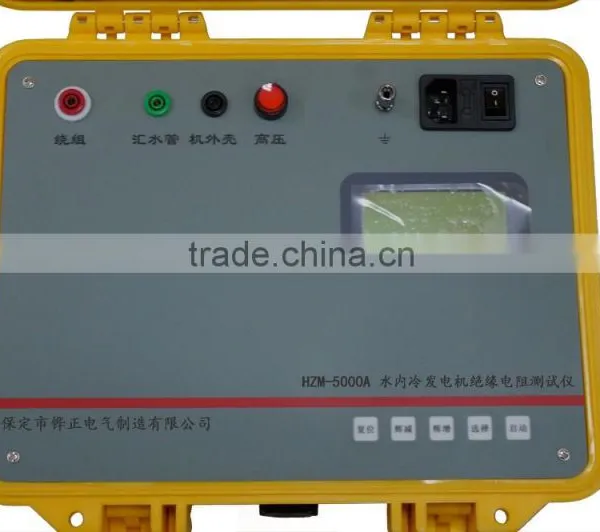

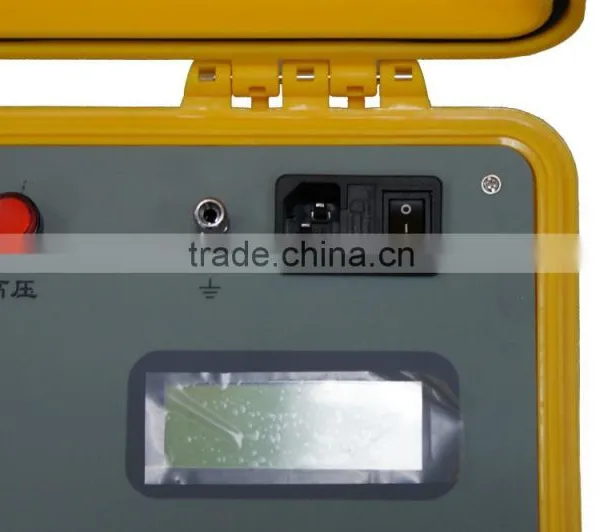

HZM-5000A Water-cooled generator megameter
We are the supplier of Chiese State Grid!
Water-cooled generator megameter introduction:
Check the insulation of electrical equipment, measure the insulation resistance is the most quick and easiest
basic method,Our company investigated a variety of internal water cooled generator insulation resistance
tester,designed HZM-5000A-type water cooled generator insulation tester.The instrument measuring principle novel, easy operation, high accuracy,
the whole entire integrated circuit, vibration, good stability, big output short circuit current,strong anti-interference ability under field environment to meet the requirements of the current test plants.The instrument has a chronograph, alarm and data storage and other functions, can easily measure the insulation resistance, absorption ratio, polarization index and other parameters.
Water-cooled generator megameter Feature:
1. English menu, easy to use.
2. Insulation resistance can be achieved, automatic measuring the absorption ratio, polarization index and
other parameters.
3. Every minute and 15 seconds to retain the data until the first 10 minutes, and automatic timing.
4. 10 sets of measurement data can be stored, in order to keep the analysis and archiving.
5. Full-featured, with testing, storage, alarm, access to and other functions.
6. Can discharge automatically after the end of the test
7. Big output short-circuit current, strong anti-jamming capability.
Water-cooled generator megameter Technical indicators
Test range: 5 MΩ ~ 10000 MΩ
Resolution: 0.01 MΩ
Accuracy: ± (10% · R + 2 words)
Voltage test: 2.5KV
Output short circuit current: ≥3mA
Display: dot matrix LCD display
Power supply: AC100~240V
Ambient temperature: 0 ~ 40 ℃
Humidity: <90% RH, non-condensing
Water-cooled generator megameter From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
