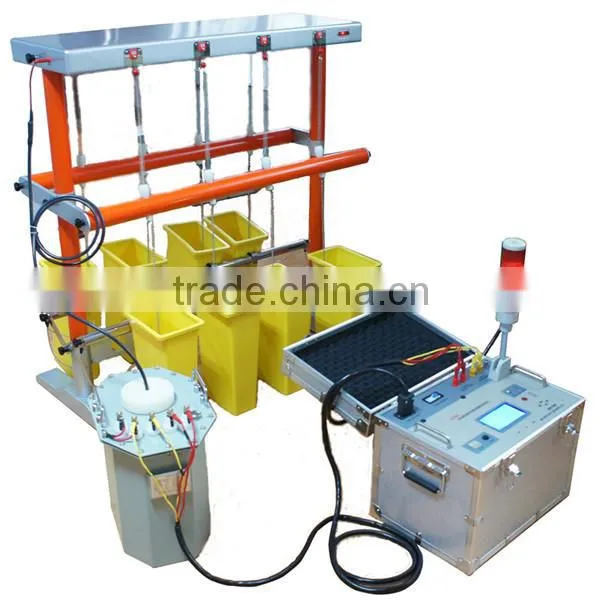

HZ Series Automatic Insulation Boots and Gloves Withstand Voltage Tester with Good Price
Functions and Features for Insulation Boots and Gloves Withstand Voltage Tester:
l Simultaneously 8 insulated boots or gloves trials were measured leakage current, can be extended to test 16 test items;
l Display large amount of information, also shows eight high-voltage leakage current, test voltage, current, time and time parameters;
l Measurable test voltage test transformer primary current and other parameters;
l Using infrared communications technology, the console with the high pressure system completely isolated to ensure the safety of the test;
l Automatic pressure test. After the trial began, the instrument automatically switch on to the national standard boost speed automatic boost, rising to a predetermined voltage starts timing and keep the test voltage, time to buck and off automatically, and display and save the test results;
l With a dedicated ground containers, easy to operate;
l Each sample possess high pressure breaking mechanism when any breakdown along the road from the high-pressure test will not affect the conduct trials;
l With overvoltage, overcurrent and other functions;
Technical Data for Insulation Boots and Gloves Withstand Voltage Tester:
Electrical insulation gloves test Parameters:
|
|
1. Rated output voltage: 50kV 2. Rated Capacity: 5kVA 3. The output voltage range:50.0kV(250V) 4. Voltage measurement error: <0.2%U±0.02% 5. Input Current Range : 25.0A 6. Current measurement error :<0.2%/ ± 0.02% 7. Leakage current range :25.0mA 8.Leakage current measurement error :<0.5%/2 ± words 9. Leakage current resolution :0.1mA 10. Digital timer :10~990S 11. Host size :430×310×370 12. Weight:28kg |
HUAZHENG ELECTRIC are engaged in manufacturing and supplying of electronic testing and measuring instruments, electric power fittings, and various electric transmission and distribution equipments, which are well-qualified with ISO 9001:2008 certificate. As a qualified SGCC supplier, we take every measure to ensure your complete satisfaction. Contact me freely for more details. We expect your cooperations for mutual benefits.
Contacts: Ms. Lucy Liu Mob: +86-15194785871 Skype ID: apple.liu200888
Ms. Lucy Liu
Mob: +86-15533255865
Trade Manager: cn1001744306
Skype ID: apple.liu200888
Wechat: liuyange5871
QQ: 2902200346
High Quality, Competitive Factory price, Good Aftersales Service. Look forward to your visit!
