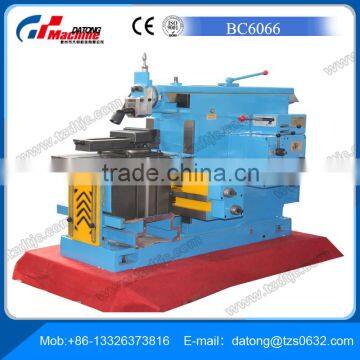

Shaping Machine B665
Features:
1.Shaping machine price can turning angle of the table with horizontal and lift moving
mechanism; for the planning the inclined plane, thereby expanding the scope of use.
2.Planer feed system uses a cam mechanism to adjust the feed rate. It is very convenient to change the feeding rate.
3.Shaping machine price equipped with cutting system overload safety agencies.
Once occur careless operation, external influences or cutting overload,it will shift to self-skid, and non-destructive the machine.
4.Gap between the ram and the bed rail, the speed gear and the main sliding guide surface, will be lubricated by the pump shot oil.
| Specifications | B6065A Shaper Machine | |
| Maximum Planing Length(mm) | 650 | |
| Ram Underside To Table The Maximum Distance(mm) | 370 | |
| Worktable Max. Moving Distance(Horizontal) | 600 | |
| Worktable Max.Moving Distance(Vertical) | 300 | |
| Leading Surface Of The Planer To Bed Out Of The Max.Distance(mm) | 550 | |
| The Max. Displacement Of The Ram | 170 | |
| Max.Turning Angle Of Worktable(No Vice) | ±90° | |
| Max. Turning Angle Of Worktable(Vice) | ±55° | |
| The Turret Maximum Vertical Travel | 110 | |
| Ram Reciprocating Frequency Per Minute | 32,50,80,125,times min | |
| The Ram Back And Forth A Tablefeed Amount | Wheeled Round A Tooth (Vertical) | 0.18 |
| Wheeled Round A Tooth (Horizontal) | 0.21 | |
| Wheel Rotation 4 Tooth(Vertical) | 0.73 | |
| Wheel Rotation 4 Tooth(Horizontal) | 0.84 | |
| Electric Motor | 2.8kw | |
| Carton Size | 2280*1450*1750 | |
| Net Weight/Gross Weight (kg) | 1850 | |

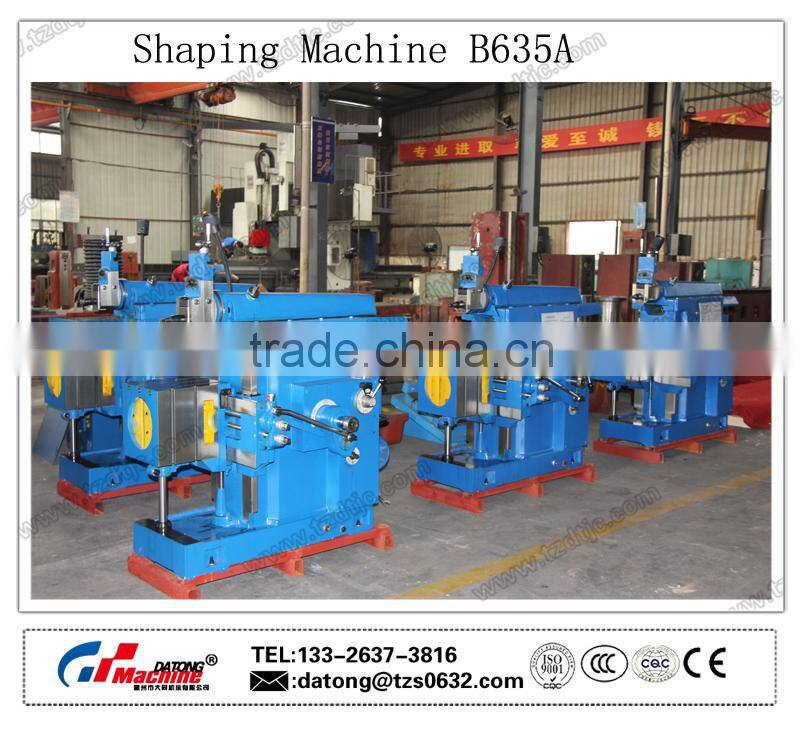

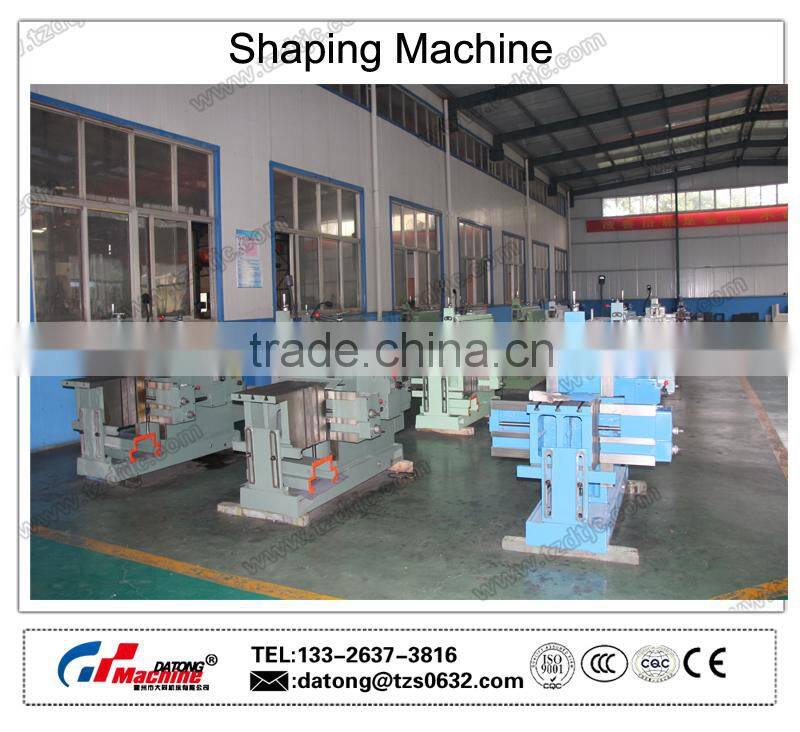

The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
