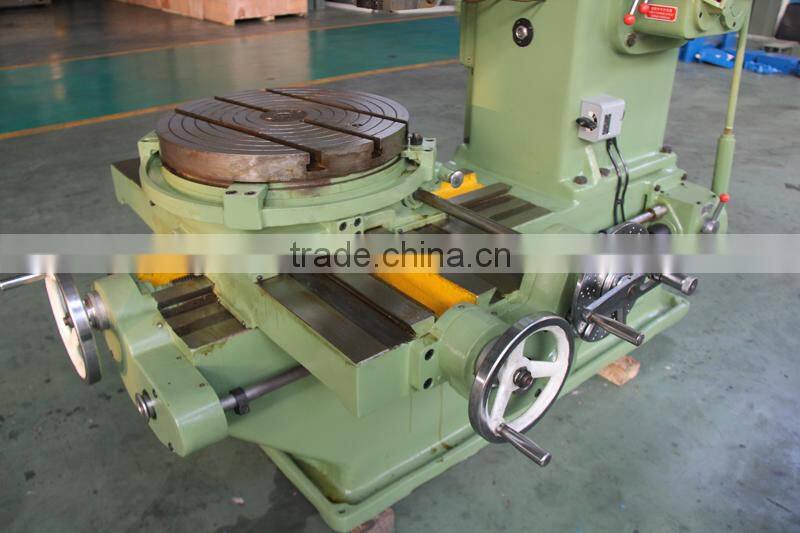

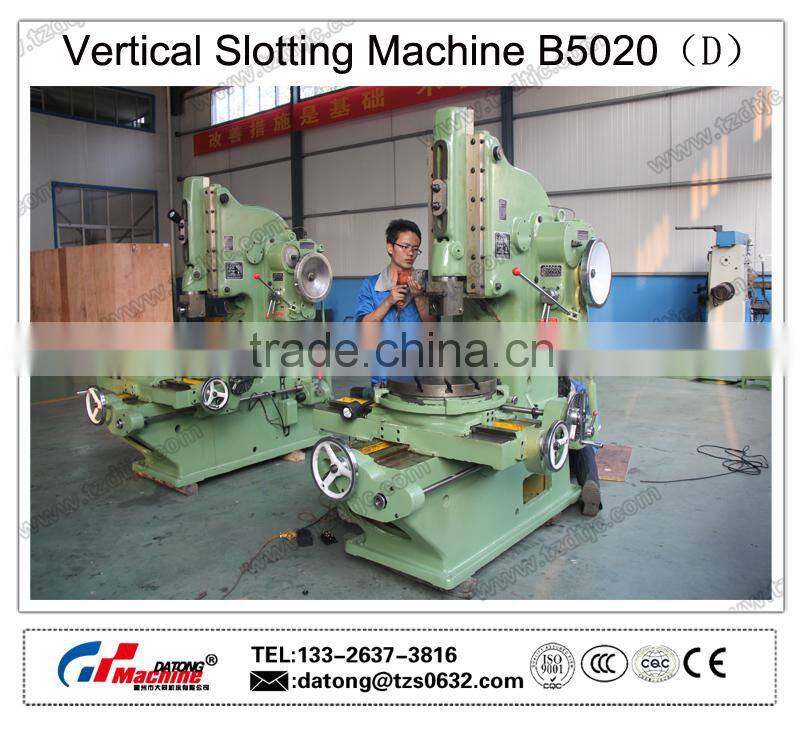

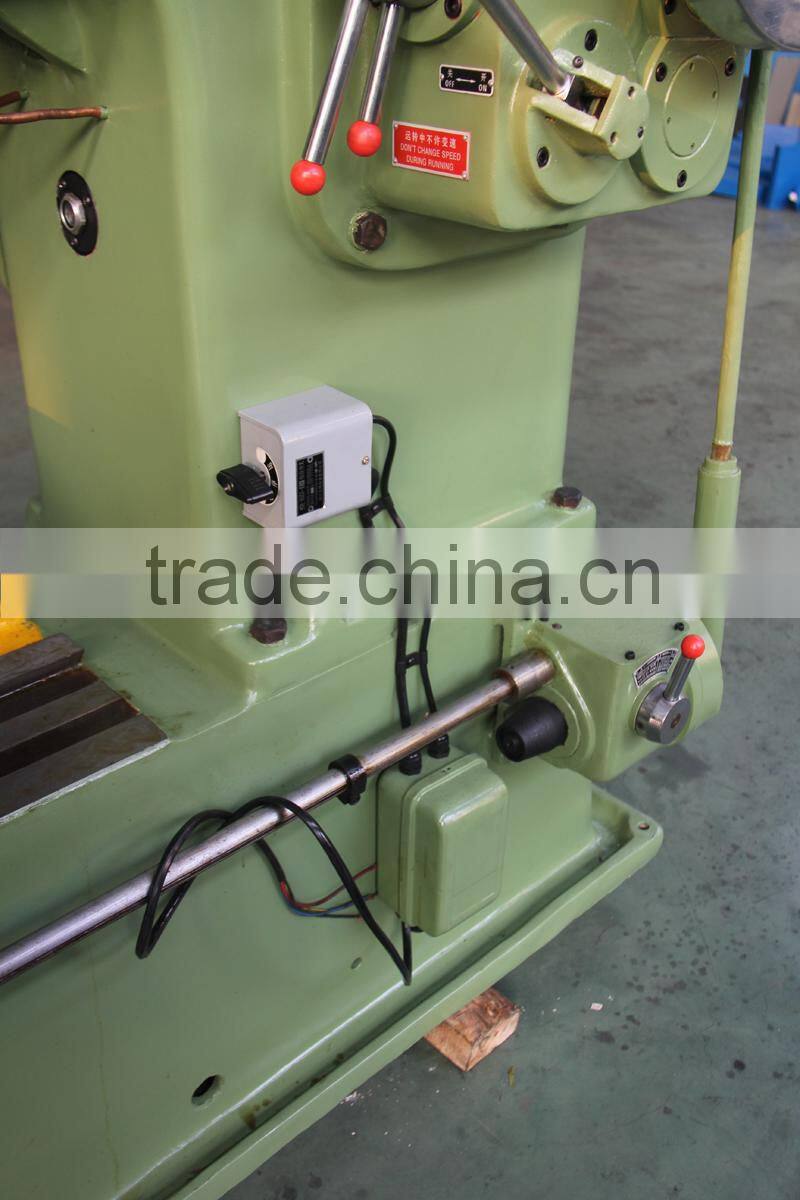

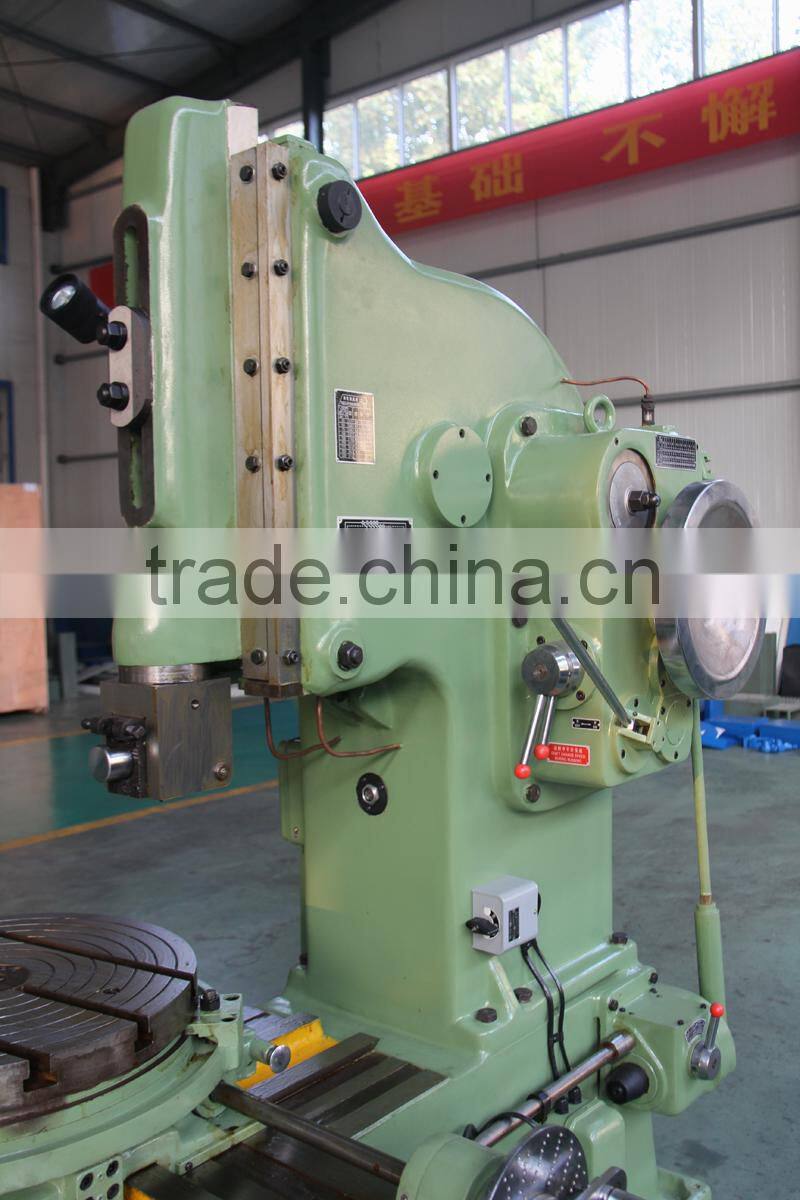

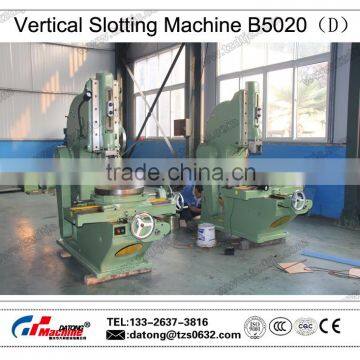

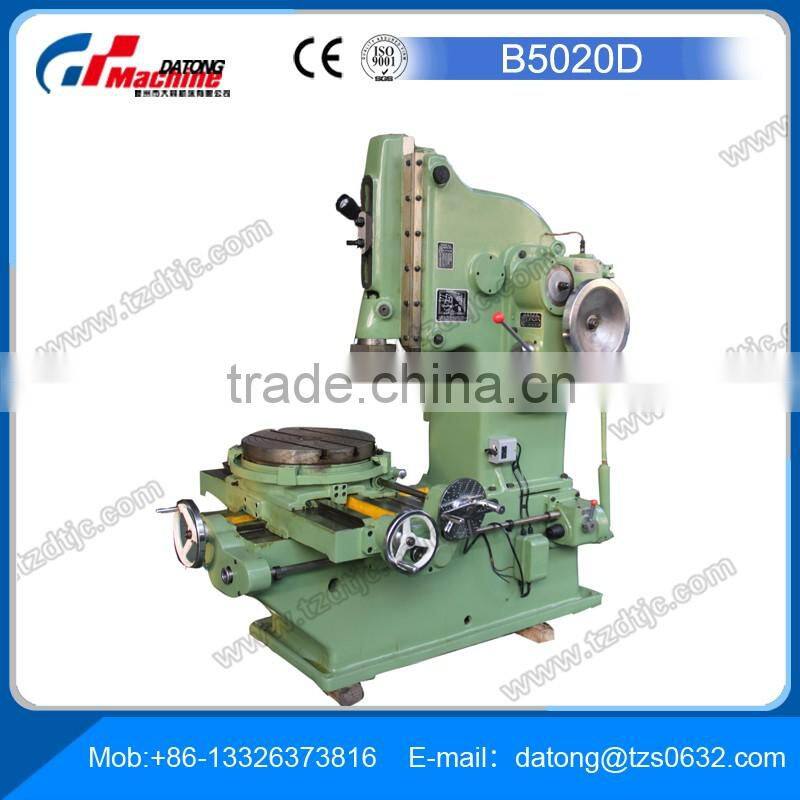

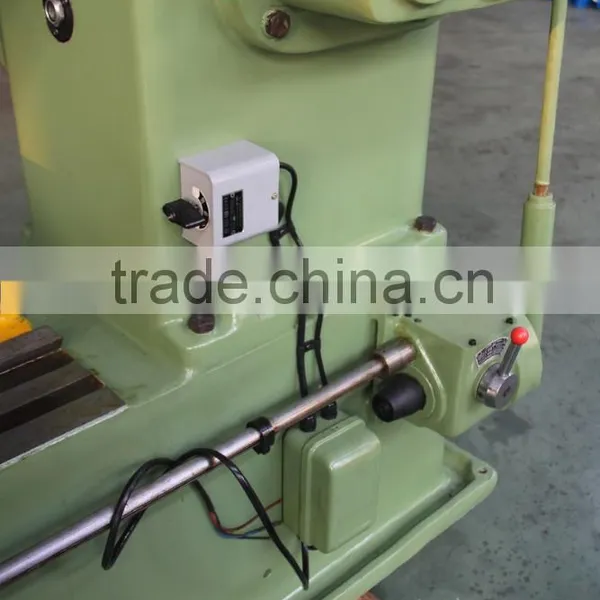

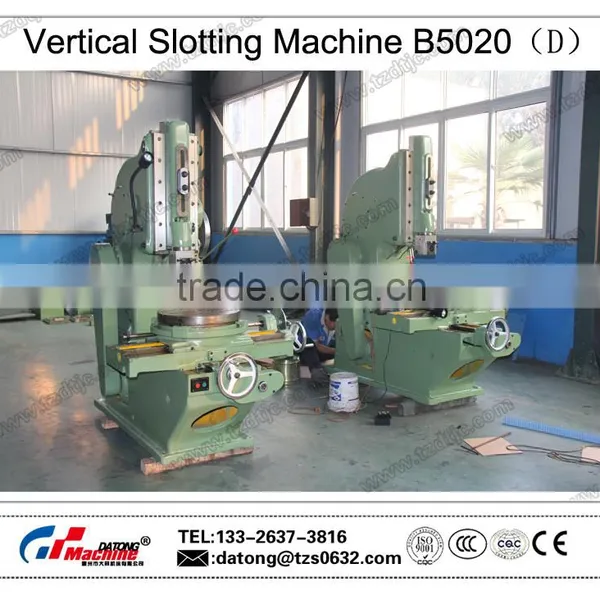

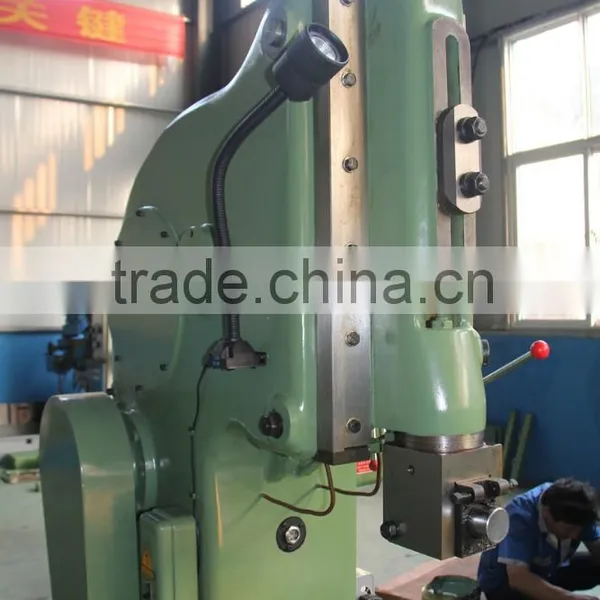

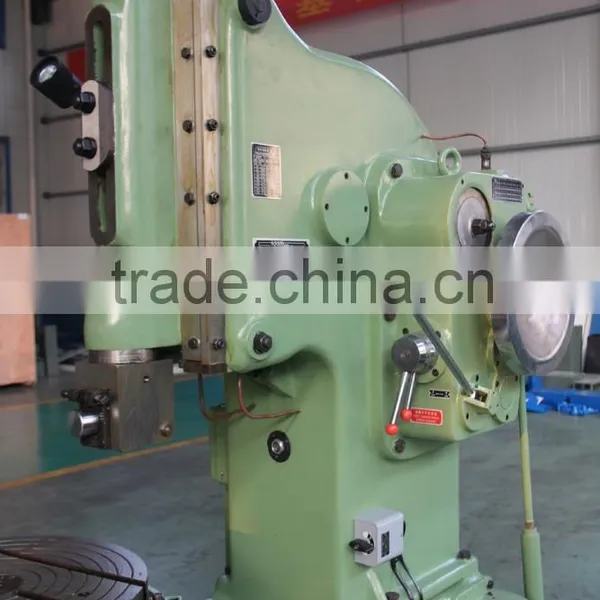

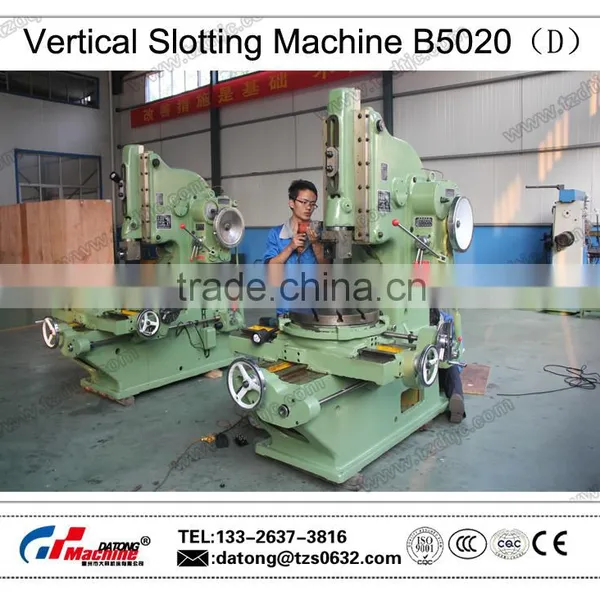

Vertical Slotting Machine B5020D
Features:
This machine is used to process splines, formed surfaces, for single or small batch production workshop is the most suitable for.
Rotating mechanism is the main variable crank gear rotary motion into the reciprocatingmotion of the ram, the table can be vertical, horizontal and rotary, automatic and manual feed, can realize the fast moving working table, in case of failure will automatically stop feeding.
Standardization, universalization, serialization, high degree of automation, reasonable layout, compact structure, harmony. Beautiful appearance, convenient repair.
Specification:
Model | B5020D | B5032D |
Max .slotting length |
200mm | 320mm |
Max . dimensions of workpiece (Lx H) | 485x 200mm | 600x320mm |
Max.weight of workpiece | 400kg | 500kg |
Max . cutting force | 5500N | 7500N |
No.of ramistrdes per minutem r.p.m | 32,50,80,125 | 20,32,50,80 |
Vertical adjustment of ram | 230mm | 315mm |
Inclination of ram | 0-8° | 0-8° |
Distance between tool holding surface and column front | 485mm | 600mm |
Max. tool shank size(WxH) | 25x40mm | 25x40mm |
Table diameter | 500mm | 630mm |
Distance between table surface and low end of ram | 320mm | 490mm |
Max.lonitudinal travel of table | 400/450mm (power feeds/hand feeds) | 480/620mm (power feeds/hand feeds) |
Max .cross travel of table | 450/500mm (power feeds/hand feeds) | 480/560mm (power feeds/hand feeds) |
Max. rotary angle of table | ±360° | ±360° |
Range of table longitudinal and cross power feeds | 0.08-1.21mm | 0.08-1.21mm |
Range of table power feeds | 0.052-0.783 | 0.052-0.783 |
Power of main drive motor | 3kW | 4kW |
Rotating speed of main drive motor | 1430r.p.m | 960r.p.m |
Power of rapid drive motor | 0.75kW | 0.75kW |
Rotating speed of rapid drive motor | 910r.p.m | 910r.p.m |
Net weight of machine (approx) | 2200kg | 3500kg |
Overall dimensions (L x W x H) | 1916x1305 x 1995mm | 2180x1505x 2285mm |
Packing List | |||
No. | Item | Specs. | Qty |
1 | Machine | B5020D | 1 pc |
2 | inner hexagonal wrench | 5,6,8,10 | Each for 1 pc |
3 | Stay wrench | S17-19 S22-24 | 1 pc |
4 | Working lamp |
| Fix in the machine |
5 | belt |
| 1set 3 pcs |
6 | oil can |
| 1 pc |
7 | Power Distribution Cabinet |
| 1pc fix in the machine |
8 | User Manual |
| 1 |
9 | product certification |
| 1 |
10 | Packing list |
| 1 |
Optional accessories | |||
| Item Name | Usage | Price |
1 | three jaw chuck | A mechanical device used to clamp the work piece on machine tool. The use of uniform radial movement on the chuck body movable jaw, the machine tool accessories workpiece clamping and positioning. | Please advise the diameter you need. |
2 | Knife inserted rod | Mainly processing blind hole keyway, inner hole, inner six angle, and various nonstandard toothed spline teeth, etc.
| Please advise the size and quantity you need. |
