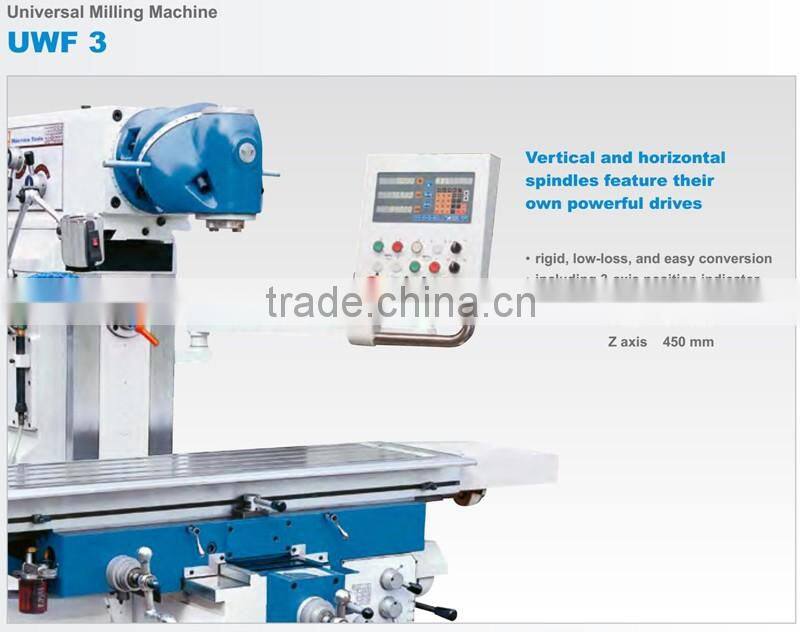

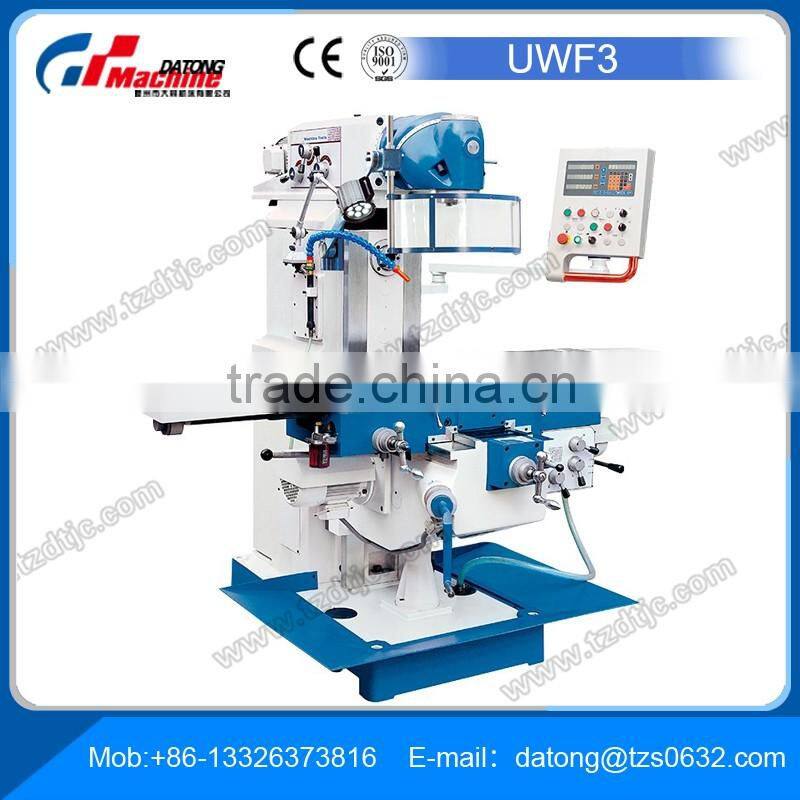

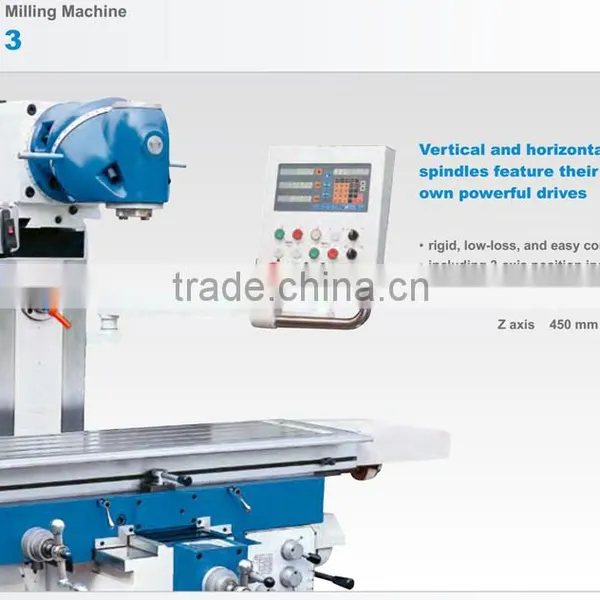

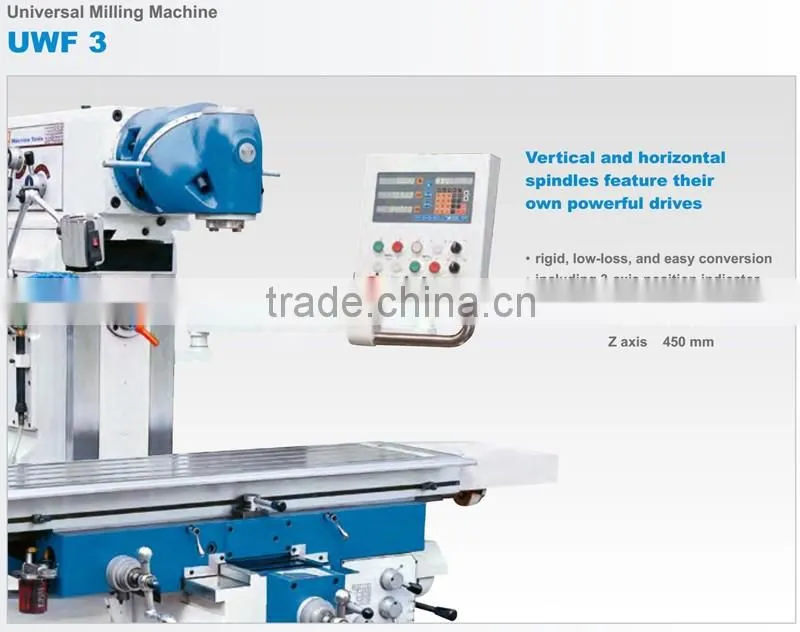

Universal Milling Machine UWF3 for sale

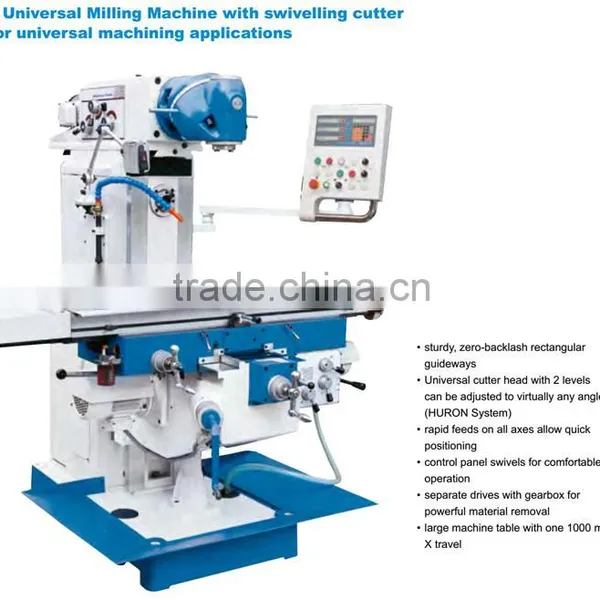

Feature:
1.Sturdy, zero-backlash rectangular guideways
2.Universal cutter head with 2 levels can be adjusted to virtually any angle (HURON System)
3.Rapid feeds on all axes allow quick positioning
4.Control panel swivels for comfortable operation
5.Separate drives with gearbox for powerful material removal
6.Large machine table with one 1000 mm X travel
Specification:
| Model | UWF 3 |
| Table set up area | 1320x320 mm |
| Table load capacity (max.) | 260 kg |
| Number of T-slots/width/spacing | 5/14/63mm |
| Travel X/Y/Z axis | 1000/245/450mm |
| Speed range(Horizontal Milling Spindle) | (12) 40 - 1300 rpm |
| Horizontal spindle-to-table surface distance | 20 - 470 mm |
| Spindle mount (horizontal) | SK 40 |
| Spindle speed (vertical) | (11) 45 - 1660 rpm |
| Spindle mount (vertical) | SK 40 |
| Throat | 200 - 760 mm |
| Spindle nose-to-table surface distance | 200 - 650 mm |
| Head swivel range | 360° |
| Rapid feed X/Y/Z axis | 1200/1200/400mm/min |
| Feed speed X/Y axis | (8) 20 - 360 mm/min |
| Motor rating horizontal spindle | 3KW |
| Motor rating vertical spindle | 3KW |
| Motor rating feed | 0,55 kW |
| Motor rating coolant pump | 0,09 kW |
| Overall dimensions (length x width x height) | 2020x1710x1994 mm |
| Weight | 2000kg |
Standard Equipment:

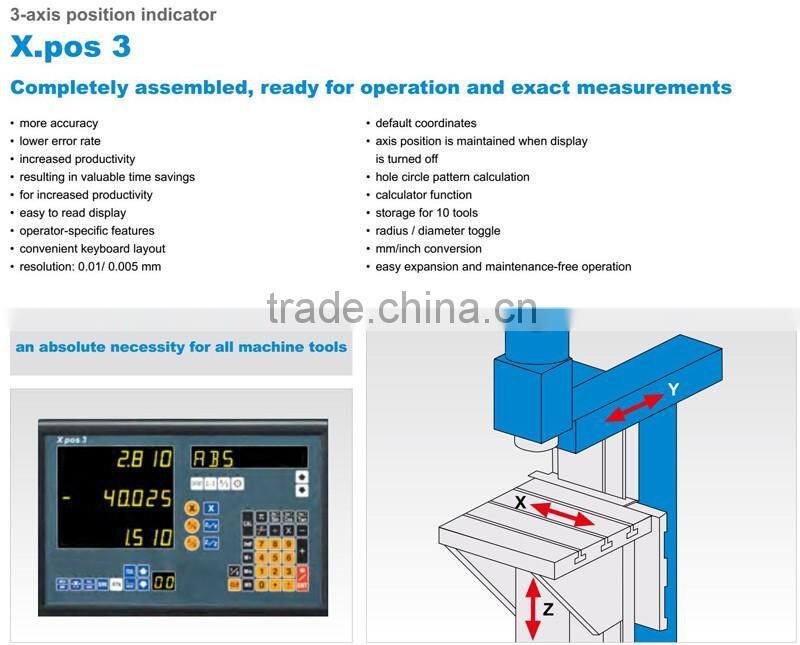

3-axis position indicator, central lubrication, coolant system, work lamp, collet chuck with collets (4,5,6,8,10,12,14,16 mm diam.), horizontal arbor Ø 27 mm and Ø 40 mm, outer arbor support for horizontal milling, short milling arbor 32 mm, operating tools, operator manual
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
