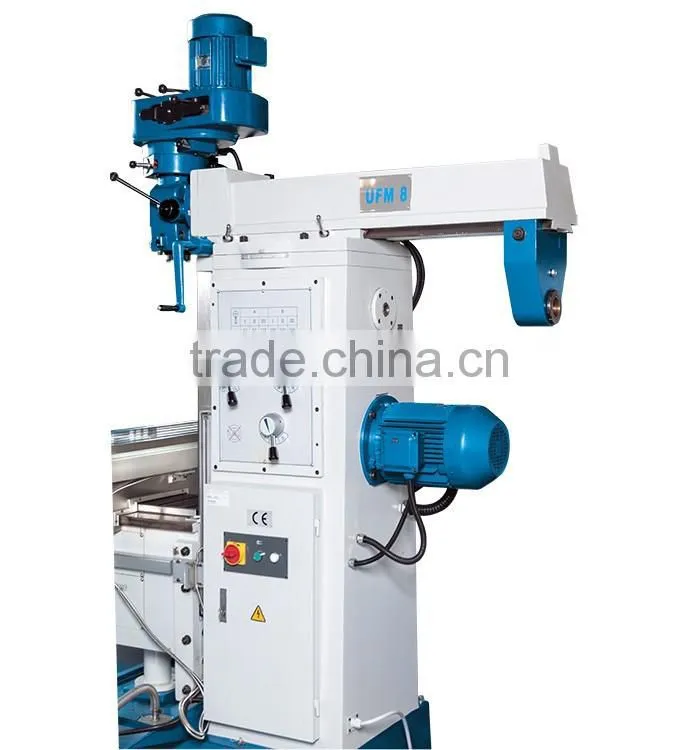

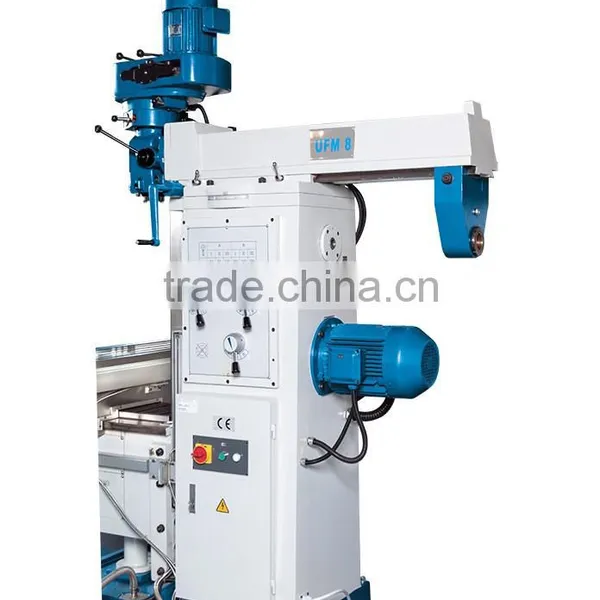

Universal Milling Machine UFM8 for sale
Feature:
1.Rigid frame design with wide guideways and travels
2.Hardened guideways ensure wear-resistance and long-term accuracy in all machining operations
3.Large work table
4.All gears are hardened and ground for quiet operation and long life
5.Swivelling vertical cutter head with low-maintenance belt drive, quiet and vibration-free
6.Automatic quill stroke featuring 3 steps and micrometer depth stop, plus automatic shut-off
7.Quill feed allows angular bores with tilted cutter head
8.Rigid boom and outer arbor support for secure and vibration-free guidance of milling arbors
9.High-torque servo-motor drives infinitely variable feeds and raid feeds on 3 axes
Specification:
| Model | UFM 8 |
| Table dimensions | 1600X320mm |
| Table load capacity (max.) | 300kg |
| Number of T-slots /width/spacing | 3/18/70mm |
| Travel X/Y/Z axis | 1300/290/450mm |
| Speed range(mill head) | (16) 65 - 4.660 rpm |
| Spindle mount | ISO 40 |
| Spindle center-to-table distance | 200 - 650 mm |
| Speed range(Horizontal Milling Spindle) | (12) 60 - 1.800 rpm |
| Spindle mount (horizontal) | ISO 50 |
| Spindle center-to-table distance | 20 - 470 mm |
| Rapid feed X/Y/Z axis | 1200/800/600mm/min |
| Feed speed X/Y axis | 30- 750 /20-500mm/min |
| Feed speed Z axis | 15-375mm/min |
| Motor rating horizontal spindle | 5.5KW |
| Motor rating vertical spindle | 3.7KW |
| Overall dimensions (length x width x height) | 2520x2100x2500 mm |
| Weight | 2300kg |
Standard Equipment:
3-axis position indicator, horizontal arbor Ø 27 mm and Ø 40 mm, reducing sleeve ISO 50 / MT4, draw bar, chip tray, coolant system, central lubrication, work lamp, foundation bolts M20 x 500 mm, operating tools, operator manua
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
