Universal Milling Machine VHF1.1 for sale
Feature:

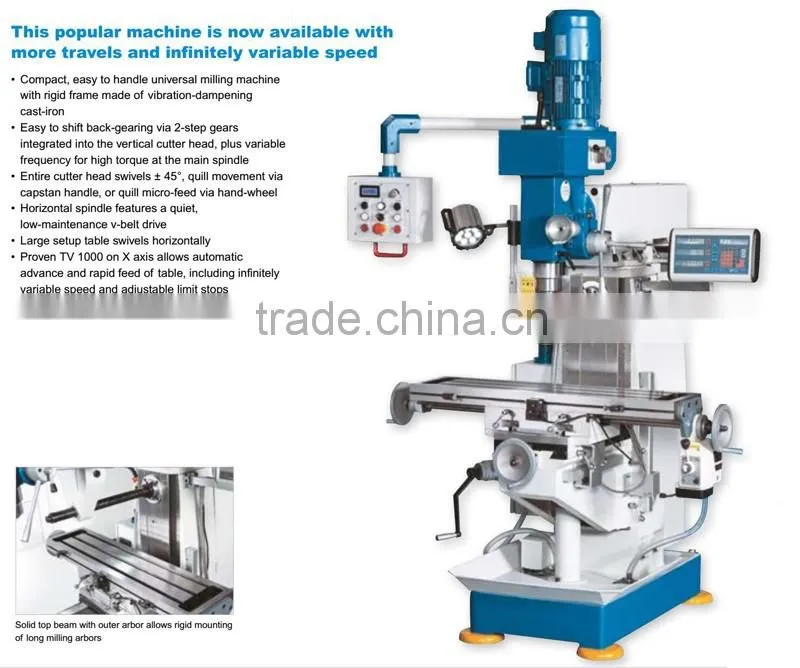

1.Compact, easy to handle universal milling machine with rigid frame made of vibration-dampening cast iron
2.Easy to shift back-gearing via 2-step gears integrated into the vertical cutter head, plus variable frequency for high torque at the main spindle

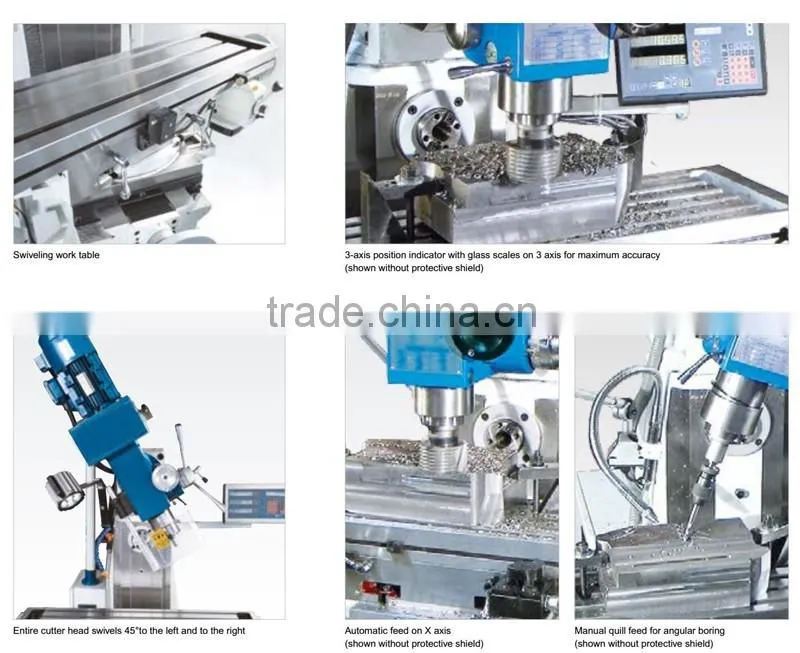

3.Entire cutter head swivels ± 45°, quill movement via capstan handle, or quill micro-feed via hand-wheel
4.Horizontal spindle features a quiet, low-maintenance v-belt drive
5.Large setup table swivels horizontally
6.Proven TV 1000 on X axis allows automatic advance and rapid feed of table, including infinitely variable speed and adjustable limit stops
7.Coolant system and chip tray are included
Specification:
| Model | VFH 1.1 |
| Drilling capacity | 30 mm |
| Milling diameter in steel (max.) | 25 mm |
| Table set up area | 1000x240 mm |
| Travel X/Y/Z axis | 600/220/320mm |
| Speed range(Horizontal Milling Spindle) | (9) 60 - 1350 rpm |
| Horizontal spindle-to-table surface distance | 0 - 300 mm |
| Spindle mount (horizontal) | ISO 50 |
| Spindle center-to-table distance | 20 - 470 mm |
| Spindle speed (vertical) | 100 - 2.000 rpm |
| Spindle mount (vertical) | SK 40 |
| Quill stroke | 120 mm |
| Throat | 200 - 700 mm |
| Spindle nose-to-table surface distance | 65 - 385 mm |
| Motor rating horizontal spindle | 2.2KW |
| Motor rating vertical spindle | 1.5KW |
| Overall dimensions (length x width x height) | 1.380x1.220x2.150 mm |
| Weight | 1000kg |
Standard Equipment:
3-axis position indicator, 2 long cutter arbors (Ø22,Ø27 mm), drill chuck 16 mm, reducing sleeve ISO 40 / MT3 and ISO 40 / MT2, coolant system, work lamp, operating tools
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
