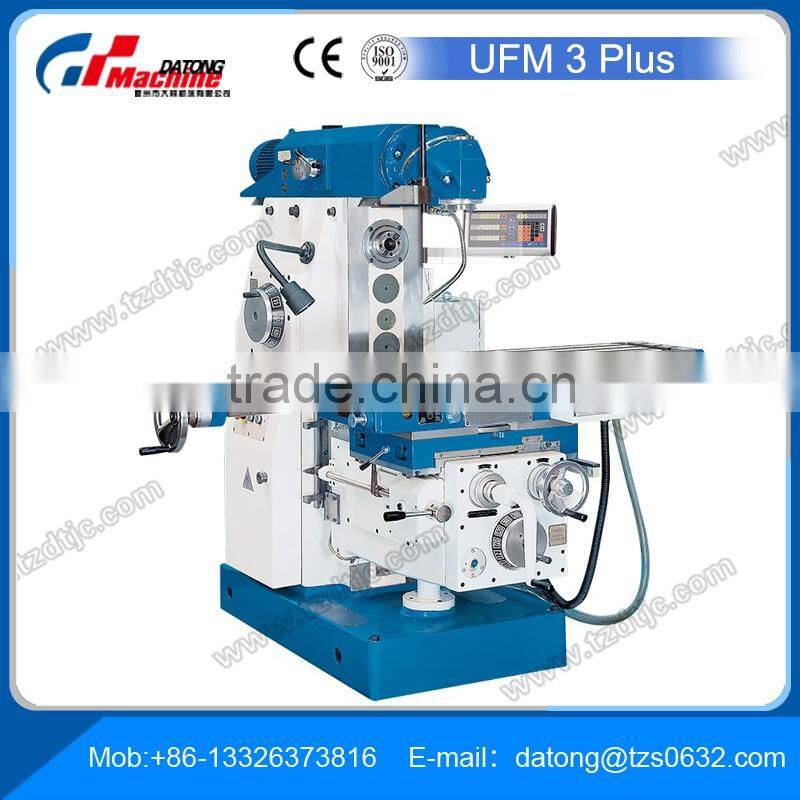

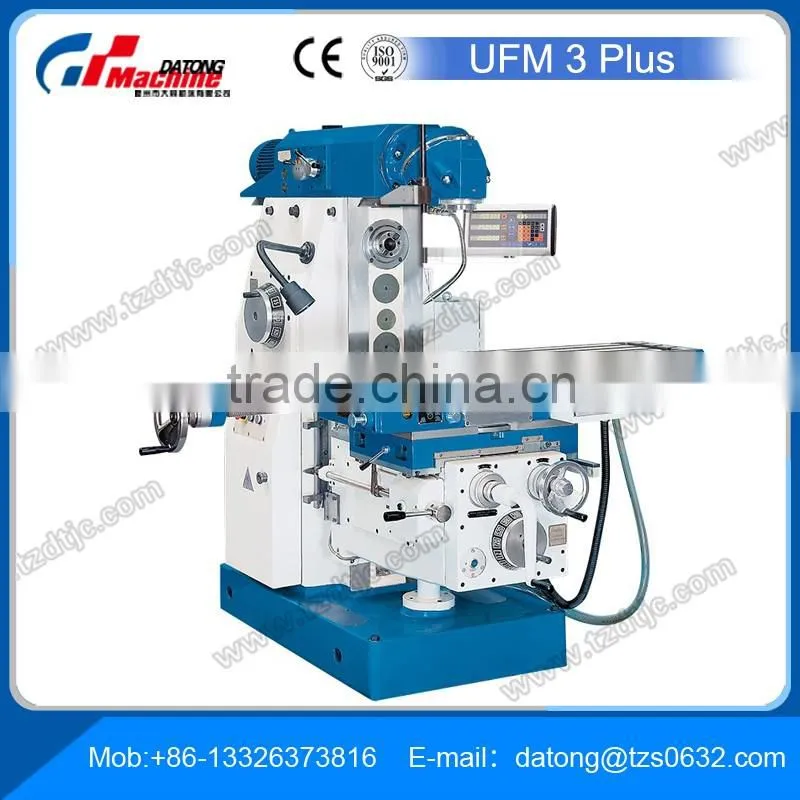

Universal Milling Machine UFM3 Plus for sale
Feature:
1.The machine frame features a box-shaped, heavy-ribbed construction. This design allows the machine to absorb all static and dynamic forces ensuring maximum rigidity.
2.Ground gears ensure very quiet operation

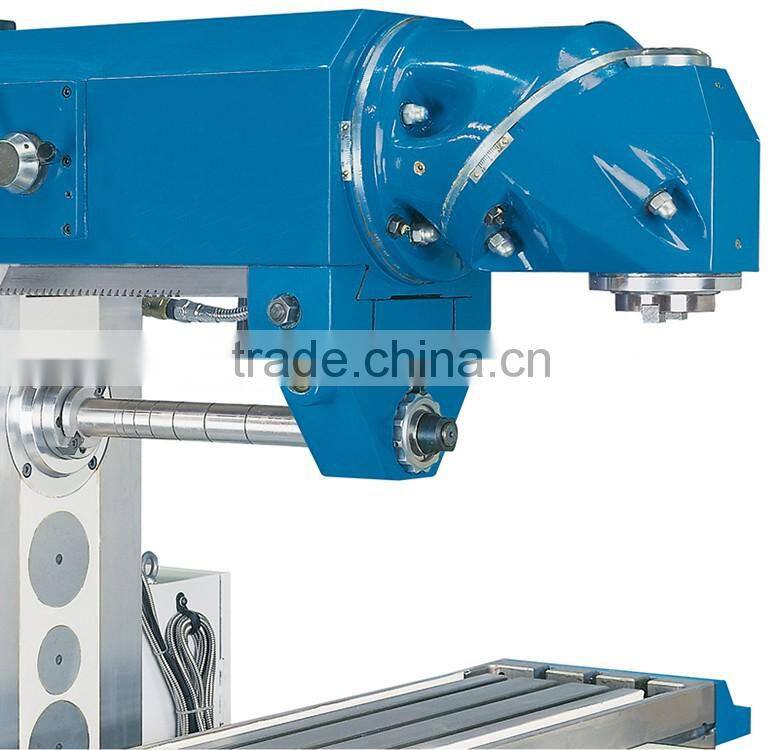

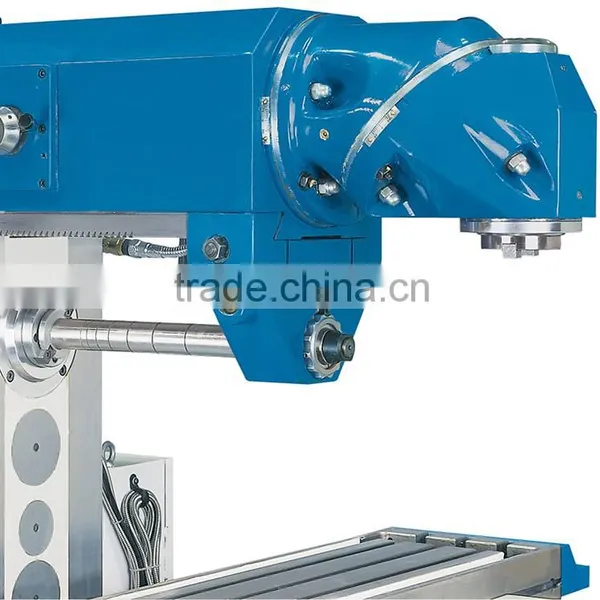

3.Cutter head swivels for horizontal, vertical and angular cutting
4.High intrinsic rigidity
5.Convenient lay out of all controls
6.Automatic feeds and rapid feeds on all 3 axes
7.Universal cutter head on 2 levels
8.Work table rotates ± 45°
9.Simultaneous machining of a workpiece with horizontal and vertical spindle is possible
Specification:
| Model | UFM 3Plus |
| Table dimensions | 1500X300mm |
| Table load capacity (max.) | 250kg |
| Number of T-slots /width/spacing | 3/18/70mm |
| Travel X/Y/Z axis | 780/235/400mm |
| Speed range(Vertical mill head) | (8) 67 - 1.600 rpm |
| Spindle mount | SK 40 |
| Speed range(Horizontal Milling Spindle) | (12) 35 - 1.600 rpm |
| Spindle mount (horizontal) | SK 40 |
| Spindle center-to-table distance | 20 - 420 mm |
| Rapid feed X/Y/Z axis | 2100/2100/700mm/min |
| Feed speed X/Y axis | (14)70- 720 mm/min |
| Feed speed Z axis | (14)4-240mm/min |
| Motor rating main drive | 4KW |
| Overall dimensions (length x width x height) | 1.695x1.535x1.728 mm |
| Weight | 2850kg |
Standard Equipment:
3-axis position indicator, 1 each horizontal arbor (Ø22,Ø27 mm), 2 long cutter arbors (Ø22,Ø27 mm), collets (Ø 5, 6, 8, 10, 12, 14 mm), reducing sleeves (MT2, MT3), draw bar, 1 set of wrenches, collet tool, foundation bolts M20 x 500 mm, operator manual
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
