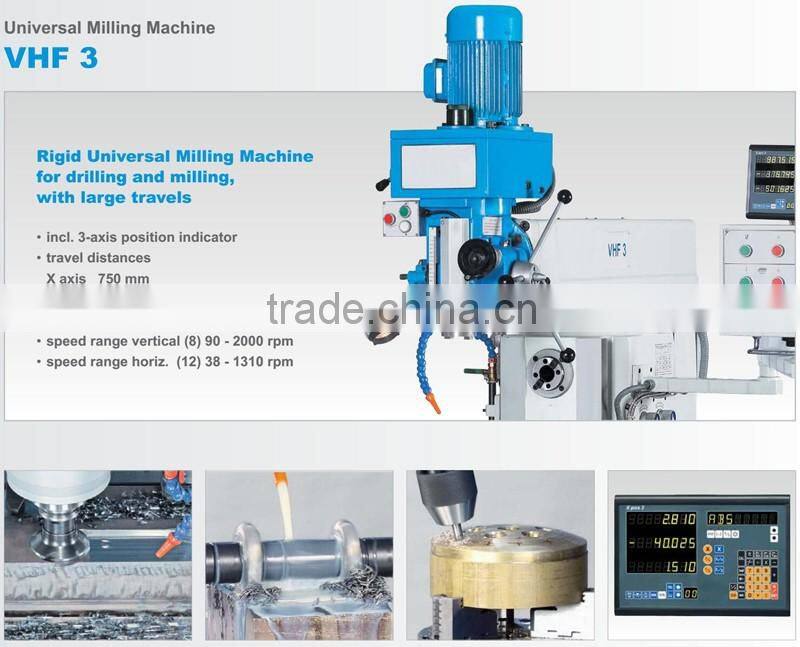

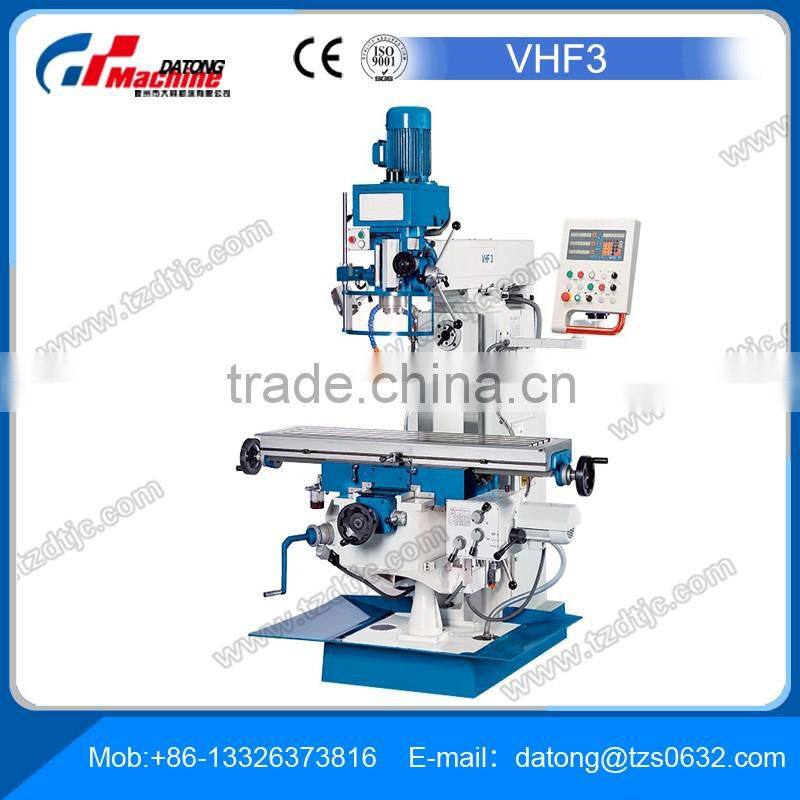

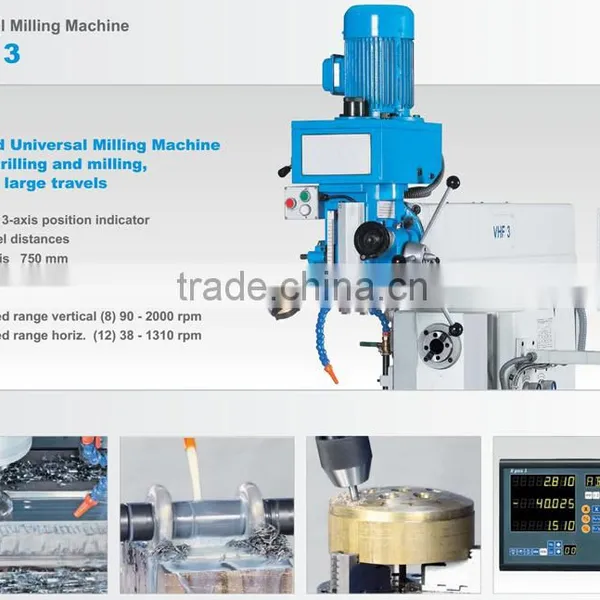

Universal Milling Machine VHF3 for sale

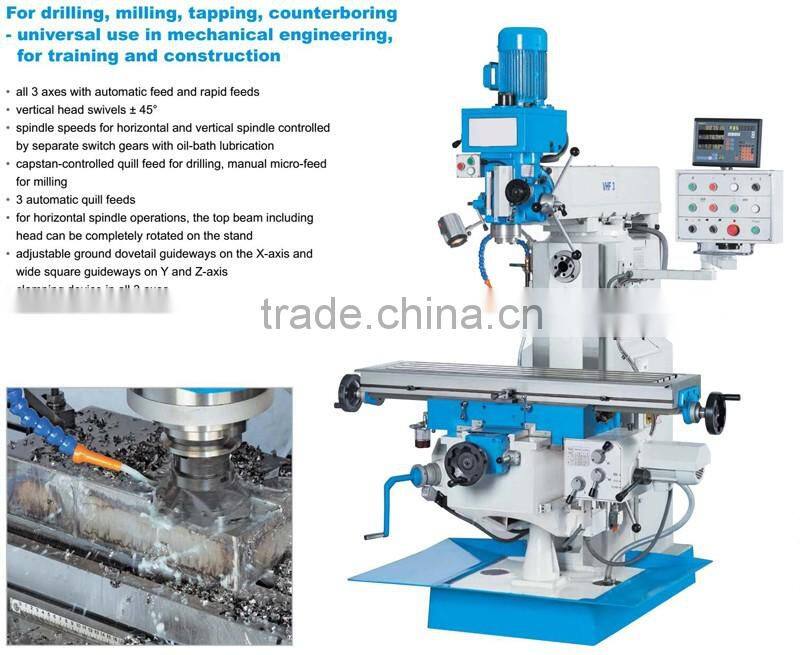

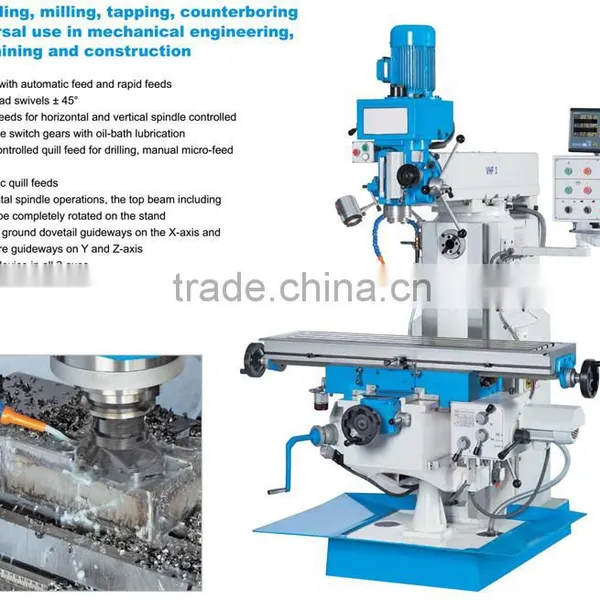

Feature:
1.All 3 axes with automatic feed and rapid feeds
2.Vertical head swivels ± 45°
3.Spindle speeds for horizontal and vertical spindle controlled by separate switch gears with oil-bath lubrication
4.Capstan-controlled quill feed for drilling, manual micro-feed for milling
5.3 automatic quill feeds
6.For horizontal spindle operations, the top beam including head can be completely rotated on the stand
7.Adjustable ground dovetail guideways on the X-axis and wide square guideways on Y and Z-axis
8.Clamping device in all 3 axes
9.Adjustable stops for drilling depth and table adjustment
Specification:
| Model | VHF 3 |
| Table set up area | 1320x320 mm |
| Table load capacity (max.) | 300 kg |
| Number of T-slots/width/spacing | 5/14/50mm |
| Travel X/Y/Z axis | 750/245/430mm |
| Speed range(Horizontal Milling Spindle) | (12) 38 - 1310 rpm |
| Horizontal spindle-to-table surface distance | 50 - 450 mm |
| Spindle mount (horizontal) | SK 40 |
| Spindle speed (vertical) | (8) 90 - 2.000 rpm |
| Spindle mount (vertical) | SK 40 |
| Quill stroke | 120 mm |
| Throat | 200 - 540 mm |
| Spindle nose-to-table surface distance | 140 - 540 mm |
| Head swivel range | ± 45° |
| Rapid feed X/Y/Z axis | 1024/1024/670mm/min |
| Feed speed X/Y axis | (8) 20 - 360 mm/min |
| Quill feeds | (3) 0,08; 0,15; 0,25 mm/R |
| Motor rating horizontal spindle | 2.2KW |
| Motor rating vertical spindle | 2.2KW |
| Motor rating feed | 0,55 kW |
| Motor rating coolant pump | 0,09 kW |
| Overall dimensions (length x width x height) | 1710x1720x2330 mm |
| Weight | 1800kg |
Standard Equipment:

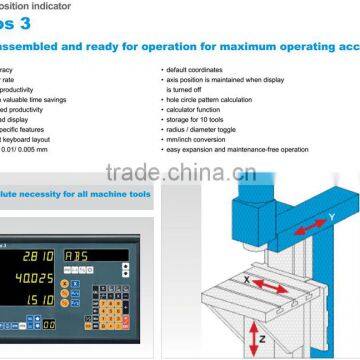

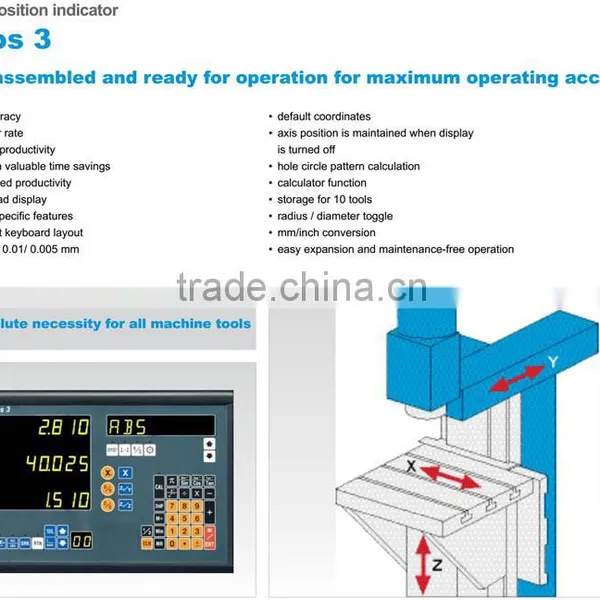

3-axis position indicator, drill chuck 16 mm, ISO 40 milling chuck, collet chuck ISO 40 with collets Ø 4,5,6,8,10,12,14,16 mm, reducing sleeve ISO 40 / MT3 and ISO 40 / MT2, coolant system, chip tray, work lamp, operating tools, operator manual
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
