Q11D-13(2500mm) Mechanical Cutting Machine and Mechanical Shearing Machine

Q11D-13(2500mm) Mechanical Cutting Machine and Mechanical Shearing Machine photo-1
Q11D-13(2500mm) Mechanical Cutting Machine and Mechanical Shearing Machine photo-2
Q11D-13(2500mm) Mechanical Cutting Machine and Mechanical Shearing Machine photo-3
Q11D-13(2500mm) Mechanical Cutting Machine and Mechanical Shearing Machine photo-4
Q11D-13(2500mm) Mechanical Cutting Machine and Mechanical Shearing Machine photo-5
US$ 2,000 - 2,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
DATONG
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao.tianjian.shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name DATONG
Model Number Q11D-13*2500
Voltage 380V
Rated Power 15kw
Dimension(L*W*H) 3600*2000*2500mm
Weight 10300kg
Certification CE & ISO9001
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Q11D-13(2500mm) Mechanical Cutting Machine and Mechanical Shearing Machine

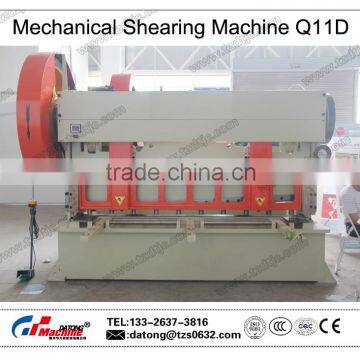

Mechanical Shearing Machine  Q11D-13(2500mm)

Features:

1. With a blade gap adjustment mechanism fast,reeduce labor intensity, high efficiency.

2. Transmission centralized lubrication,  self-lubricating bearings to increase the lubrication cycle, long service life.

3. High reliability and resistant to pressure, anti-wear.



Specifications:

Model Q11D-13×2500 Q11D-16×2500
Max. Shearing thickness (mm)1316
Max. Shearing width (mm)25002500
Sheet material strength (Mpa)Less than or equal to 500Less than or equal to500
Shearing angle ( º )3 º 3 º
No. Of stroke (min-1)2828
Flywheel speed (r/min)970970
Distance between columns (mm)25402540
Back gauge (mm)600600
Length of blades (mm)25402540
Motor power (kw)1518.5
Dimension (mm)3600*2000*25003600*2000*2500
Weight (kg)1030010800

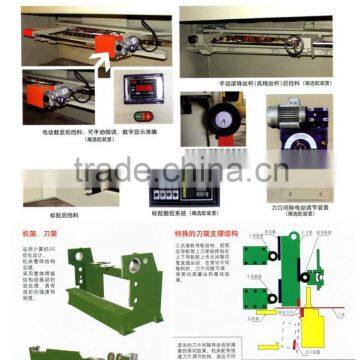

Detailed Images

 Q11D-13(2500mm) Mechanical Cutting Machine and Mechanical Shearing MachineQ11D-13(2500mm) Mechanical Cutting Machine and Mechanical Shearing Machine

Packaging & Shipping

Q11D-13(2500mm) Mechanical Cutting Machine and Mechanical Shearing MachineQ11D-13(2500mm) Mechanical Cutting Machine and Mechanical Shearing Machine
