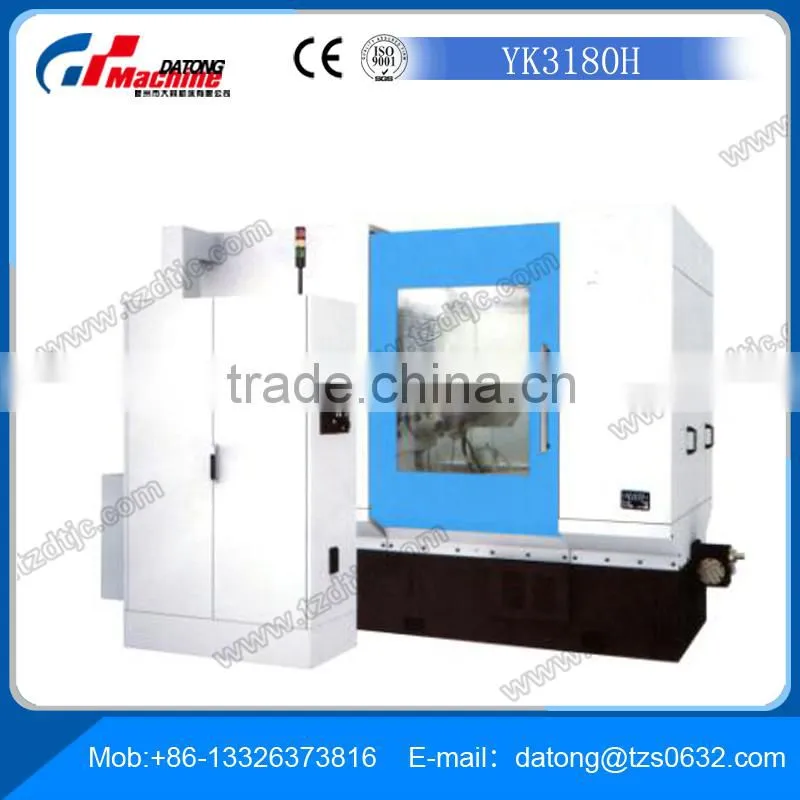

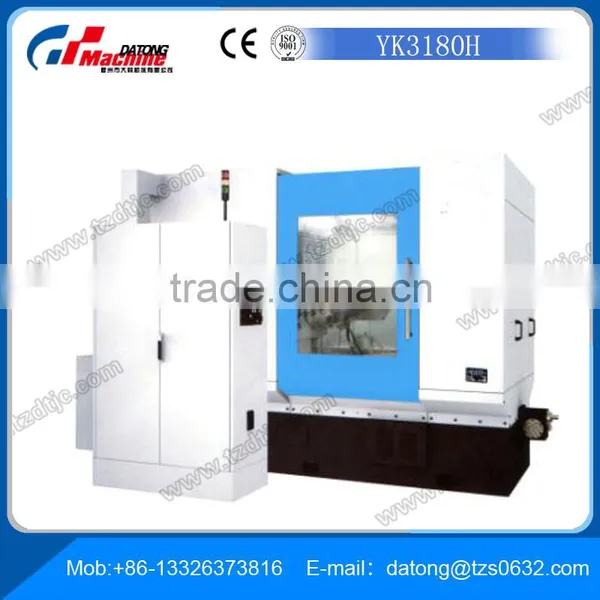

Yk3180h cnc gear hobbing machine has following features:
1. It is applicable to produce or process spur gear, helical gear, worm gear and sprocket in batch or piece unit.
2. This machine is provided with the characteristic of excellent steel resistance, high intension, high precision, easy-operating, adjusting and maintaining etc.
3. It can process gear with down milling and up milling method in axial or radial way.
4. According to the requirements of customer, this machine can be equipped with Siemens CNC System to process crown gear and Small Taper Gear, and it can also heighten or lengthen machine tool.
5. Economic type, with 2-axes;
Specifications |
Unit |
yk3180 cnc gear hobbing machine |
Maximum workpiece diameter when processing straight tooth gear |
mm |
with rear column: 550 without rear column: 800 |
Max.spiral angle |
|
45° |
Maximum hobbing modulus |
mm |
10(8) |
Max.hob diameter and length |
mm |
180×180 |
Taper bore of the spindle |
|
Morse 5 |
Diameter of work table |
mm |
650 |
Pore diameter of work table |
mm |
80 |
Distance between hob axis and worktable surface |
mm |
Min.235, Max.585 |
Center distance between hob and worktable |
mm |
Min.50, Max.550 |
Distance between end face fo bearing bore of tailstock and worktable surface |
mm |
Min.400, Max.600 |
Hob shifting travel |
mm |
50(manual) |
Spindle speed/steps |
r/min |
40~200/8 |
able speed |
r/min |
5.3 |
Main motor power |
kW |
5.5 ( 1500r/min) |
Z axis servo motor |
r/m |
1FK7-103 2000 |
X axis servo motor |
r/m |
1FK7-103 2000 |
Power and rated speed of motor of hydraulic oil pump |
kW |
1.1 (940 r/min) |
Power and rated speed of rapid motor |
kW |
1.1( 1500r/min) |
Power and rated speed of rapid motor of work table |
kW |
0.55( 1500r/min) |
Power and rated speed of motor of cooling pump |
kW |
0.25 |
Machine overall dimension (length×width×height) |
mm |
2750×1490×1870 |
Machine weight(about) |
kg |
5800 |
CNC systerm |
|
Siemens 828D |
Electrical elements |
|
Domestic top brand, China |
Oil seal |
|
Import world top brand |
Bearing |
|
ZWZ China |
Gear |
|
Made in China |
Hydraulic parts |
|
Domestic top brand, China |
Cast iron |
|
From China, HT200 |
Spindle |
|
Domestic top brand. |
|
Made by German turbo-processing machine |
|
worm |
|
Made in China |
Performance and features of this machine
YK3180H cnc gear hobbing machine is two axises CNC gear hobbing machine. take advantage of two servo motors to realize two straight line motion.CNC axis is X axis(radial motion),z axis (vertical feeding motion).Produce spur gear, helical gears, small taper gear, crown gear, chain wheel,cylindrical spline tooth,taper spline tooth and radial feeding cutting worm wheel etc with generating method of gear cutter
This machine tool with wide bed, has features of good rigidity, high strength and precision, easy operation, adjustment and maintenance etc. Indexing worm gear of work table adopts precise worm wheel machine tool and special worm rod grinding bed for processing, which ensured high index precision. The worm wheel is made of high-quality copper(ZQSn10-1) which enhanced capacity of abrasion resistance.
The machine adopts Siemens 828D CNC system.
One servo motor controls worktable radial feeding(axis),another servo motor controls cutter post sliding axial feeding(Zaxis).main electrical hydraulic elements adopts world and domestic top brand. X axis and Z axis adopts precision preload ball screw arbor deputy-driven.
The casting parts of machine tool are processed with precipitation heat treatment, which eliminated casting internal stress and avoided machine tool deformation. Machine bed and column guideway is processed with grinding treatment after quenching, which raised the hardness of guideway surface and enhanced capacity of abrasion resistance.
The adoption of drive gear for grinding process, driving chain is short,high precision,which ensures the transmission accuracy.
Safety protection device of this machine meets the requirements of safety protection
Technology of JB110139-1999 type gear hobbing machine.
a. Precision of this machine tool
The precision of this machine tool is in accordance with national standard GB/T8064-1998.
b. Processing accuracy of production
Accuracy of gear hobbing reaches to 7 class of international standards
c. Attached technical documents
Operation manual, packing list, certificate of compliance, assembly drawing
Accessories
Others: 6 anchor bolts, 6 adjusting wedges, 53 change gears
